Maxxus CX 4.3F User Manual

D04
D05
A02
A01
8

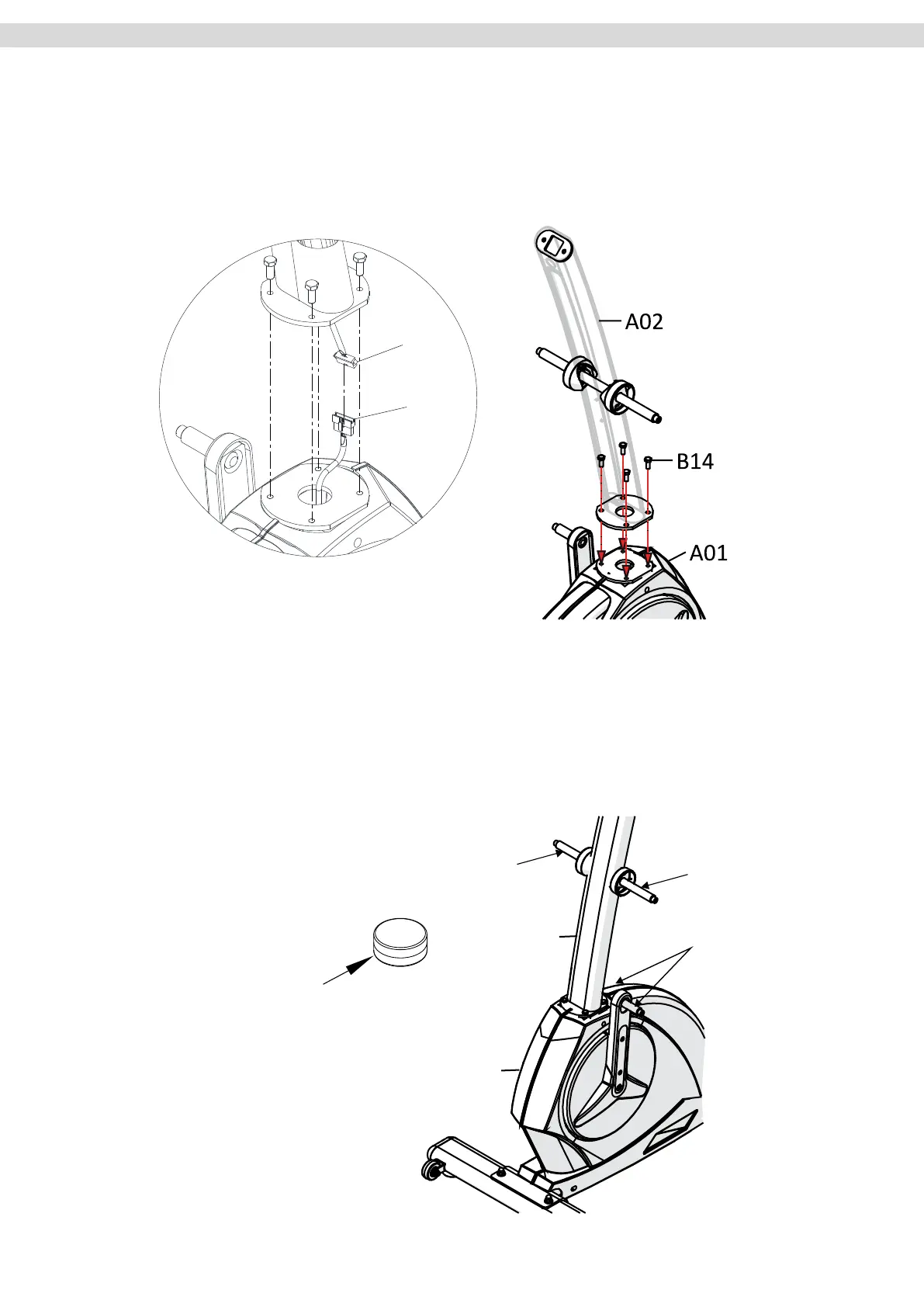

Step 4: Assembly of the Handlebar Stem
Connect the cable (D04) protruding down from the handlebar stem (A02) to the cable (D05) protruding from the
base frame (A01).
Attach the handlebar stem (A02) to the mount on the base frame (A01) with four hexagon head screws (B14).
CAUTION:
When doing this be careful not to crush or damage the cables.
Step 5: Greasing the Axles
Before proceeding with the assembly, grease the four axles marked in the drawing on the handlebar stem (A02)
with the lubricant supplied or with another commercially available multipurpose grease.
Assembly
Axle
Axle
Lubricant
Axle
