A02

A03

B32

B33

ENG

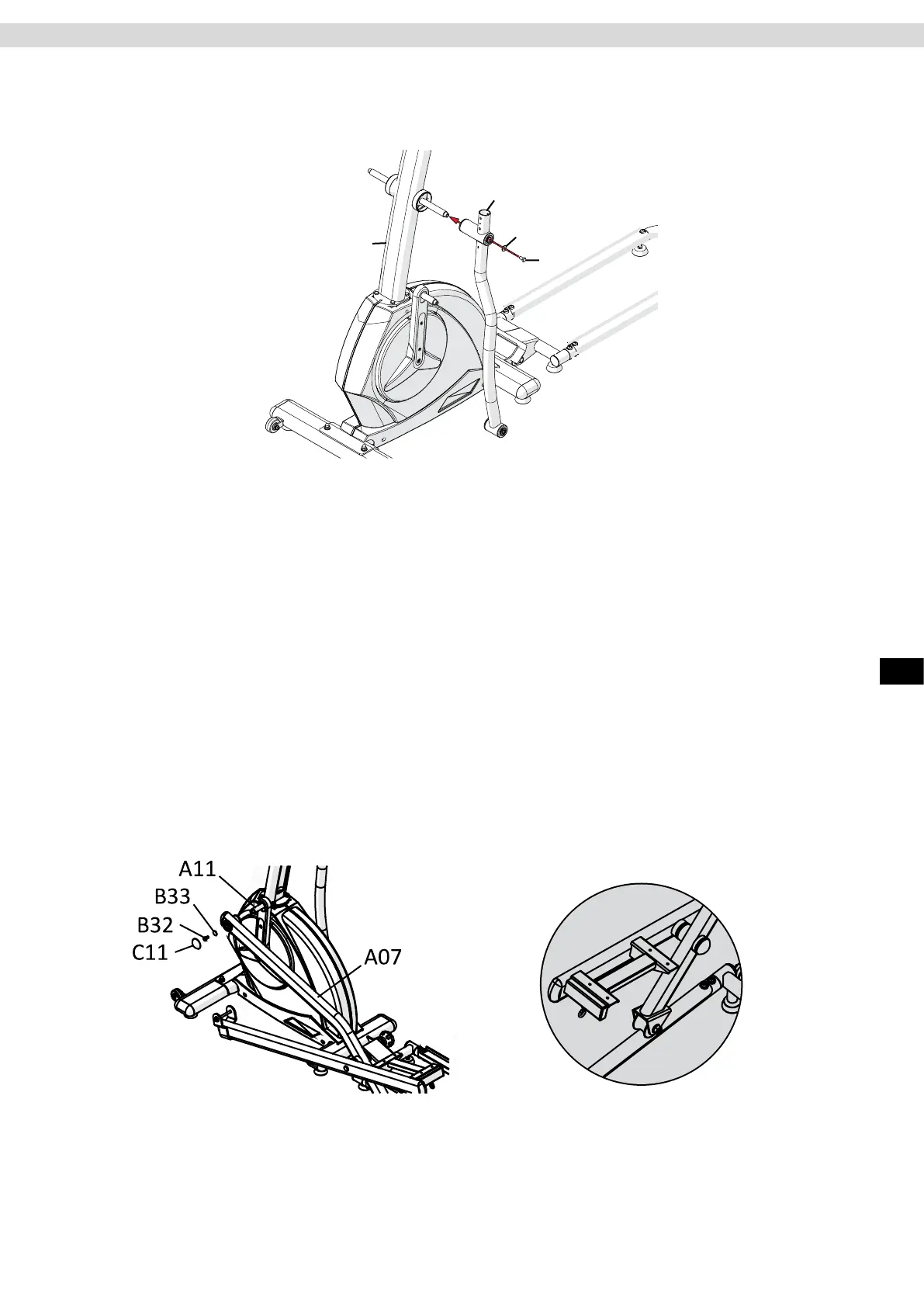

Step 6: Assembly of the Pendulum Tubes

Insert the left pendulum tube (A03) into the previously lubricated axle of the handlebar stem (A02). Fix the pen-

dulum tube (A03) with a screw (B32) and a washer (B33).

Repeat with the right pendulum tube (A04).

Step 7: Assembly of the Guide Tubes

Slide the bearing of the left guide tube (A07) onto the previously lubricated small axle (A11) on the left drive disc

of the base frame and place the roller on the left side of the slide frame (see circled cut-out).

Attach the left guide tube (A07) to the small axle (A11) with a hexagon bolt (B32) and washer (B33).

Now place the round cap (C11) over the head of bolt (B32).

Repeat with the right guide tube (A08)

Assembly
