10

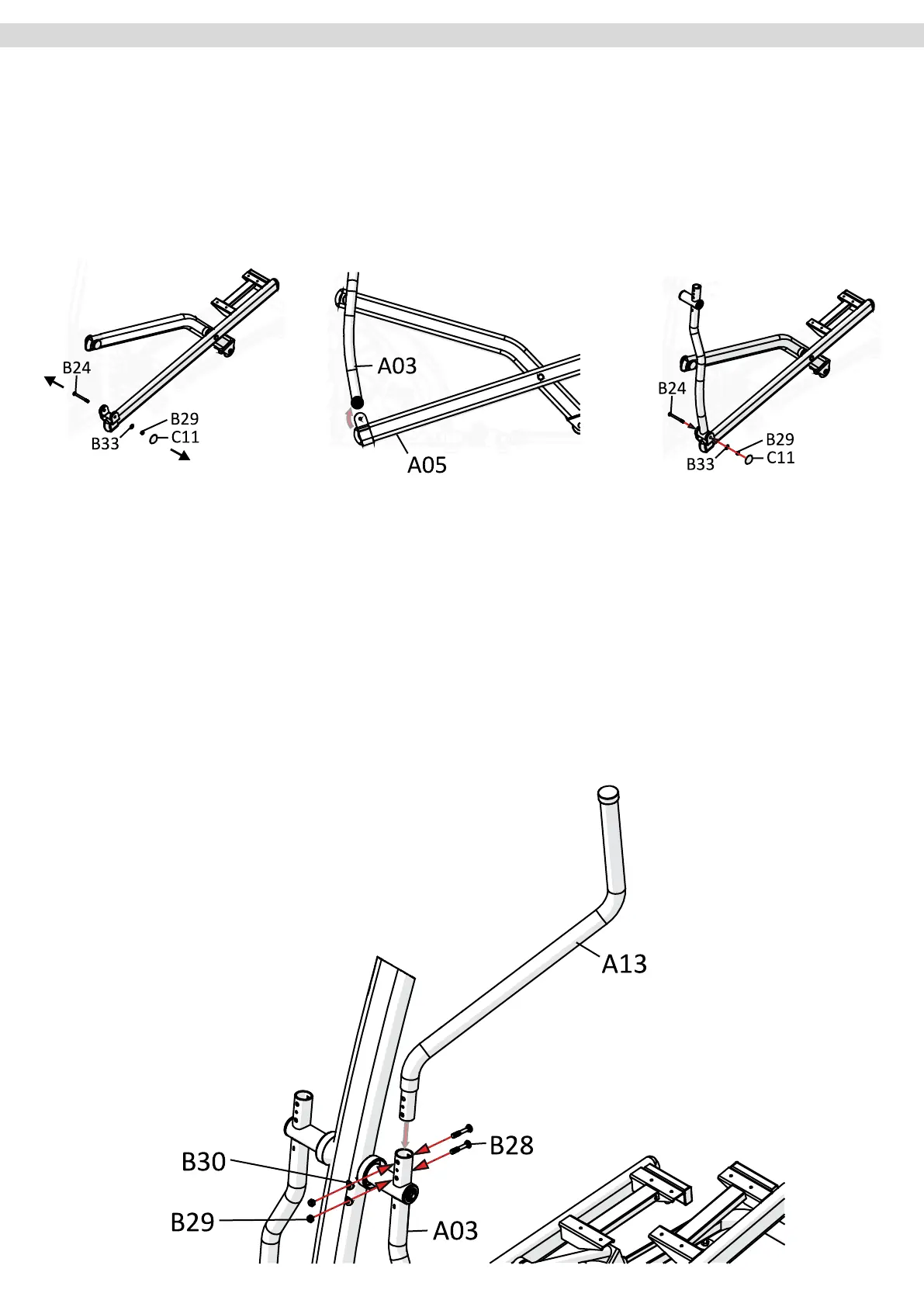

Step 8: Assembly of the Articulated Joint (between pendulum tube and pedal arm).
Loosen and remove the bolt (B24), washer (B33) and lock nut (B29) located on the front bracket of the left pedal
arm (A05).
Now connect the left pendulum tube (A03) to the pedal arm bracket (A05) using the same screw (B24), washer
(B33) and lock nut (B29).
Repeat with the right pendulum tube (A04) and right pedal arm (A06)
Step 9: Assembly of the Pendulum Handles
Insert the left pendulum handle (A13) into the left pendulum tube (A03) and the right pendulum handle (A14)
into the right pendulum tube (A04).
Both pendulum handles are marked by appropriate stickers and so are easy to identify.
Secure the pendulum handles with two bolts (B28), two curved washers M8 (B30) and two lock nuts (B29)
