Assembly – Multipress
Assembly Step 4:
Hook-in the dumbbell bar (16) with the holding hooks to the left and right-hand side frames. Slide the basic pipe for the
barbell bar (90) through the grip bar with hooks (16).
Tipp: First lubricate or fat the surface of the basic pipe (90) with some multi-function fat or with a silicon spray.
Assembly of the left Guide Pipe (17)

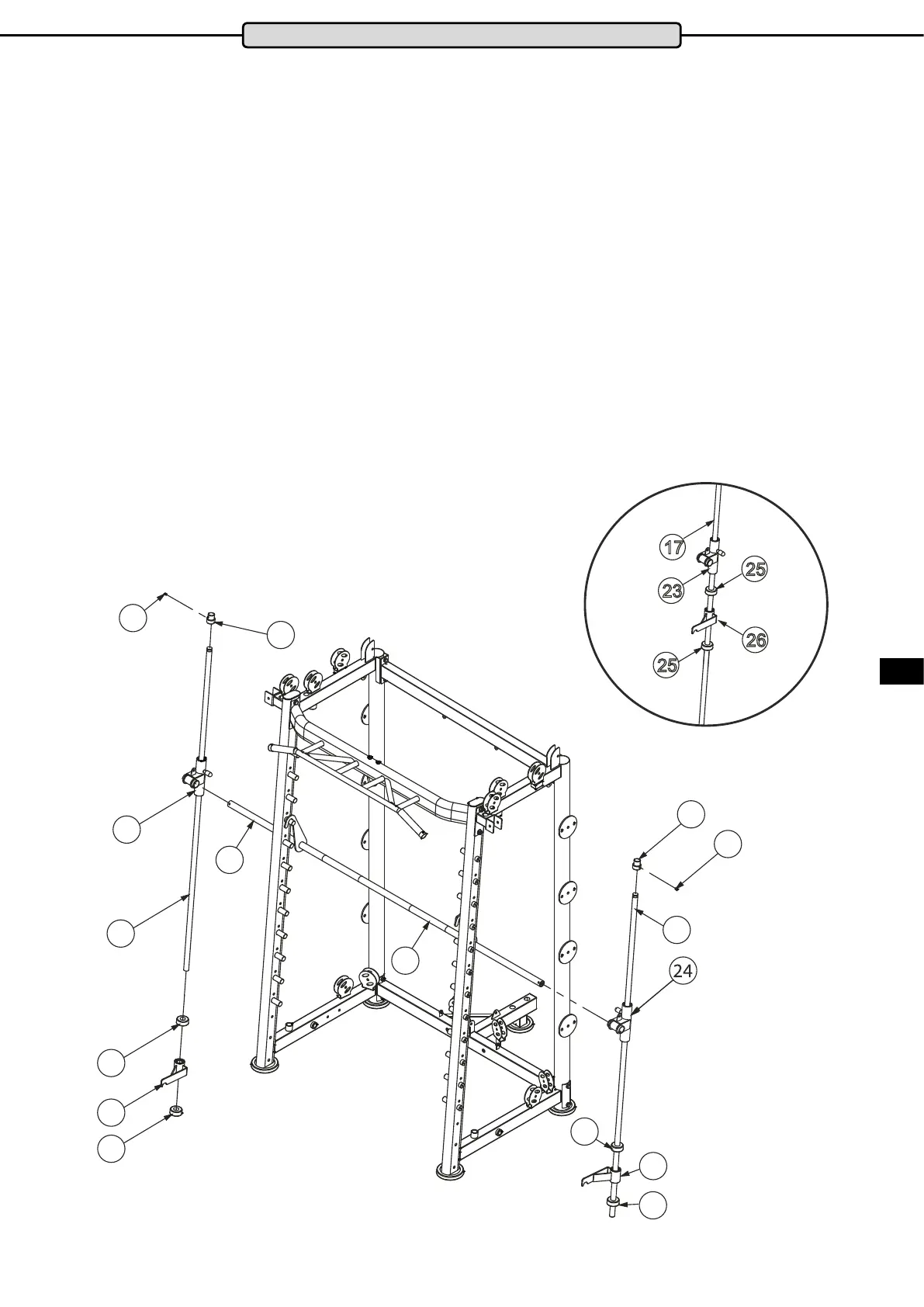

Slide the following parts onto the guide pipe (see circled segment diagram):
- Guide element (23) – Rubber Damper, round (25) – Safety Hook, left (26) – Rubber Damper, round (25)
Please make sure here of the sequence and direction! Take utmost care when placing the guide element (23) into the guide
pipe. There are ball bearings inside the guide element which could become damaged if guide element gets jammed in the
pipe.
Place the xing bushing (22) from above onto the guide pipe (17).
Slide the guide element, left (23) with the guide pipe (17) onto the left dumbbell bar (16) mounting.
Then place the guide pipe in the lower mounting of the left side frame.
Finally, place the top end of the guide pipe with the xing bushing (22) in upper mounting of the left-hand side frame and x
the bushing by tightening the headless screw M8x10 (21)
Follow the same procedure with the right guide pipe (17).
To Next Page
