Maxxus Multipress 10.1 - Page 16

90
90
19
12
18
20
8
7
18
20
19
12
87
16
Assembly – Multipress

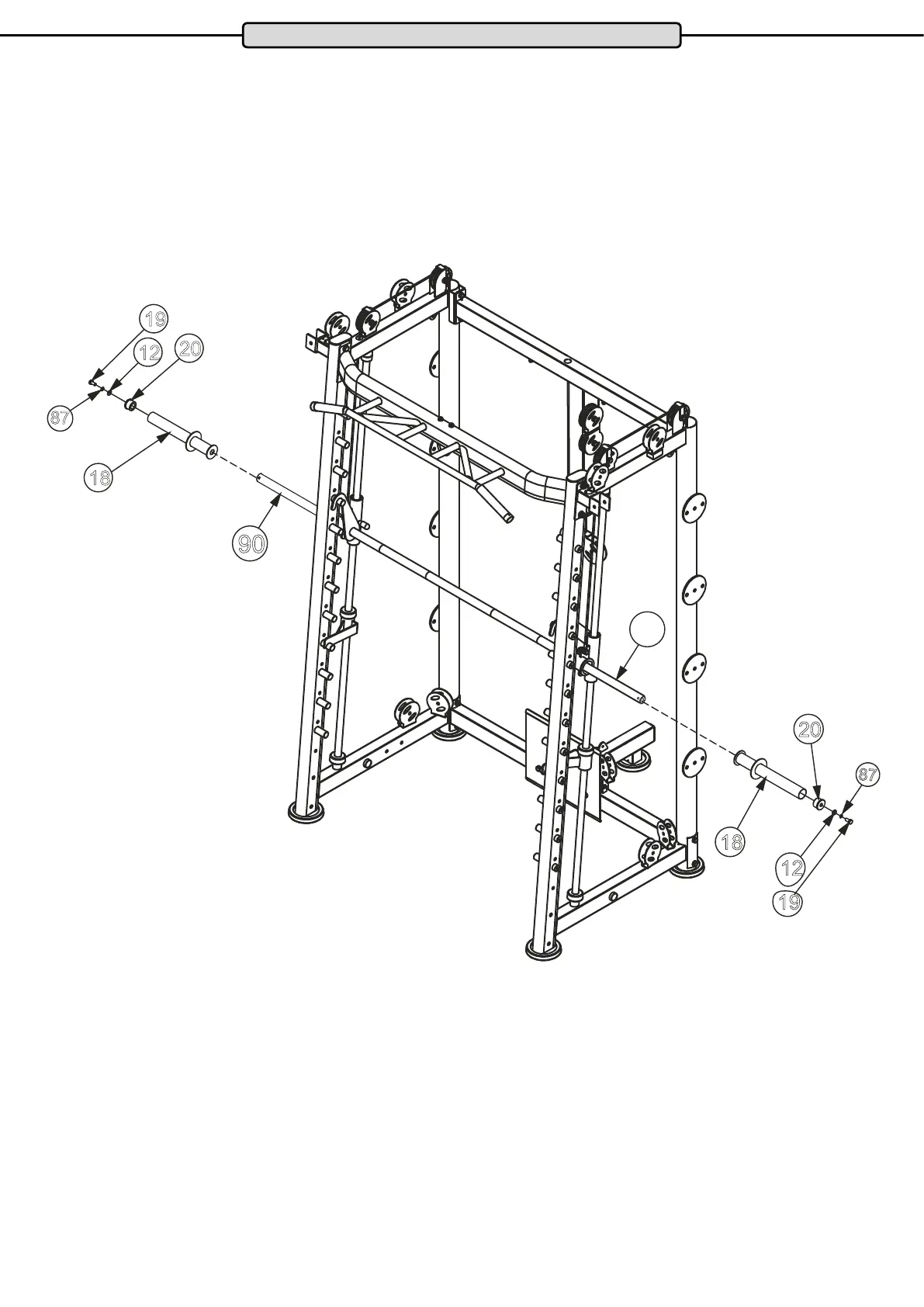

Assembly Step 4.1:
Slide a weight sleeve (18) on the right and left ends of the dumbbell bar (16). Fix each of these with an end piece, round
(20), a washer Ø12 (12) and a hexagonal head screw M12x25 (19).
