Maxxus Multipress 10.1 - Page 20

20
Assembly – Multipress

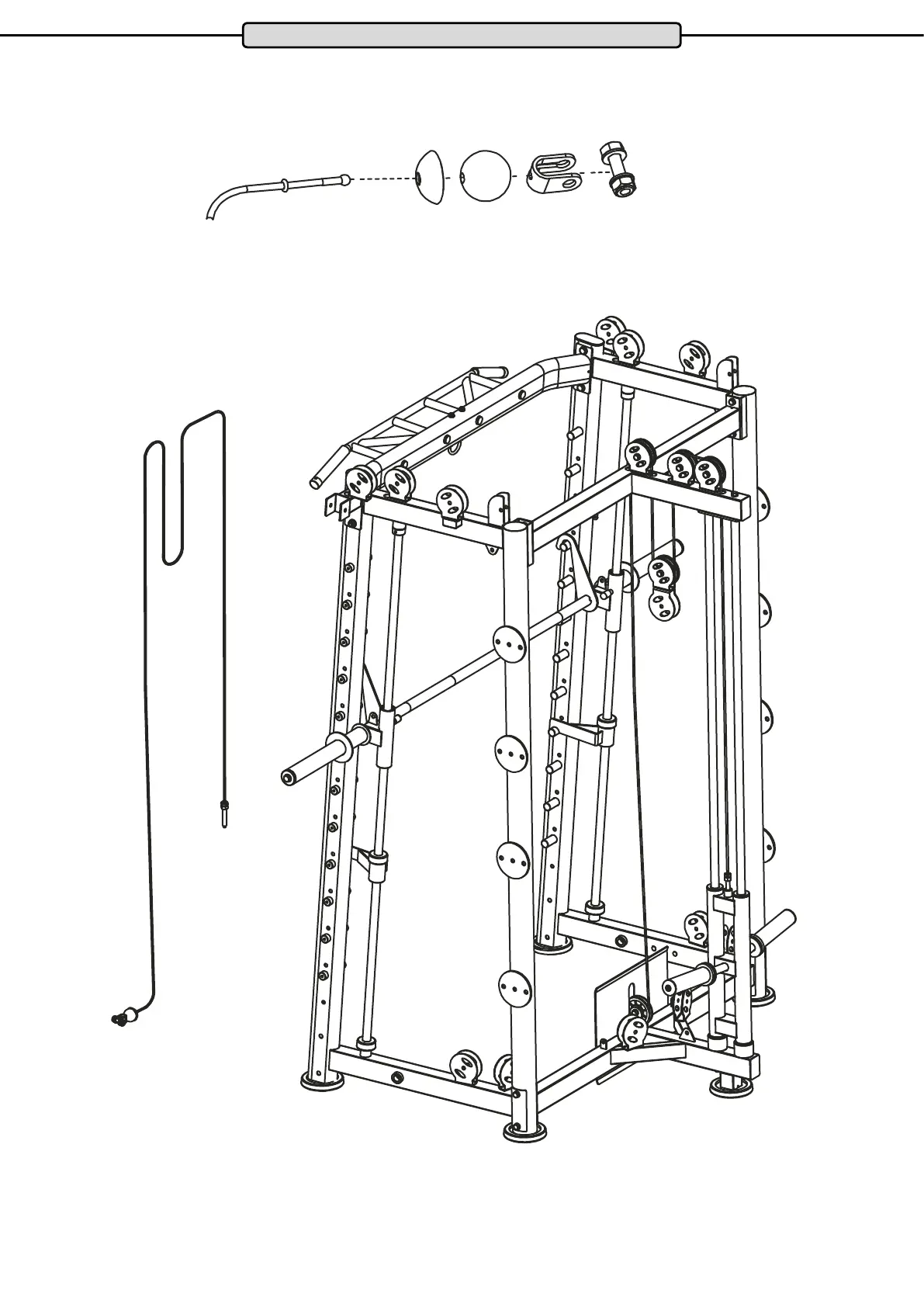

NOTES: Assembly of the Traction Cable:
To feed the traction cable through the rollers or through the hole in foot plate, undo and remove the screw and nut at the
ball end of the cable. Then remove the U-bracket and the ball and metal cup plate. Replace these parts on the end of the
traction cable once you have nished assembling it.
