Assembly – Multipress
Assembly Step 7

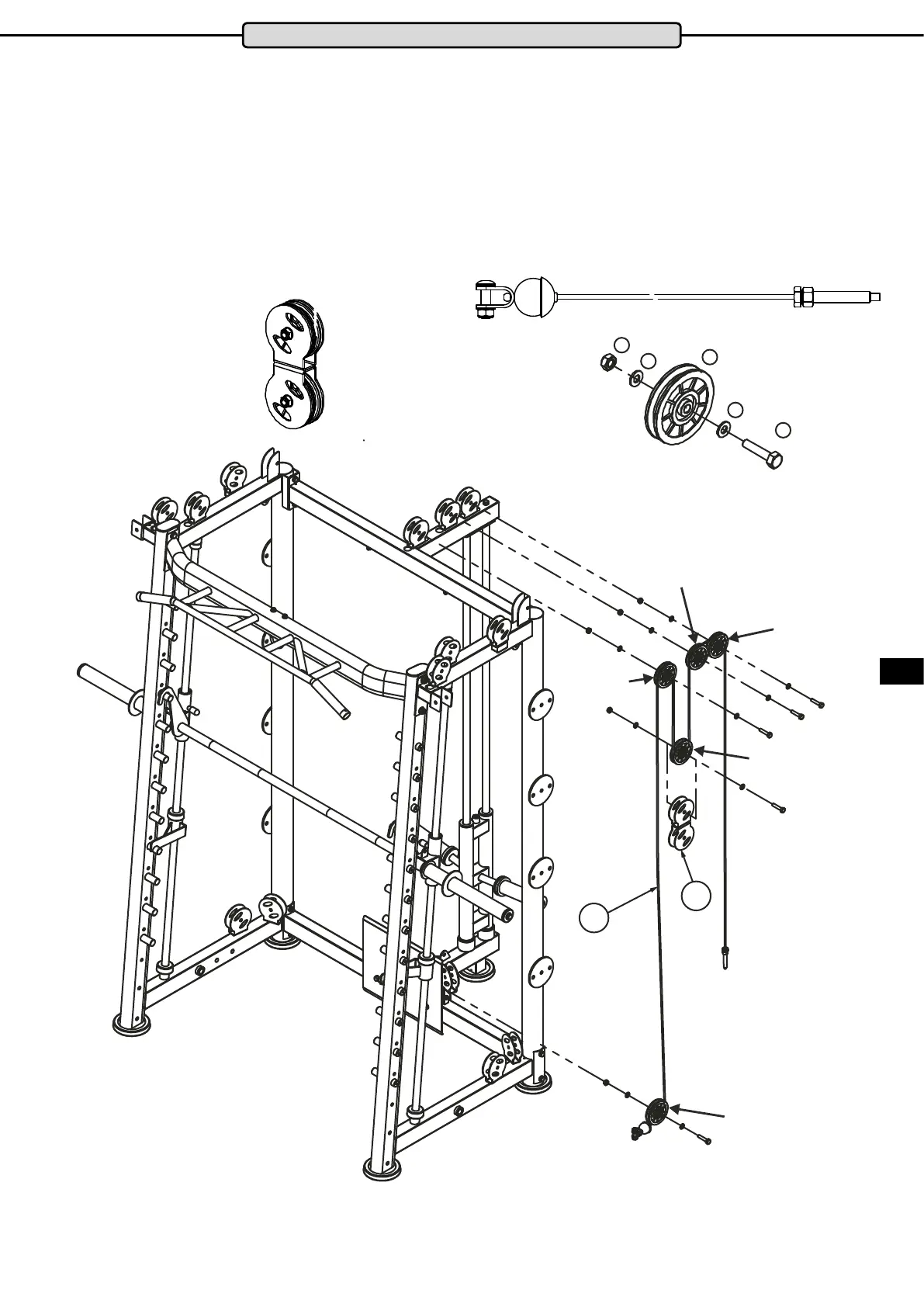

Connect the end of the traction cable (39) with the thread connection on the weight slide.
Feed the traction cable (39) up and over single rollers (1) and (2) and assemble rollers (1) and (2) onto the T-frame. Then
feed traction cable (39) over the upper rollers on double roller (40) and then over roller (4) on the T-frame.
Now feed traction cable (39) down and over single roller (4) on the lower T-frame and towards the front through the hole in
the foot plate. Fix single roller (4) to the lower T-frame.
Double Roller (40) Traction Cable (39) - Length 4.430 mm
Single Roller (1)
Single Roller (3)
Single Roller (5)
Single Roller (4)
Single Roller (2)
