Assembly – Multipress
Assembly Step 6

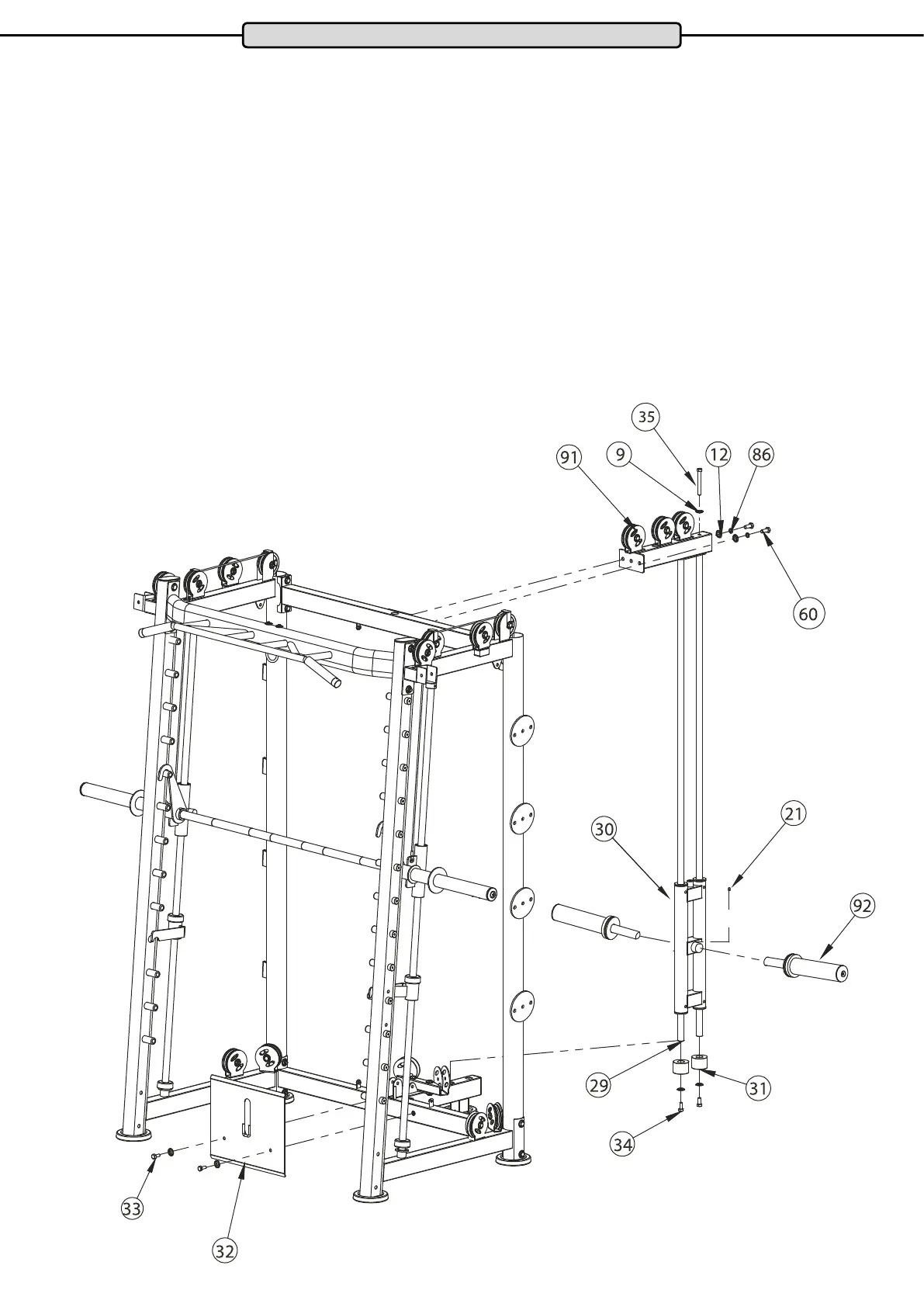

Place the rear guide pipes (29) in the mountings on the weight slide (30).
Make sure that both dumbbell plate mountings on the weight slide are pointing upwards.
Slide on the two round rubber dampers (31) from below onto the guide pipes (29).
Then place the guide pipes in the drill holes in the lower T-frame using one screw M10x20 (34) and a washer Ø10 (9) on
each side.
Place the upper T-cross bar (28) on the guide pipes (29) between the two side frames. Fix the T-cross bar (28) on the right
and left to the base frame using two hexagonal head screws M10x20 (34) and two washers Ø10 (9) on each side. Fix then
the rear guide pipe (29) to the upper T-cross bar (28) using a hexagonal head screw M10x95 (35) and a washer Ø10 (9).
Mount foot plate (32) using two hexagonal head screws M10x25 (33) and two washers Ø10 (9) to the lower T-cross bar.
NOTE:
Please only hand tightened all screws until all components are tting perfectly.
Only after this, should the screws be rmly tightened.
