56
53
56
57
55
57
54
10
71
9
71
10
53
9
24
Assembly – Multipress

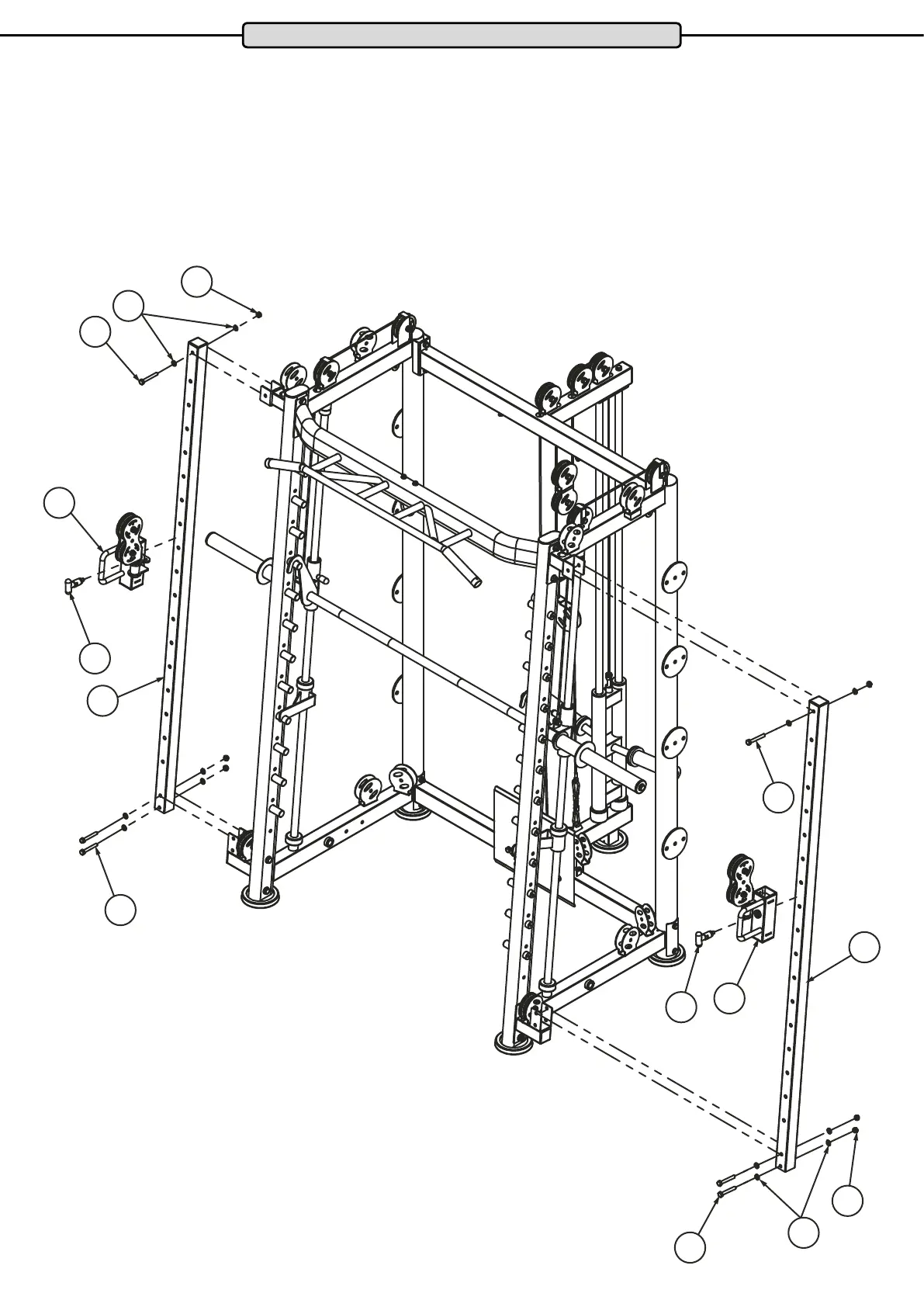

Assembly Step 10
Place the left-hand guide frame with double roller (54) onto one of the guide pipes (56). Make sure that it is correctly
aligned. Then x guide frame (54) with a locking pin (57) on the guide pipe (56).
Now x the square guide pipe (56) to the top and bottom of the left-hand side frame. At the top use a hexagonal head screw
M10x75 (71), two washers Ø10 (9) and a safety nut M10 (10) and at the bottom use two hexagonal head screws M10x70
(53), four washers Ø10 (9) and two safety nuts M10 (10).
Repeat this procedure on the right-hand side.
