41
54
55
38
59
10
9
9
41
9
38
9
10
10x
27
ENG

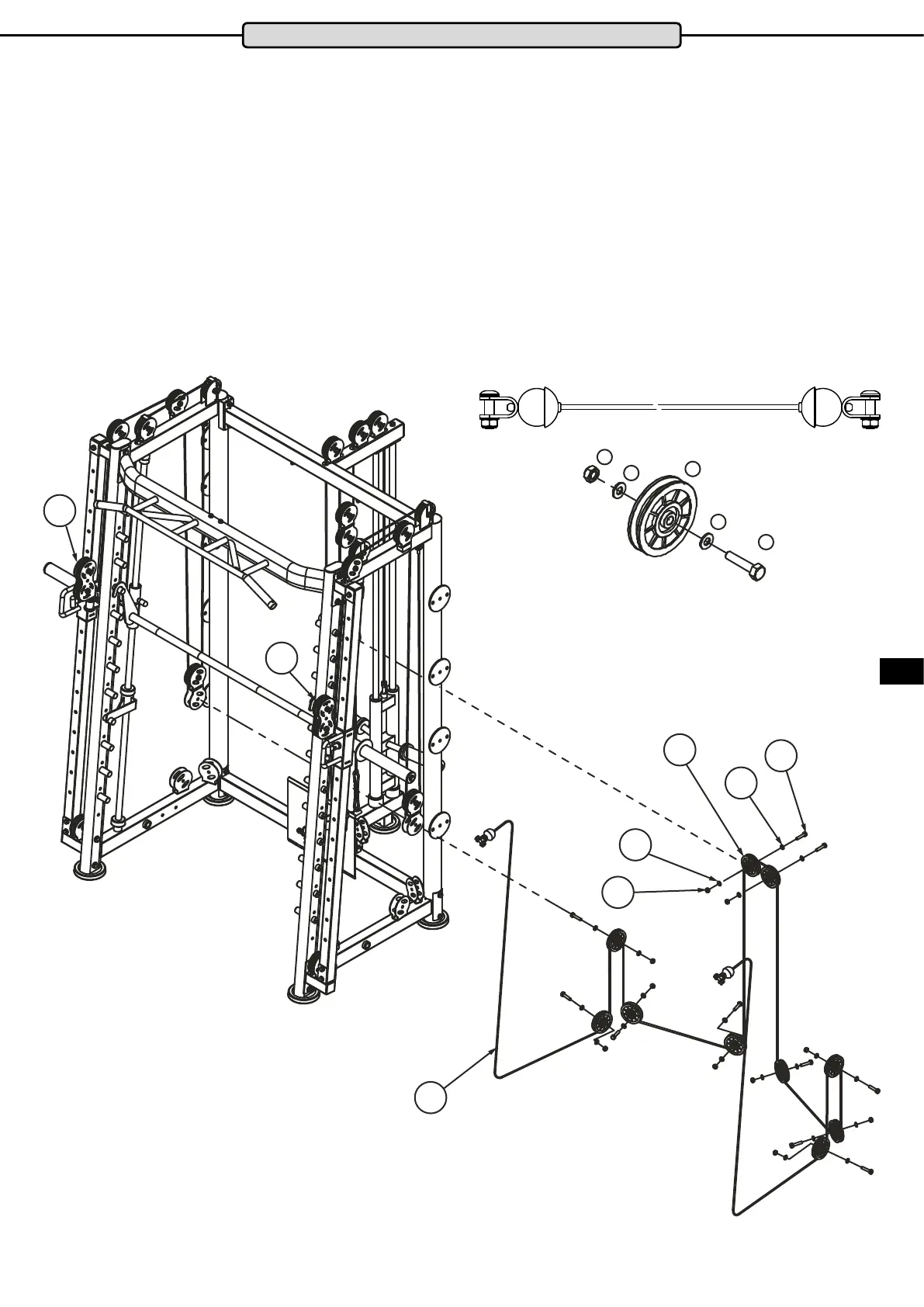

Assembly Step 12
Mount the 10 rollers (38) on the appropriate roller holders using a hexagonal head screw M10x45 (41), two washers Ø10
and a safety nut M10 (10) – see diagram and description on the next page.
Loosen the ball bracket at the end of traction cable (59) – see diagram and description on the next but one page.
Feed the traction cable from the front through the double roller on the right-hand guide frame (55) and down through the
lower front roller on the right-hand side frame. Continue the process further as shown in the diagram. When you get to
the front roller on the left-hand side frame, feed the traction cable upwards through this roller, and outwards from the rear
through the double roller on the left-hand guide frame (54) – see diagram and description on the next page.
Finally t the ball bracket you removed earlier back onto the end of traction cable (59).
Assembly – Multipress
Traction Cable (59) – Length 10.690 mm
To Next Page
