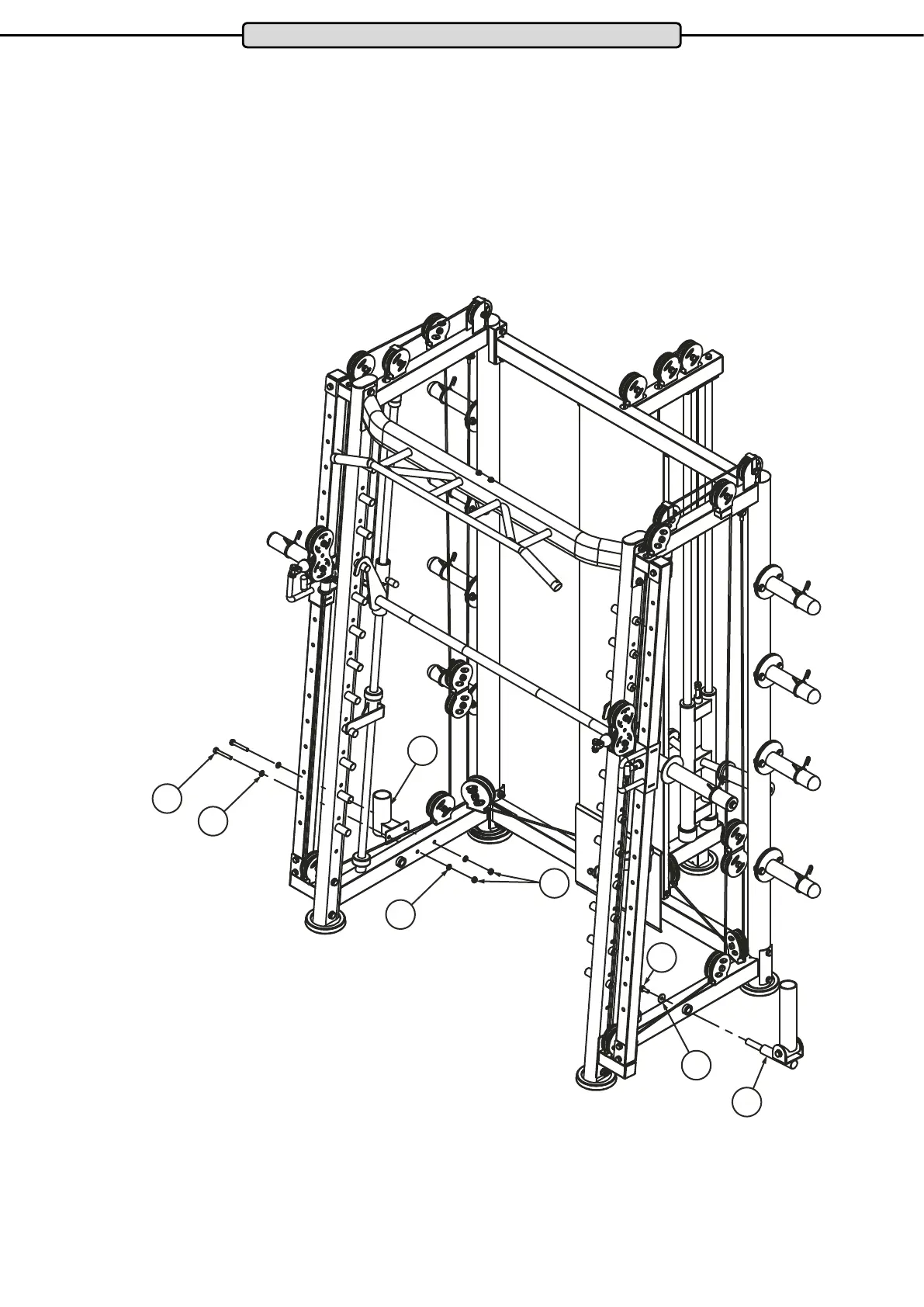

Assembly Step 15
Fix the movable dumbbell bar bracket (78) to the right-hand side frame.
For this use a hexagonal head screw (M10x20 (34) and a washer Ø30xØ10,5 (79)
Then x the dumbbell bar bracket (77) to the left-hand side frame.
For this use two hexagonal screws M10x70 (53), four washers Ø10 (9) and two safety nuts M10 (10).
Assembly – Multipress
