Maxxus Multipress 10.1 - Page 31

63
64
65
66
32
31
ENG

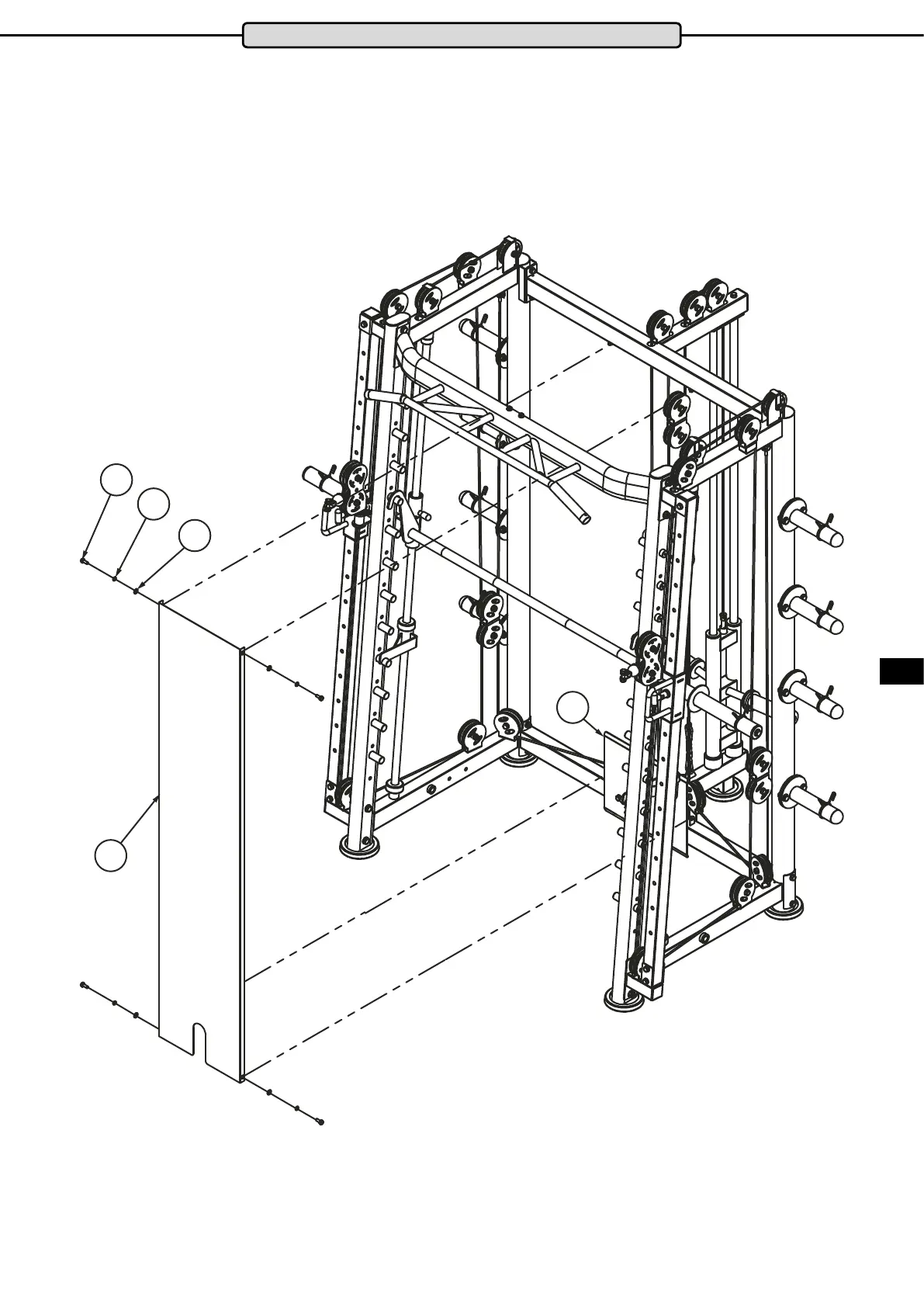

Assembly Step 14
Attach cover plate (63) to the top and bottom T-cross bar. For each connection upper and lower 2 hexagonal head screws
M8x20 (64), two spring plates Ø8 (65) and two washers Ø8 (66).
Please ensure that cover plate (63) is assembled behind footplate (32), assembled in Assembly Step 3, on the lower
T-cross bar
Assembly – Multipress
