Maxxus Multipress 10.1 - Base Frame and Standpipe Assembly

17
21
56
16
32
30
3
19
20
6
7
2
3
51
4
5
33
33
52
55
53
54
1
36

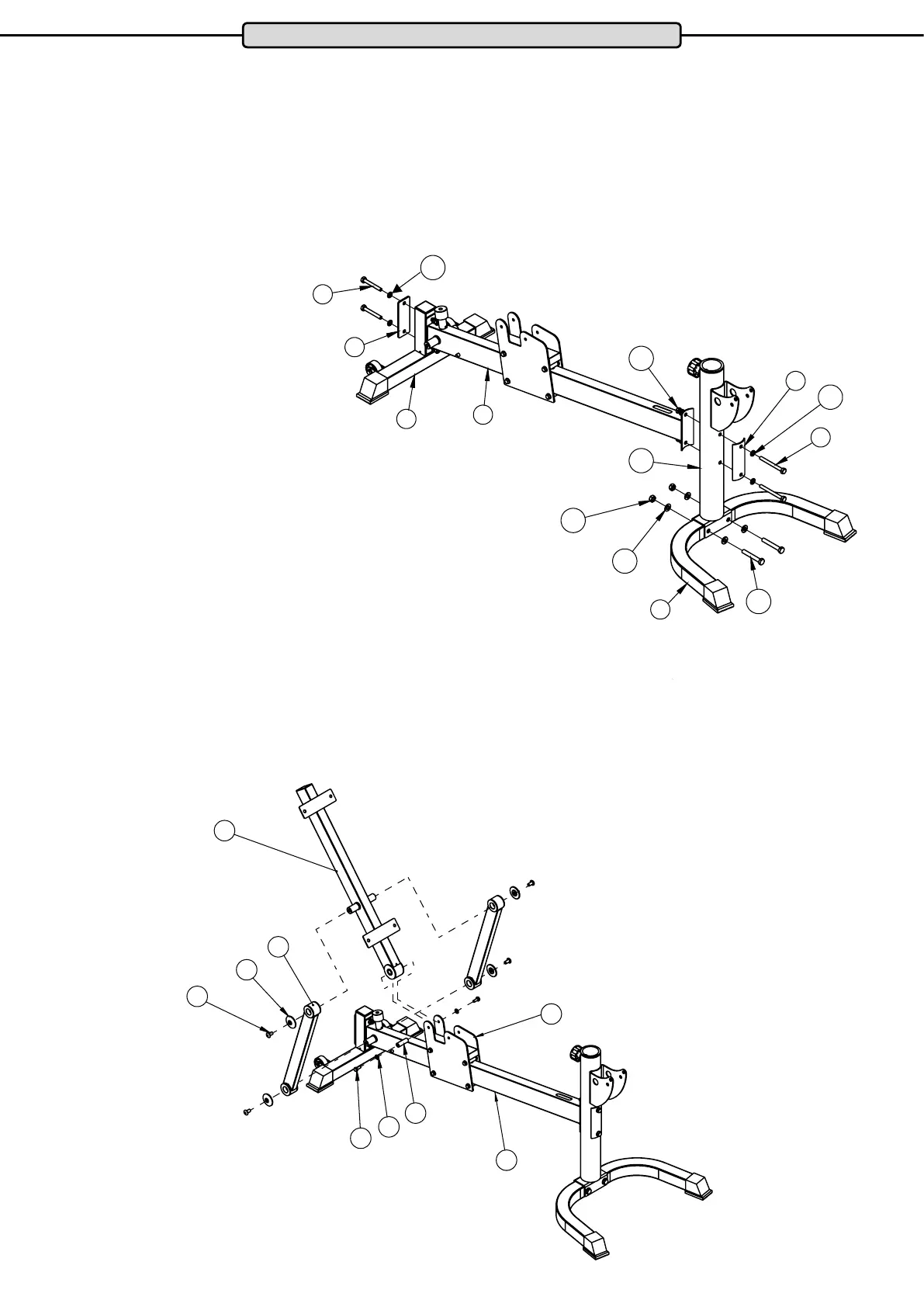

Assembly Step 1
Fix the rear oor bar (2) to base bar (3) using two hexagonal head screws M10x75 (6), four washers Ø10 (33), two safety
nuts M10 (52) and straight retaining plate (7).
Place standpipe (51) onto front oor bar (1) and x it with two hexagonal screws M12x75 (55), four washers Ø12 (54) and
two safety nuts (53).
Fix the standpipe (51) to the base bar (3). For this use two hexagonal screws M10x100 (5), four washers Ø10 (33), and two
safety nuts M10 (52) and the bent mounting plate (4).
Assembly Step 2
Fix support tube (17) each with two hexagonal head screws M8x20 (19), two washers Ø8 (32) and distance tube (30) on
the rear mount of the sliding carriage (16)
Then place the two guide pipes (20) in the left and right mounts on the base bar (3) and in the mount on standpipe (17) and
x them each with two aluminium caps (21) and two headless screws M10x16 (56)
Assembly – Training Bench
