40
34
36
11
9
60
32
48
47
49
50
37
38

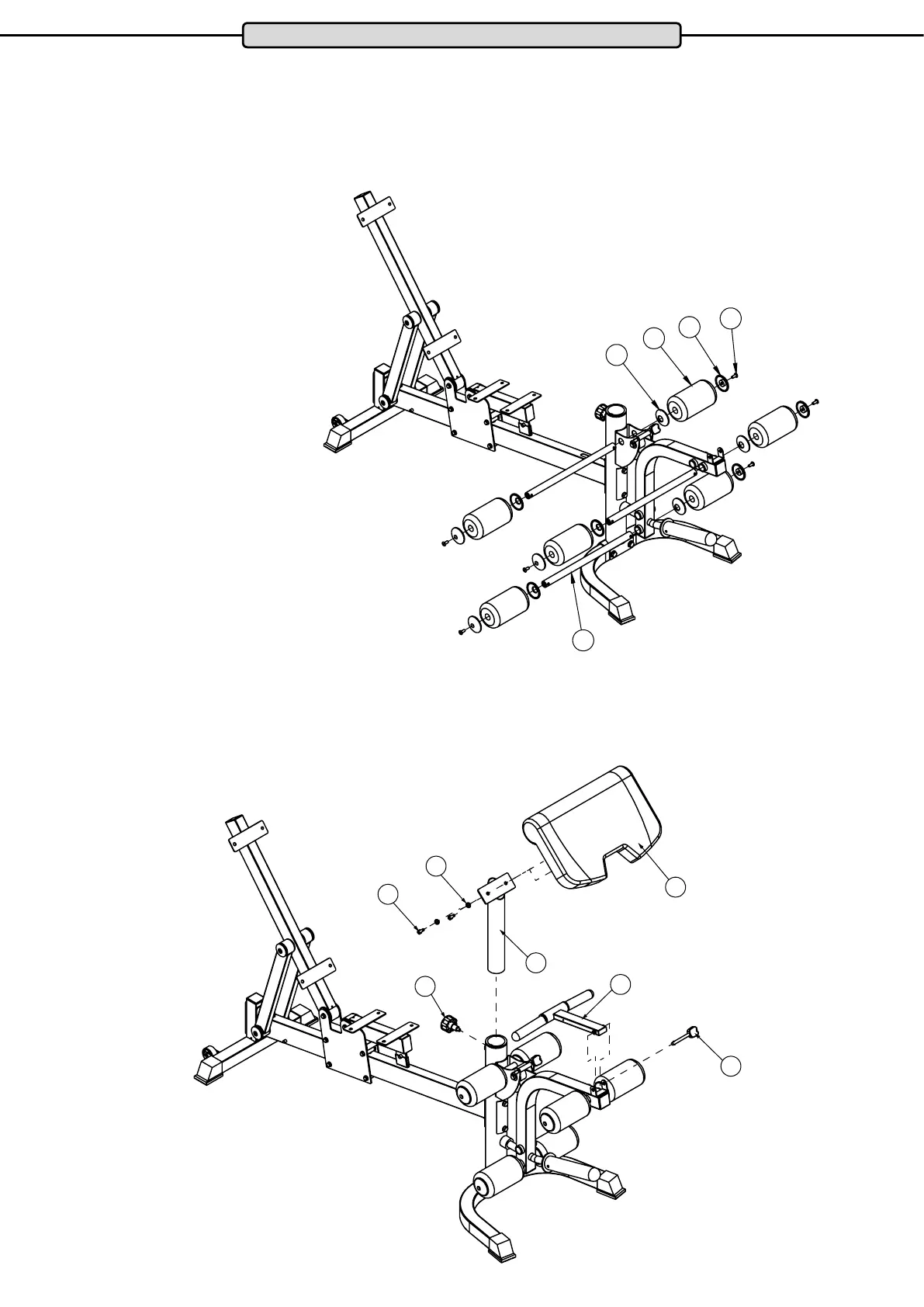

Assembly Step 5
Place the three cross pipes (37) – into the swivel bracket and base – as shown in the Diagram. Push a cover plate (large
opening) (48) on to both ends of each cross pipe (37) with the opening facing outwards (see Diagram).
Slide on a round cushion (47) on the right and left ends of each cross pipe (37) and x them with a cover place (small open-
ing) (49) and a hexagonal head screw M8x25 (50).
Assembly – Training Bench
Assembly Step 6
Place the shaft pipe (34) in the upper opening of the stand pipe and x it with a grip screw (11). Fix the arm curler cushion
(40) onto mounting on shaft pipe (34) using two hexagonal head screws M8x25 (60) and two washers Ø8 (32).
At the front end of the swivel bracket, x the swivel pipe of the arm curler (36) with safety split pin (11)
