Maxxus MX-J306-01 - Assembly Process - Side Panels and Heater; Assembling Back and Side Panels; Installing the Floor Heater

11
the wood pattern is flowing in the same direction. One person should hold the Back
Panel while the other person continues to the next step. (see FIG 4)

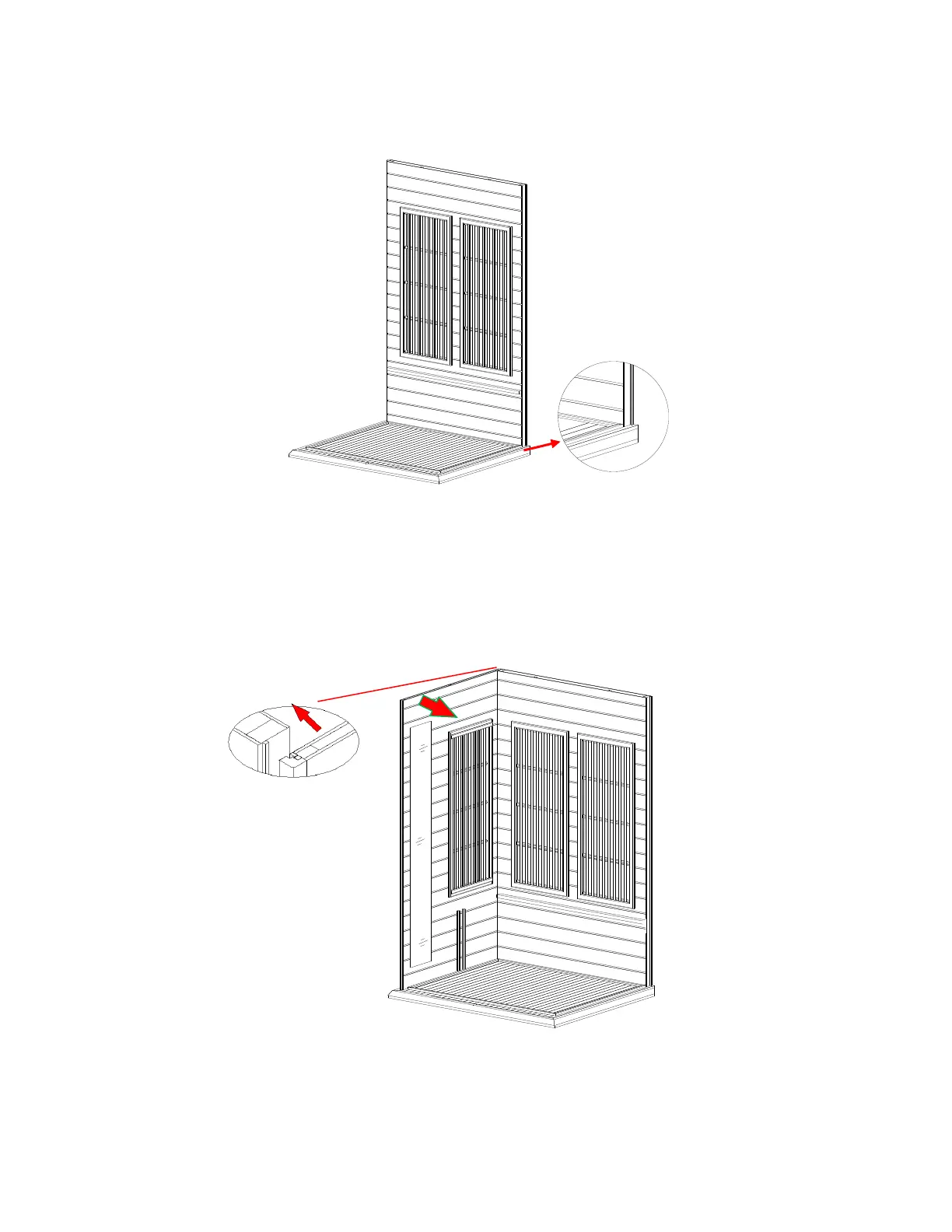

FIG 4 Assembling Back Panel
3. Align the Left Side Panel with the Floor Panel’s corresponding wood pattern. Make
sure the Left Side Panel fits flush into the Back Panel. (see FIG 5)
FIG 5 Assembling Left Side Panel
4. with the Back Panel. The buckle has a guide tab that must be placed in the guide
slot for alignment. When the Back Panel and the Side Panel is attached together on
