the floor panel, make sure all the buckles are latched. (see Figure 6)

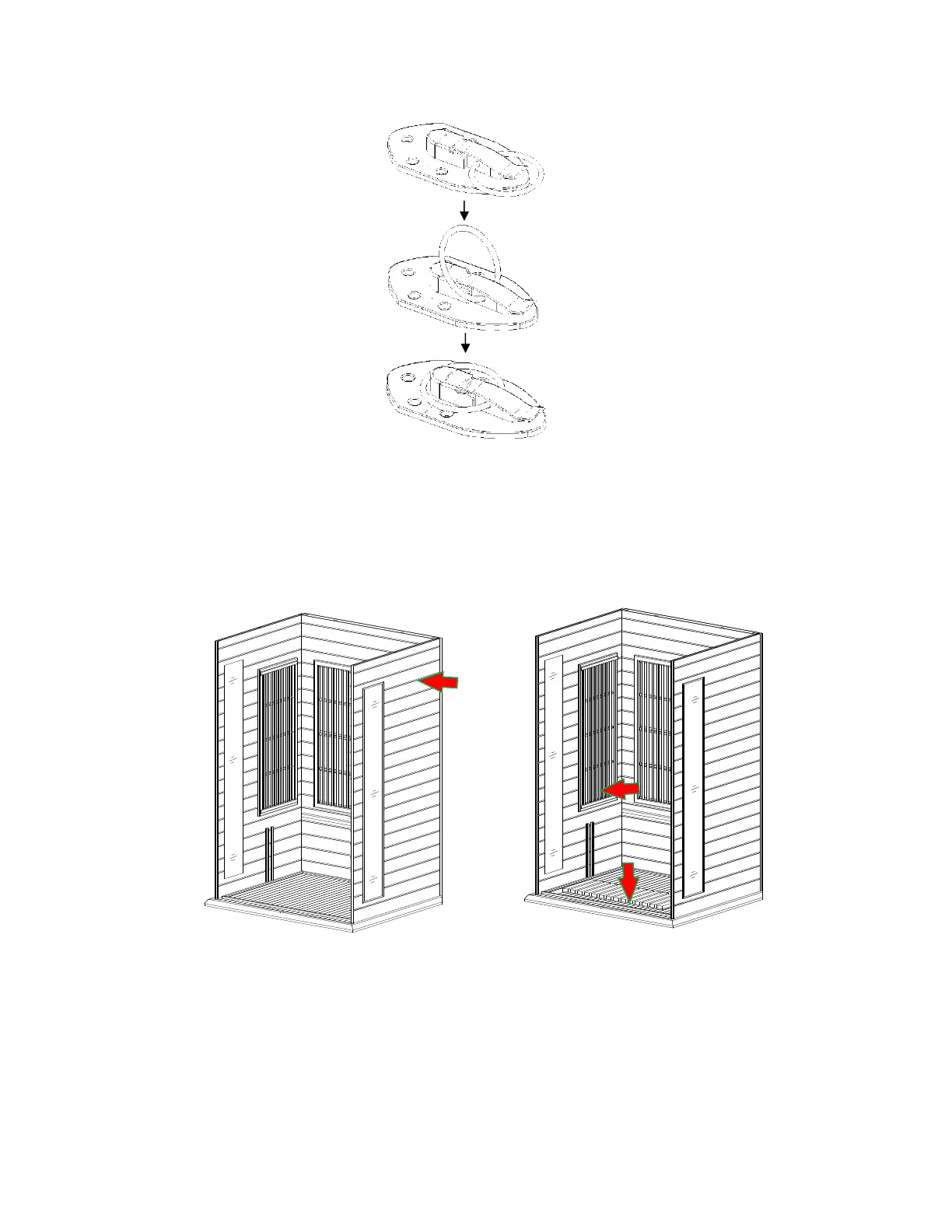

FIG 6 Buckle
5. Align the Right Side Panel with the Floor Panel’s corresponding patterns. Make sure
the Right Panel fits flush into the Back Panel and latch together. (see FIG 7 and
FIG 8)
FIG 7 Assembling Right Panel FIG 8 Placing Floor Heater
6. Place the Floor Heater on the Floor Panel making sure that the Floor Heater is in
front of the Bench Heat Emitter Panel. Please note there is a pre-cut small hole
under the Bench Heat Emitter Panel which is provided for the Floor Heater cord.
This cord will connect the Floor Heater to the plug outlet on the Left Side Panel.
