(see FIG 8 and 8.1)

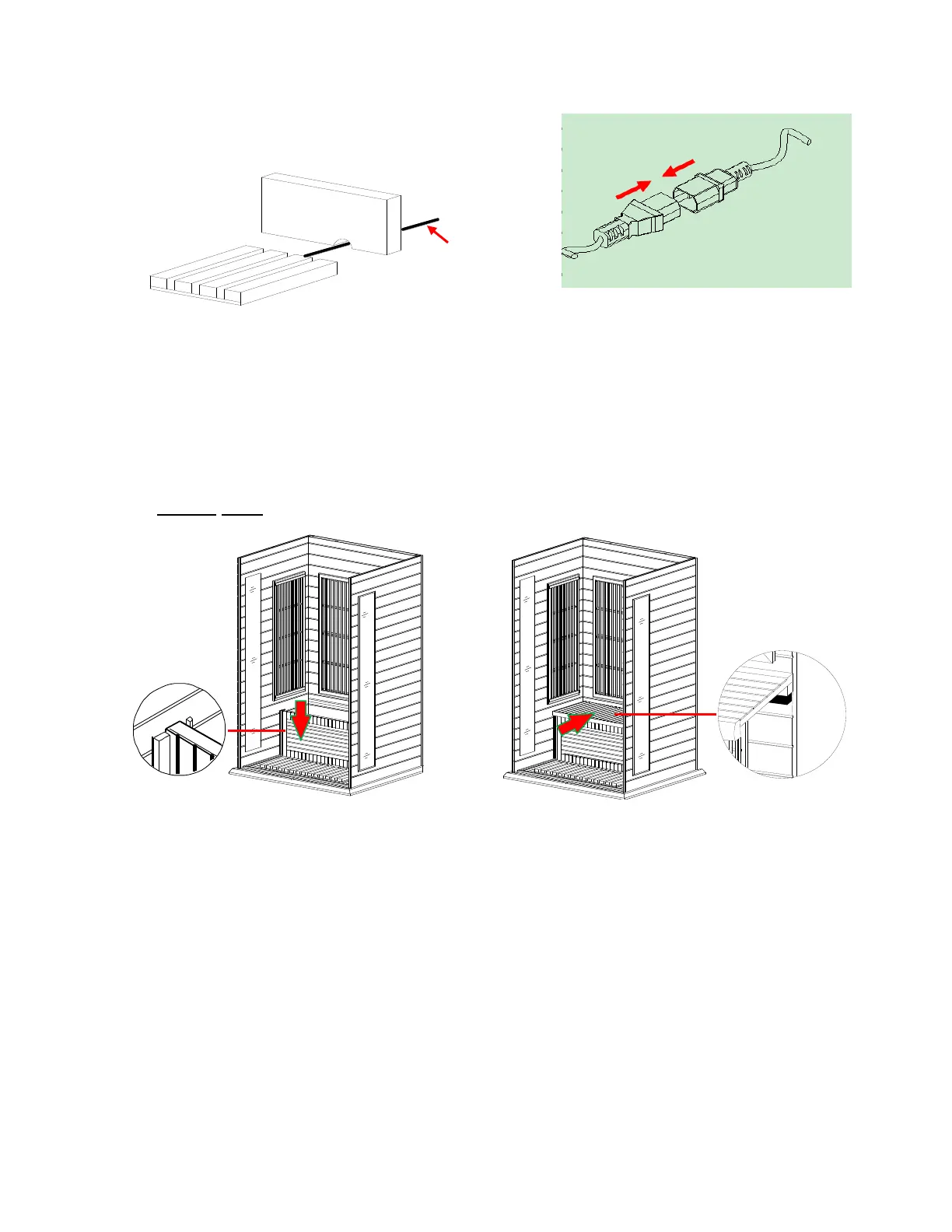

FIG 8.1 Connect Floor Heater
7. Make sure to slide the Bench Heat Emitter Panel all the way down (vertically) into
the slot provided on both the Left and Right Side Panels. Connect the Bench Heat
Emitter Panel cord with the outlet on the Back Panel and then place the Bench on
top of the Bench Heat Emitter Panel and slide it into place. (see FIG 9 and 10)
Please Note: Make sure the cords are connected snug and tight.
FIG 9 Connecting Cord FIG 10 Installing Bench
8. Align the Front Panel with the Floor Panel’s corresponding patterns. Make sure the
wood pattern is flowing in the same direction. Next, latch the Front Panel with the
Left and Right Side Panels respectively. Note: Be cautious with the glass door to
avoid breakage. See FIG 11.
To Next Page
