Page 7

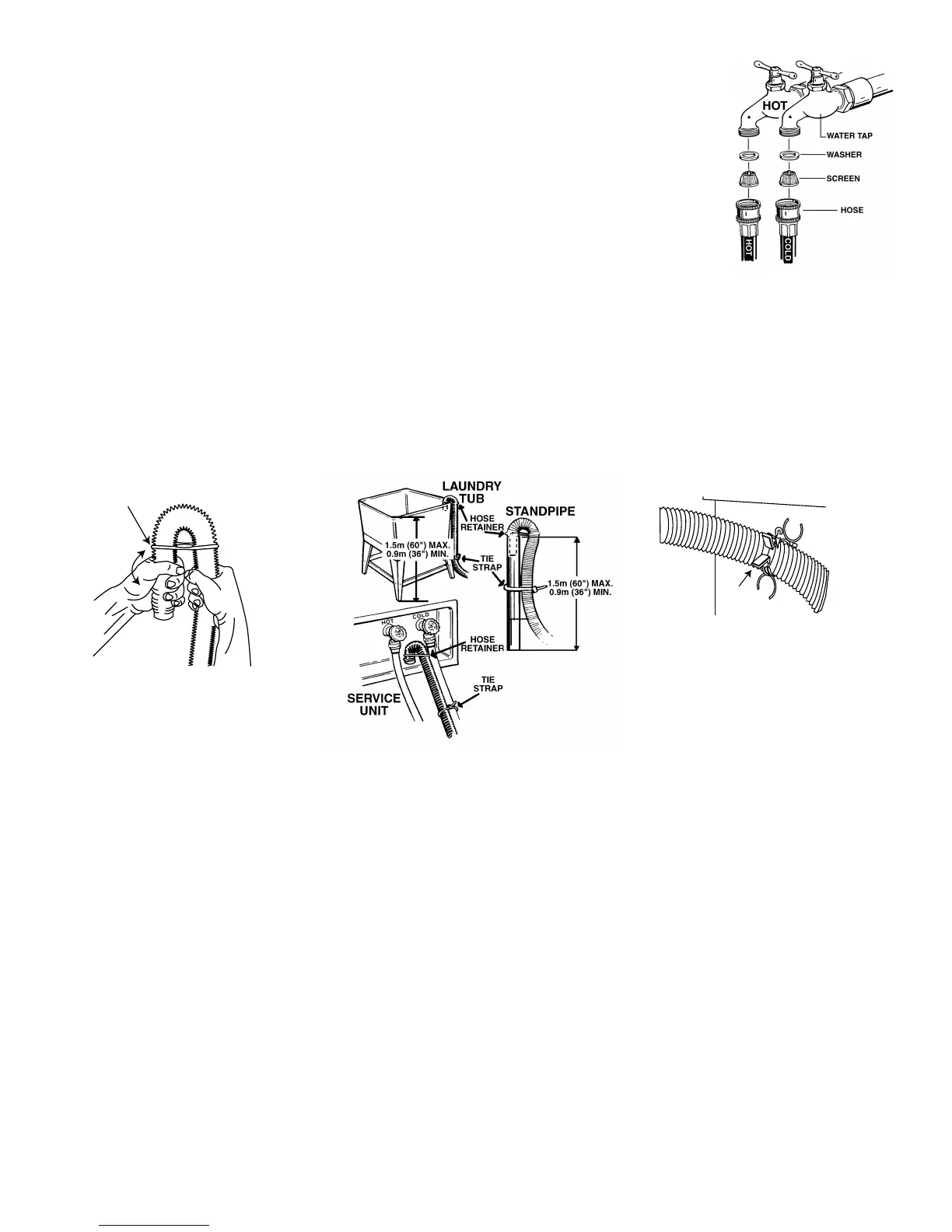

Connect inlet hoses to water supplies using screen washer at tap connections.
NOTE: Accessory inlet hoses are available tin various lengths up to 3m (10’).
Ensure the correct hose end is used on each hose. The appliance end has an
NPT thread. The water supply end has a standard European 3/4” BSP thread. Do
not overtighten hose connections. Hand tight should be adequate to avoid leaks
without damaging the sealing washer.
10. Drain hose connection
Install gooseneck end of drain hose into a standpipe. Be sure an air-tight
connection is NOT made between the drain hose and the standpipe.
Recommended height of the standpipe is 0.9m (36”). If the standpipe is less than 0.6m (24”) high, the
drain hose should be routed through the clip to raise the hose to the proper height. Standpipe must be
large enough to accept the outside diameter of the drain hose.
If a floor drain is used, route the drain hose through the drain hose clip before routing to the drain.
Without the 0.6m (24”) high elevation, water may run out of the washer prematurely.
NOTE: Caution must always be exercised to avoid kinking the drain hose. For best performance the
drain hose should not be restricted in any way, through elbows, couplings or excessive lengths.
11. Commercial installation accessories
For all accessories and replacement parts, contact your Maytag Commercial Distributor.
– Vent hood – 100mm (4”) opening ...................................................................................................059129
– Aluminum duct pipe – 100mm x 610mm (4” x 24”).........................................................................059130
– Aluminum elbow, 100mm (4”) .........................................................................................................059131
– Aluminum window plate – 381mm x 508mm (15” x 20”) with 100mm (4”) hole .............................059134
– Flexible aluminum duct – 100mm (4”) – 812mm (38”) extending to 2.44m (8’)..............................304353
– Clamp for flexible aluminum duct ....................................................................................................304630
– Exhaust duct kit for base or left side exhausting ........................................................................12001453
– Rectangular vent kit ........................................................................................................................059144
– Anchor bracket kit............................................................................................................................303740
– Gas conversion kit NATURAL to LPG.............................................................................................306195
– Gas conversion kit LPG to NATURAL.............................................................................................306204
– Earthing kit ..................................................................................................................................12001875
To prevent accidental dislodging secure the drain hose to the standpipe, inlet hose or laundry tub with the
tie strap provided in the parts package.
