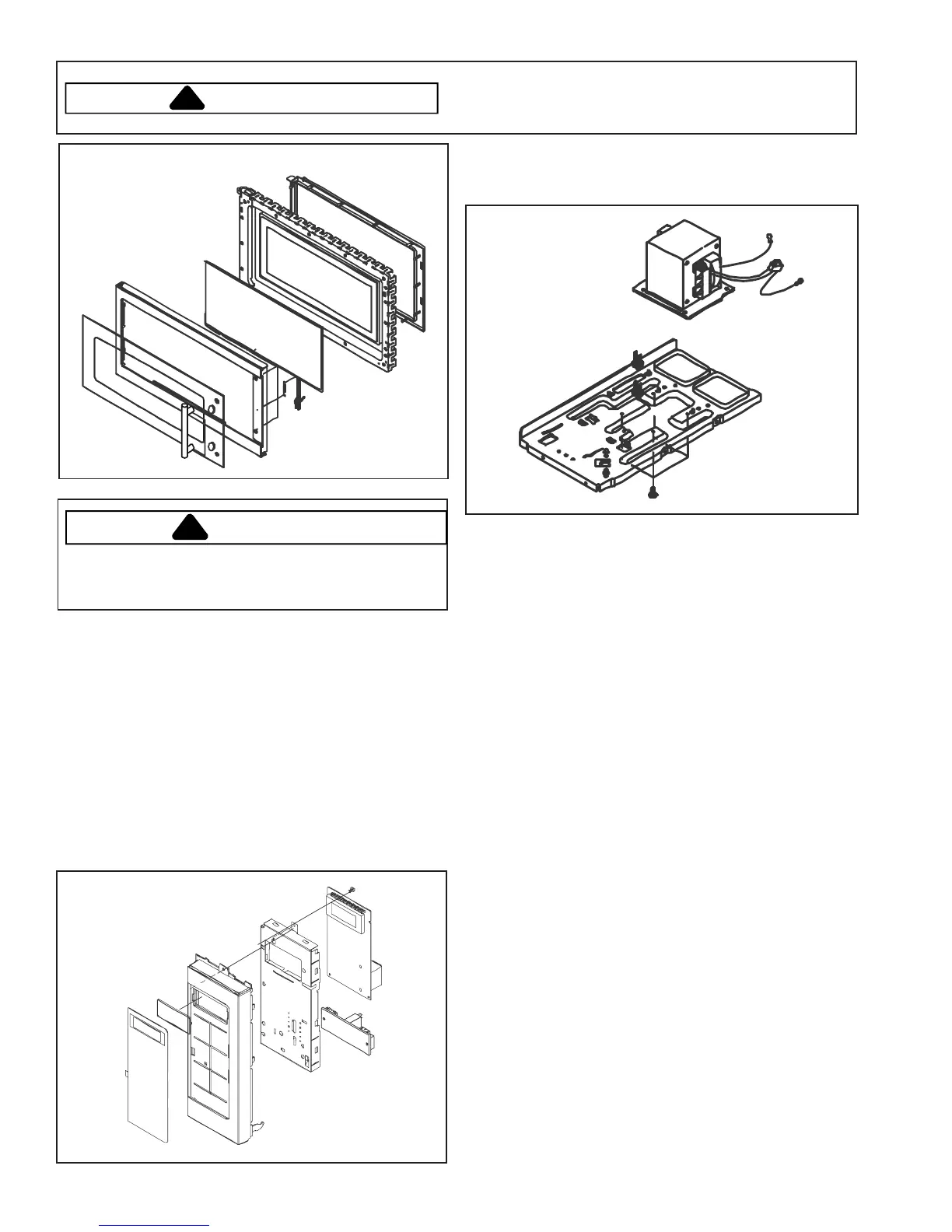

Disassembly Procedures
To avoid risk of electrical shock, personal injury or
death; disconnect power to microwave oven and
discharge the high voltage capacitor before performing
any disassembly procedures.
32 16027303 © 2006 Maytag Services
WARNING
!
Printed Circuit Board Removal
The circuit board is located at the top on back of the
control panel.
P.C. Board Removal
1. Disconnect oven power and remove grille, see "Grille
Removal" procedure.
2. Remove control panel, see "Control Panel Removal"
procedure.
3. Discharge high voltage capacitor, see "High Voltage
Capacitor Removal" procedure.
4. Disconnect ribbon connector by sliding top part of
connector upward. Once in released position remove
ribbon from connector by siding ribbon side-to-side.
NOTE: Caution should be used when removing cable
from connector. Ribbon cable has two holes
which connector locks ribbon in place.
5. Disconnect and mark the wire connectors from
circuit board.
6. Remove screws securing circuit board to control
panel assembly.
7. Reassemble in reverse order.
NOTE: Do not flex circuit board.
CAUTION!
A microwave leakage test must be performed anytime
a door assembly is removed, replaced, disassembled,
or adjusted for any reason.
Control Panel Removal
The control panel is made up of several components,
such as a printed circuit board and touch panel.
1. Disconnect oven power and remove grille, see "Grille
Removal" procedure.
2. Remove screw located at the top of touch panel. Lift
control panel up and out to release bottom tab
connections.
3. Place control panel on a flat surface.
4. Reassemble in reverse order.
Control Panel/Switch Membrane Disassembly
