Maytag MMV5207BC - Magnetron Fan Assembly Removal; Magnetron Thermal Fuse Removal; Humidity Sensor Removal (Select Models); Oven Thermostat Removal

Disassembly Procedures
To avoid risk of electrical shock, personal injury or
death; disconnect power to microwave oven and
discharge the high voltage capacitor before performing
any disassembly procedures.
36 16027303 © 2006 Maytag Services
WARNING
!
WARNING
!
A microwave leakage test must be performed anytime
a magnetron assembly is removed, replaced,
disassembled or adjusted for any reason.

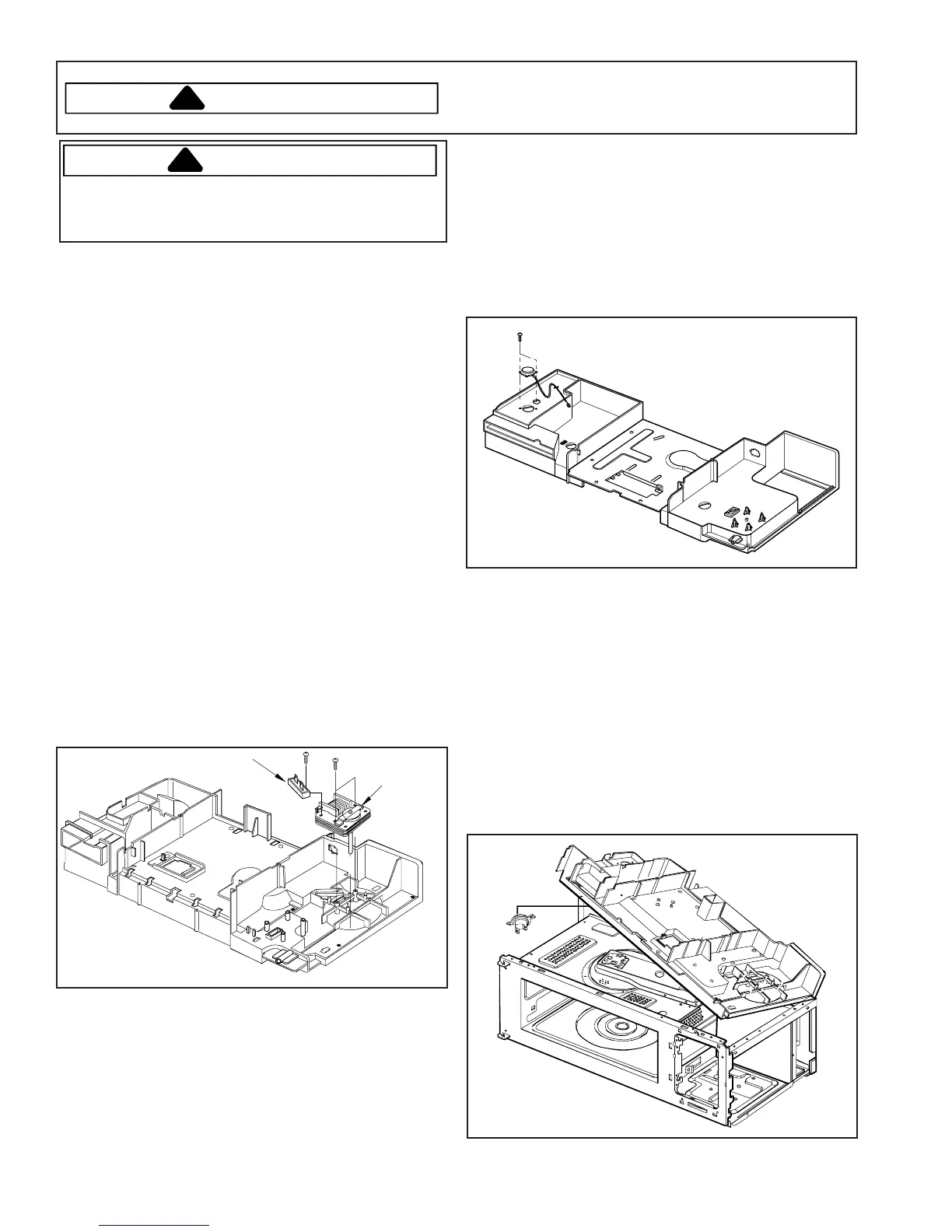

Magnetron Fan Assembly Removal
Magnetron fan motor provides cool air circulation from
an external air source, which provides direct cool air
through air vanes surrounding the magnetron. This
assembly is located above the magnetron.
1. Follow steps 1 through 5 of "Magnetron Removal"
procedure.
2. Remove fan blade from fan motor.
3. Remove screws securing fan motor to air duct.
4. Label and disconnect wires from fan motor and lift
assembly out.
5. Reassemble in reverse order.
Magnetron Thermal Fuse Removal
NOTE: Thermal fuse is not resettable.
1. Disconnect power to oven and remove control panel,
see "Control Panel Removal" procedure.
2. Discharge high voltage capacitor, see "High Voltage
Capacitor Removal" procedure.
3. Remove outer case, see "Outer Case Removal"
procedure.
4. Label and disconnect wire terminals.
5. Remove screw securing thermal fuse to cooling fan.
6. Replace and reassemble in reverse order.
Magnetron Thermal Fuse
Fan Motor
Humidity Sensor Removal (Select Models)
The sensor is a plug-in device located in the air exhaust
duct.
1. Disconnect power to oven and remove control panel,
see "Control Panel Removal" procedure.
2. Discharge high voltage capacitor, see "High Voltage
Capacitor Removal" procedure.
3. Remove outer case, see "Outer Case Removal"
procedure.
4. Remove screws securing sensor to air duct.
5. Disconnect wire terminal; replace with new sensor.
6. Reassemble in reverse order.
Oven Thermostat Removal
The oven thermostat is on the air duct assembly.
The thermostat is a resettable thermostat.
1. Disconnect power to oven and remove control panel,
see "Control Panel Removal" procedure.
2. Discharge high voltage capacitor, see "High Voltage
Capacitor Removal" procedure.
3. Remove outer case, see "Outer Case Removal"
procedure.
4. Disconnect wire terminals from oven thermostat.
NOTE: Lift upward on left rear corner of air duct to
release oven thermostat.
