Installation Instructions
Installation Instructions
11

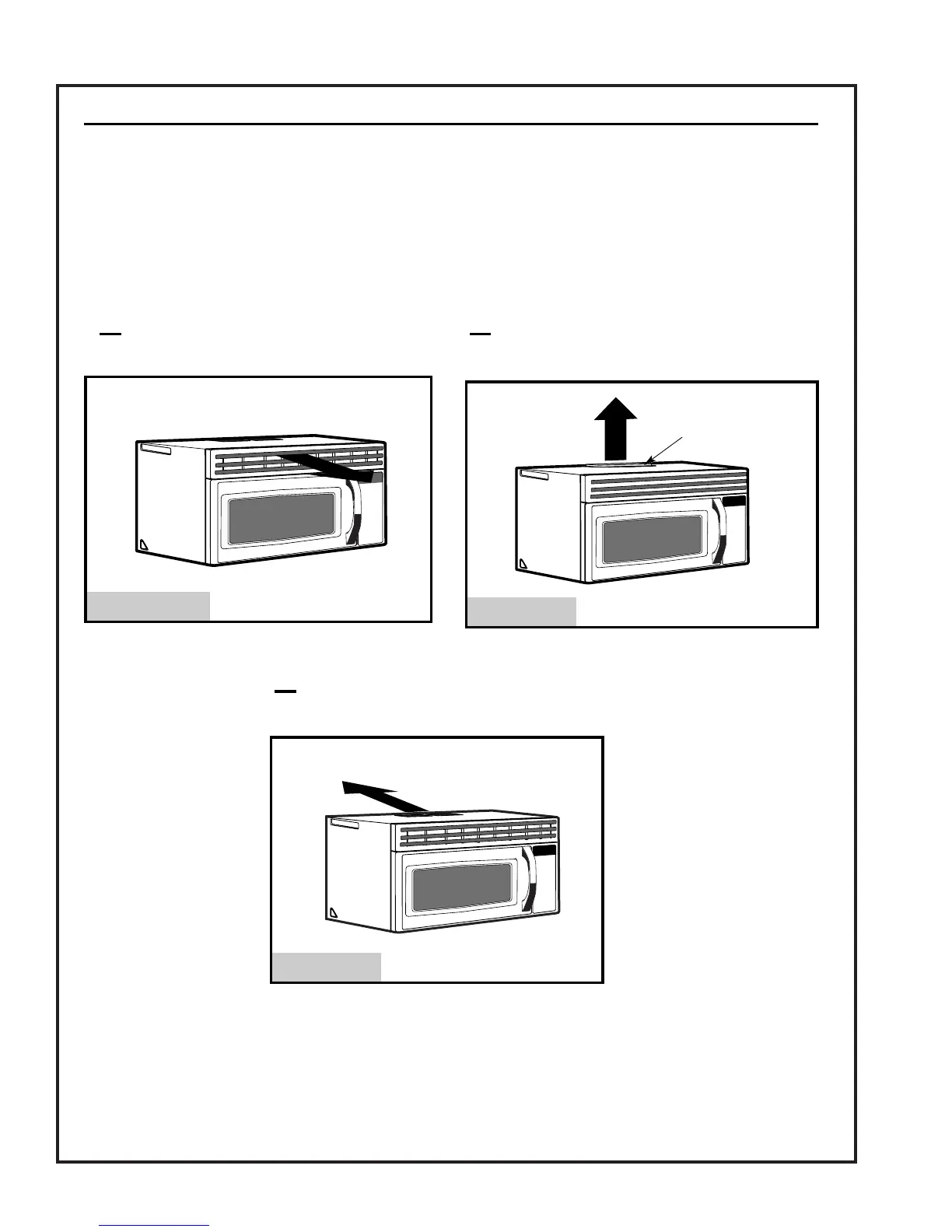

2. INSTALLATION TYPES (Choose A, B or C)
This microwave oven is designed for adaptation to
the following three types of ventilation:
A. Recirculating (Non-Vented Ductless)
B. Outside Top Exhaust (Vertical Duct)
C. Outside Back Exhaust (Horizontal Duct)
NOTE: This microwave is shipped after being
assembled for “Recirculating”. And exhaust adaptor
is shipped assembled to the filler-upper. Select the
type of ventilation required for your installation and
proceed to that section.
A.
RECIRCULATING
(NON-VENTED DUCTLESS)
B.
OUTSIDE TOP EXHAUST
(VERTICAL DUCT)
C.
OUTSIDE BACK EXHAUST
(HORIZONTAL DUCT)
See page 12
See page 14
Adaptor in Place for
Outside Top
Exhaust
See page 18
To Next Page
