16008373-01 SECTION 1. GENERAL INFORMATION 1-4

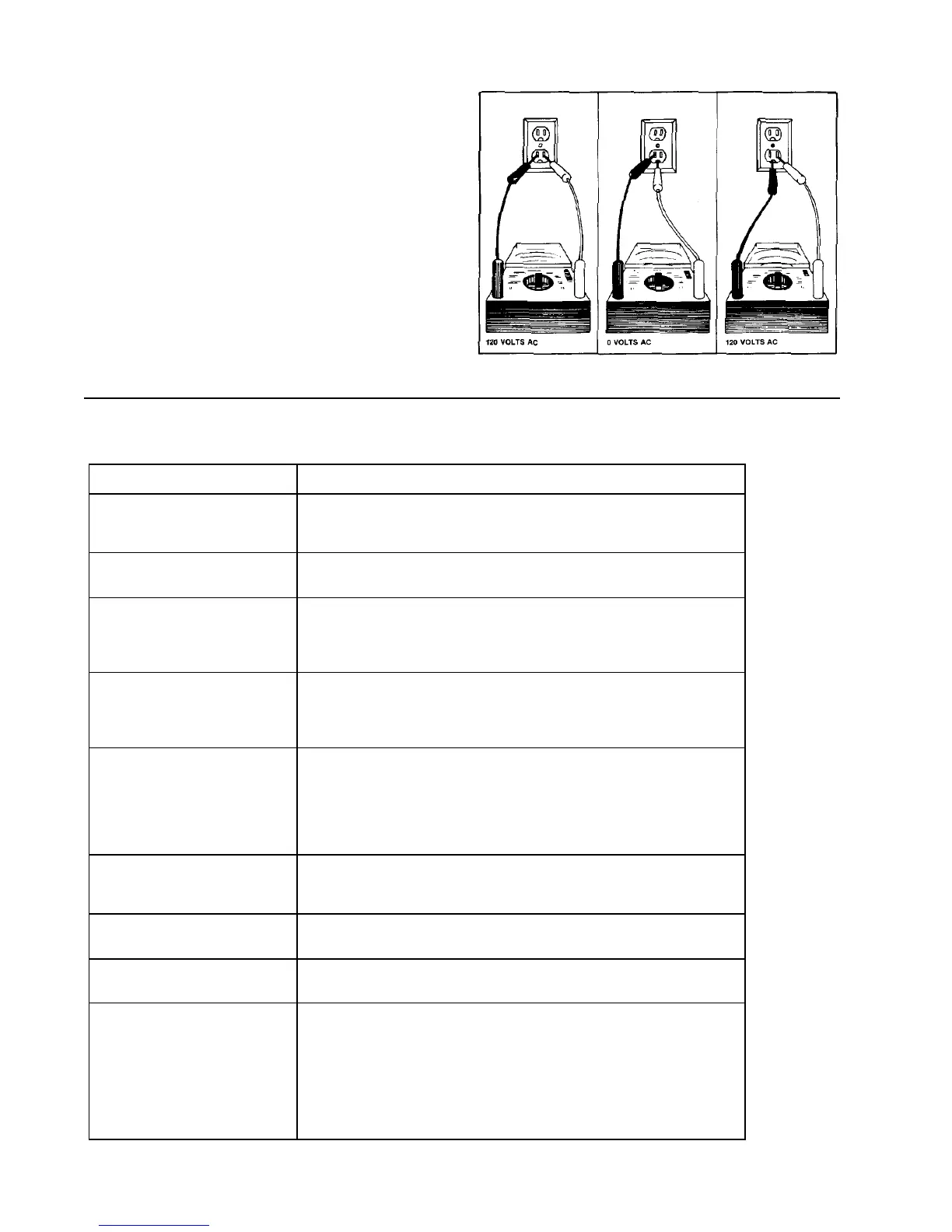

Figure 1-6

SPECIFICATIONS

Plug power cord into a properly grounded 120

volt AC-approved electrical service. This

must be protected by a dedicated 15 amp fuse

or circuit breaker.

All grounding and wiring should be performed

in accordance with national and local codes.

USE OF ADAPTERS IS NOT RECOMMENDED.

CAPACITY 3.1 Cub ic Feet

ELECTRICAL 120 volt s, 60 Hz; Requir es 15 amp circuit br eaker or fused electrical

supply. Power cord must be connected to a properly grounded and

po larized o ut let .

MOTOR Switched Reluctance Motor controlled by a microprocessor motor

control board. Motor pulley ratio (motor to spinner RPM) 14 to 1.

POWER USAGE Motor Input: During Wash Tumble - 150 Watts

Du ring Rinse Tum ble - 175 Wa tt s

Top Spin - 800 Wa tts

(Wattage readings taken with no clothes in spinner.)

TU MBLER SPEED Wash Tumble 47-51 RPM

Rinse Tum ble 47-51 RPM

High Speed Spin 800 RPM (± 50 RPM based upon optimum

spin performance.)

WATER USAGE Water pressure should be 20-120 p.s.i. (1.06-8.44 kg/cm ) at inlet hose

connection. Total water usage is approximately 25 gallons; varies w ith

clothes load. Wate r fill in th e spin b asket w ith no clothes, m easured

near the rear seam of the spin basket.

WASH LEVEL 3-4 inches

RINSE LEVEL 4-5 inches

HOSE LEN GTHS Four-foot inlet hoses with inlet washers and attaches to water valve.

Drain hose attaches to pump and will accomm odate 36" drain stand

pipe.

DIMENSIONS Cab ine t dimen sions: 27" (68.58cm) W x 27 ½” (69.85 cm ) D x 36"

(91.44cm )H .

WEIGHT (Approx.) Un car to ned 190lb. (86kg.) Approx .

Crated 200lb. (91kg). Approx .

S CREW & BO L T T O RQ U ES Bolt, Counter Weight 7in. lbs. (± 3in.lbs)

Bolt, Spin Pulley 30in. lbs (± 3in. lbs)

Bolt, Belt Adjuster 90in. lbs (± 10in. lbs)

Screw , Front Baffle 25in. lbs (± 3in. lbs)

Screw , Rear Baffle 18.5in. lbs (± 3in. lbs)

Clamp, Hoses 15+ in. lbs

Nuts, Spinner Support 18in. lbs (± 3in. lbs)

Nuts, Suspension Struts 7in. lbs (± 3in. lbs)
