Maytag Neptune MAH3000 Service Manual

© 1998 Maytag Corporation
16008373-01 SECTION 7. OUTER TUB & SPINNER ASSEMBLY
7-9
REMOVAL
1. Disconnect power to the unit.
2. Remove the front panel and lift the top
cover
(See Front Panel & Top Cover
Removal)
.
3. The switch is located on the upper right
hand side of the outer tub assembly
(Fig-
ure 7-14).
4. Remove the two screws securing the
switch to the outer tub assembly.

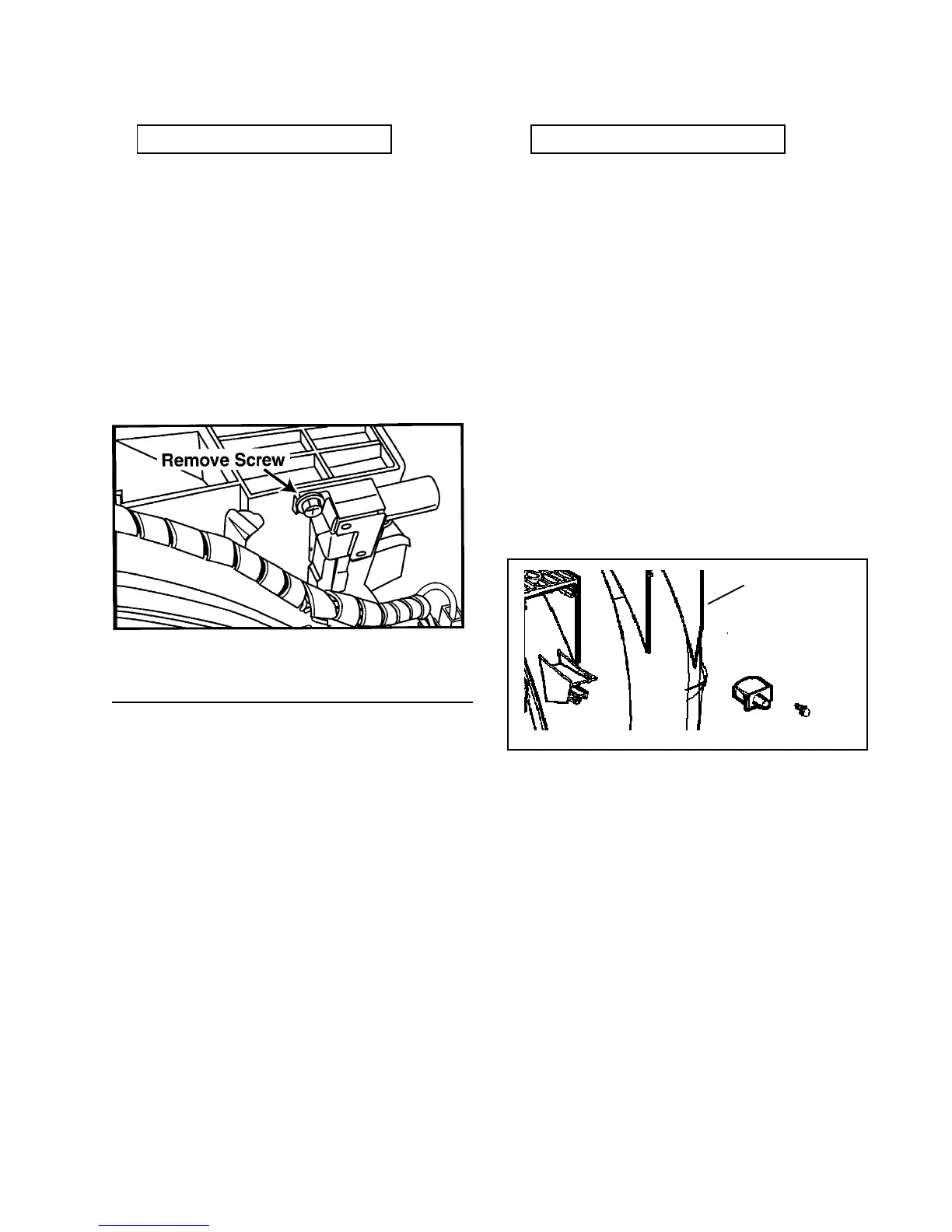

Figure 7-14
REMOVAL
1. Disconnect power to the unit.
2. Remove the front panel and lift the top
cover
(See Front Panel & Top Cover Re-
moval).
3. The switch is located on the upper right
hand side of the outer tub assembly, di-
rectly behind the right upper front suspen-
sion spring
(Figure 7-15).
4. Remove the screw and flat washer secur-
ing the switch in place.
5. Using a flathead screwdriver, pry the
switch body from the outer tub assembly.
TUB DISPLACEMENT SWITCH
The displacement switch is located on the
right hand side of the outer tub assembly, be-
low the upper weight. The location of the
switch on the outer tub will activate the switch
whenever the outer tub assembly makes con-
tact with the wall of the cabinet. Should con-
tact with the cabinet occur before the machine
reaches 500 rpm, the machine control is
alerted and will reduce speed to implement a
redistribution program.
Outer Tub
Switch
Figure 7-15
