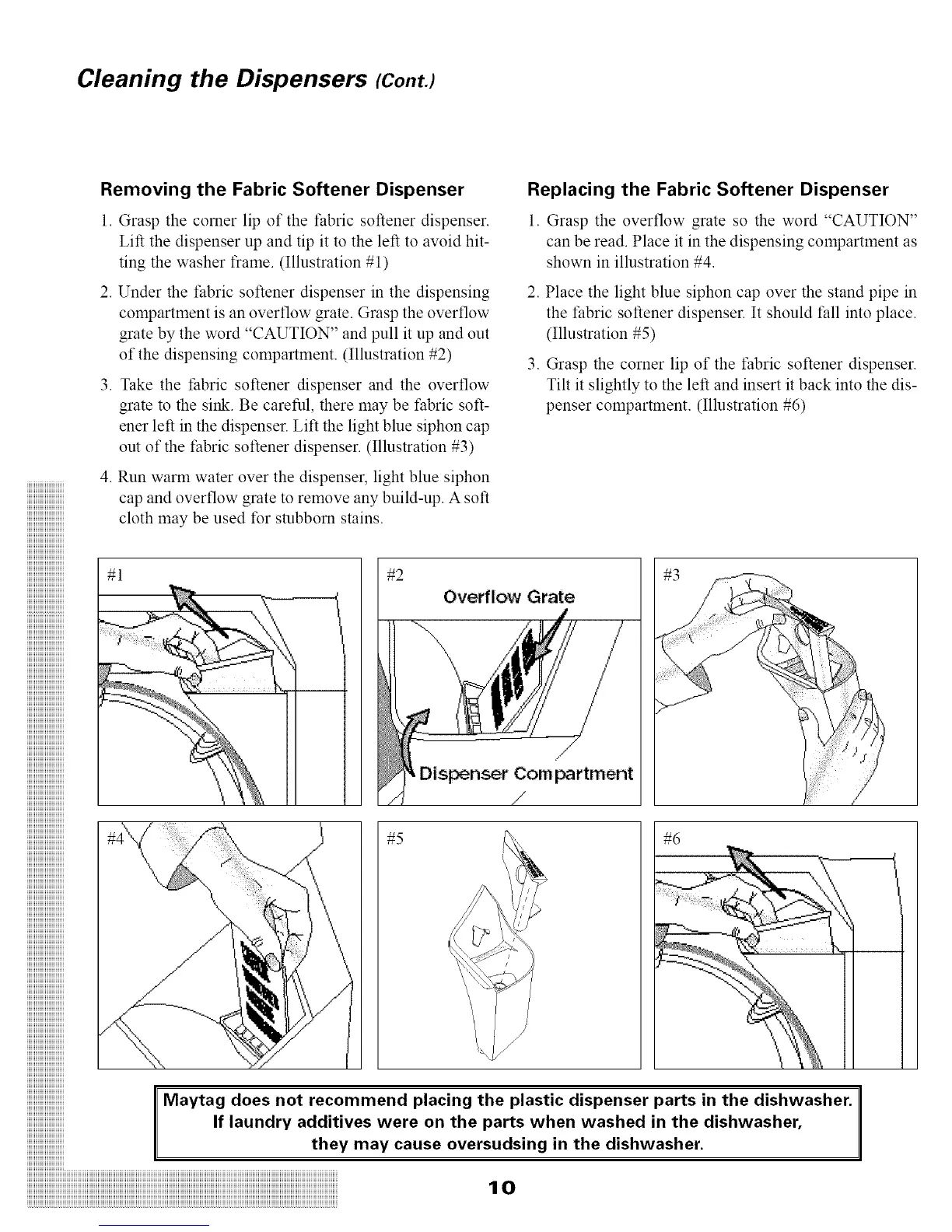

Cleaning the Dispensers (Cont.)
Removing the Fabric Softener Dispenser Replacing the Fabric Softener Dispenser
1. Grasp the comer lip of the t:abric softener dispenser.
Lift the dispenser up and tip it to the left to avoid hit-
ting the washer frame. (Illustration #1)
1. Grasp the overflow grate so the word "CAUTION"
can be read. Place it in the dispensing compartment as
shown in illustration #4.
,
.
Under the t:abric softener dispenser in the dispensing
compartment is an overflow grate. Grasp the overflow
grate by the word "CAUTION" and pull it up and out
of the dispensing compartment. (Illustration #2)
Take the fabric softener dispenser and the overflow
grate to the sink. Be careful, there may be fabric soft-
ener left in the dispenser. Lift the light blue siphon cap
out of the fabric softener dispenser. (Illustration #3)
2. Place the light blue siphon cap over the stand pipe in
the t:abric softener dispenser. It should t:all into place.
(Illustration #5)
3. Grasp the corner lip of the t:abric softener dispenser.
Tilt it slightly to the left and insert it back into the dis-
penser compartment. (Illustration #6)
