Installation instructions Connecting several solar collectors together (optional)
HeatMiser II Installation guide. © 2014, all rights reserved P a g e | 14
CONNEC TING S EVERA L S OLA R C OLLECT ORS TO GE THE R (OPT IONAL )
Connecting several units will offer a higher temperature. The HeatMiser II is a modular unit that
can be connected to additional ones if required.

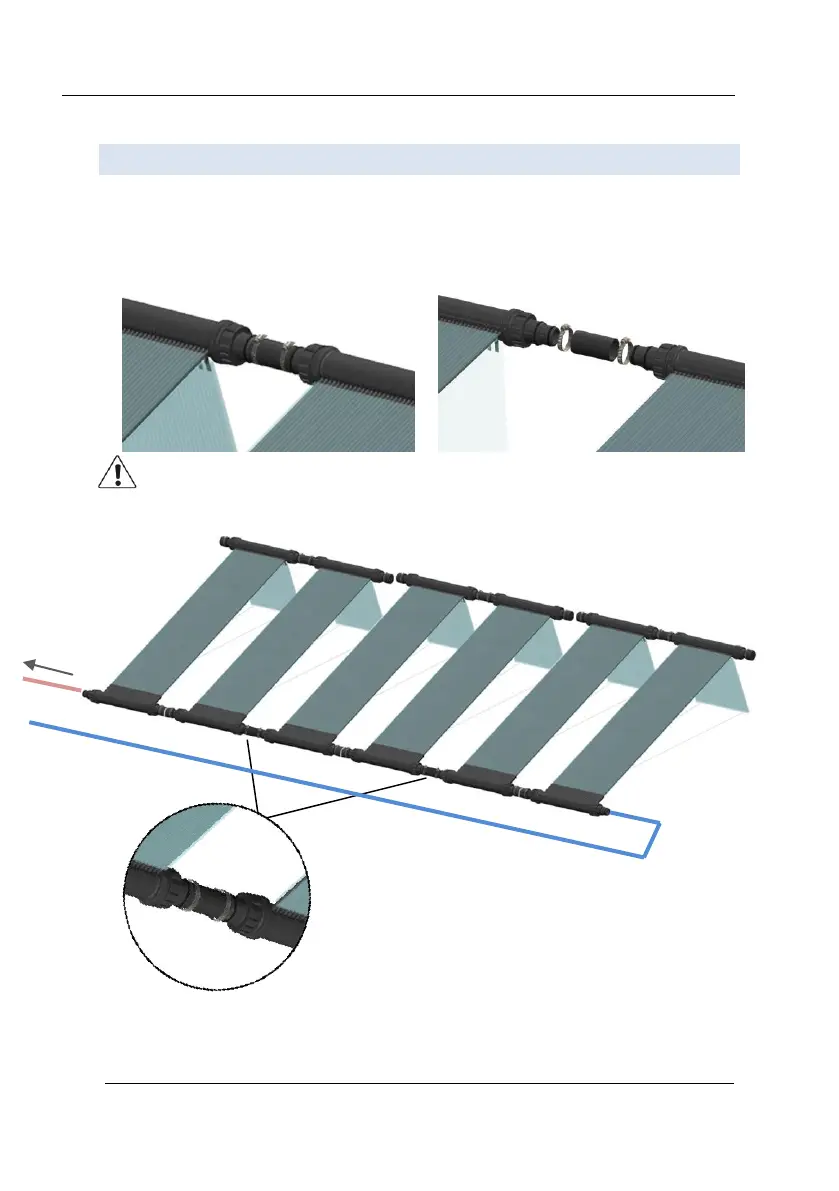

When the solar collectors are positioned and standing, use the rubber connector and metal
hose clamp (supplied) to connect one unit to another as shown below.
Attention: When connecting several units together, consider the pressure drop as 0.75 psi
for each solar panel. Make sure the pump power is adequate for such a pressure drop.
