Mazda 1990 MIATA - Side Marker Lamp; Lens & Housing Assy; Bulb; Hood

MAZDA MIATA 1990-97
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
221
madpl1_g01_

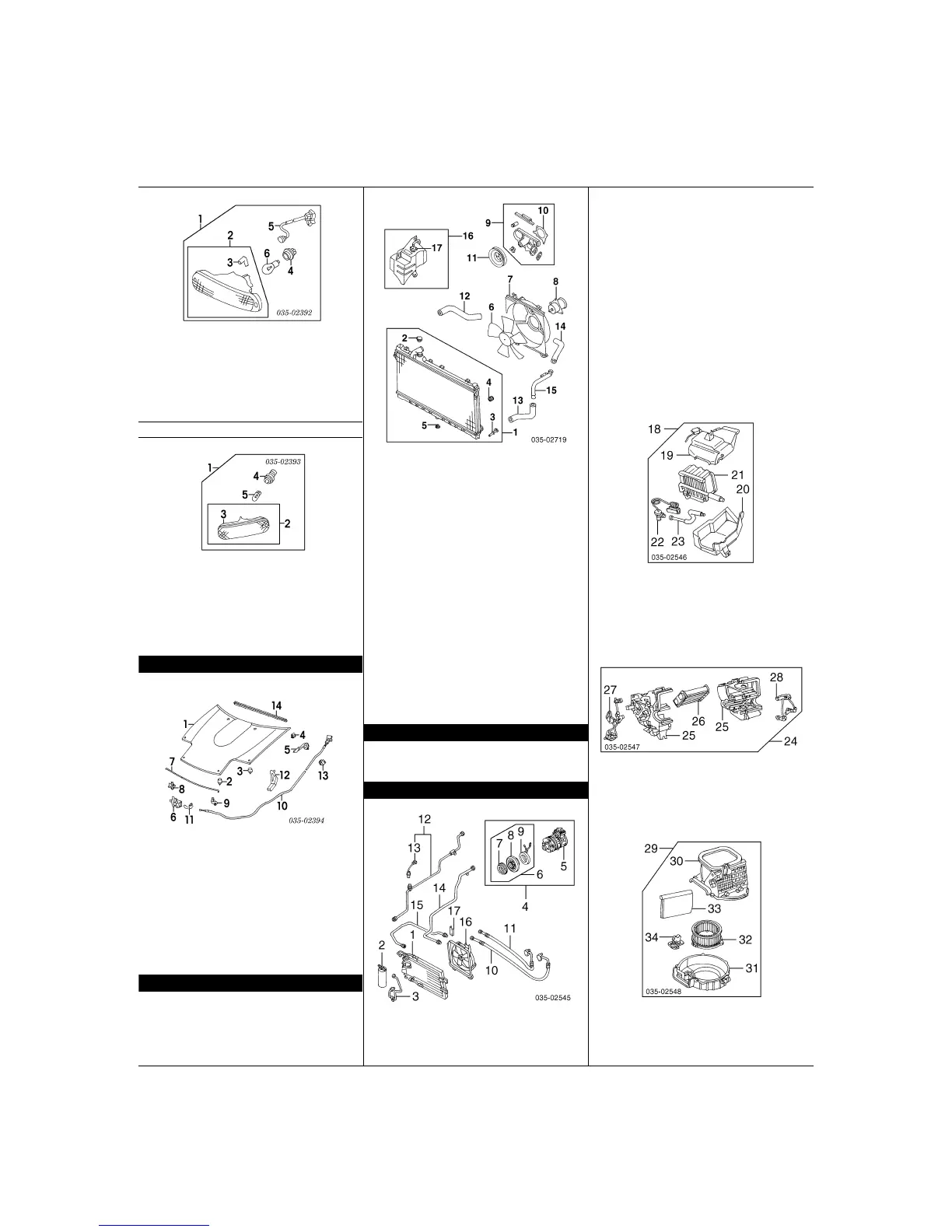

Page 221—April 22, 2004—13:33:41—Version Manufacturer
L 8BN1-51-070
2
Lens & Housing Assy¶ R NA01-51-06XA
L NA01-51-07XA
3
Tube, Lamp¶ (a) R/L NA01-51-069
(a) Included w/Lens & Housing Assy
4
Socket¶ R/L NA01-51-064
5
Wire¶
USA-Serviced w/Socket
Canada R/L N.A.
6
Bulb¶ R/L 0000-11-0194
¶Included w/Lamp Assy
SIDE MARKER LAMP
1 Lamp Assy R 8BN1-51-120
L 8BN1-51-130
2
Lens & Body Assy¶ 90 R NA01-51-5E1C
L NA01-51-5F1C
91-97 R NA01-51-5EXA
L NA01-51-5FXA
3
Gasket, Lens¶ (a) R/L NA01-51-5D3A
(a) Included w/Lens & Body Assy
4
Socket¶ R/L NA01-51-5E2
5
Bulb¶ R/L 0000-11-1157-NA
¶Included w/Lamp Assy
HOOD
1 Panel, Hood NAY1-52-310D
2
Cushion, Front Rubber R/L FB01-56-787B
3
Cushion, Center Rubber R/L FB01-56-786A
4
Cushion, Rear Rubber R/L NA01-56-78X
5
Hinge R NA01-52-410D
L NA01-52-420D
6
Latch NA01-56-620C
7
Rod, Support 90-93 NA01-56-650
94-97 NA75-56-650A
8
Holder, Rod Front G030-56-693A
9
Holder, Rod Rear B092-52-518
10
Cable, Release NA01-56-720D
11
Fastener, Cable LA01-56-631
12
Holder, Cable H115-45-916A
13
Clip, Cable G030-67-519
14
Seal, Cowl NA01-56-760
COOLING
Illustration Located in Next Column
1
Radiator Assy
Man Trans 90-93 BPE8-15-200
94-97 BPE8-15-200
Auto Trans 90-93 B64J-15-200C
94-97 BPE9-15-200
2
Cap, Radiator¶ D316-15-205
3
Cock, Drain¶ NF01-15-203
4
Mount, Rad Upper¶ R/L N326-15-202
5
Mount, Rad Lower¶ R/L B61P-15-202
¶Included w/Radiator Assy
6
Fan, Cooling
Man Trans 90-91 B61P-15-140
92-97 B61P-15-140A
Auto Trans 90-91 B6S8-15-140A
92-97 B64J-15-140
7
Shroud, Fan B61P-15-210B
8
Motor, Fan
Man Trans BPE8-15-150
Auto Trans B64J-15-150A
9
Pump Set, Water 90-94 8AB8-15-010
95-97 8ABB-15-010A
10
Gasket, Pump¶ 90-93 B6BF-15-116
94-97 B6BF-15-116
¶Included w/Water Pump Set
11
Pulley, Pump 90-93 B366-15-131A
94-97 B3C7-15-131
12
Hose, Rad Upper 90-93 B61P-15-186
94-97 BPE8-15-186
13
Hose, Frt Lower Rad 90-93 B61P-15-185
94-97 B61P-15-185
14
Hose, Rear Lower Rad B61P-15-184
15
Pipe, Lower Rad B61P-15-190
16
Tank Assy, Coolant B61P-15-350D
17
Cap, Tank¶ B61P-15-355A
¶Included w/Coolant Tank Assy
A/C REFRIGERANT CAPACITIES
A/C R-12 Refrigerant Capacity
1990-93: 28 Ozs (1.75 Lbs)
A/C R-134 Refrigerant Capacity
1994-97: 21.2 Ozs (1.32 Lbs)
A/C /HEATER
1 Condenser NA75-61-480
2
Receiver/Drier 90-93 NA01-61-500A
94-97 NA75-61-500
3
Pipe, Receiver/Drier NA75-61-467
4
Compressor Assy 90-93 NA02-61-450A
94-97 NA75-61-450
5
Compressor¶ 90-93 NA02-61-K00
94-97 NA75-61-K00
6
Clutch Assy, Magnet¶ 90-93 NA02-61-L10
94-97 NA75-61-L10
7
Armature, Clutch¶ (a) 90-93 F065-61-611
94-97 NA75-61-L11
8
Pulley, Clutch¶ (a) 90-93 NA02-61-L12
94-97 NA75-61-L12
9
Coil, Magnet¶ (a) 90-93 FD15-61-L13
94-97 NA75-61-113
¶Included w/Compressor Assy
(a) Included w/Magnet Clutch Assy
10
Hose, Suction 90-93 NA01-61-461C
94-97 NA75-61-461
11
Hose, Pressure 90-93 NA01-61-462D
94-97 NA75-61-462
12
Tube Assy, Upper A/C 90-93 NA01-61-46X
94-97 NA75-61-46XA
13
Switch, Pressure¶ 90-93 NA01-61-503
94-97 GB6H-61-503
¶Included w/Upper A/C Tube Assy
14
Tube, Lower A/C 90-93 NA01-61-468A
94-97 NA75-61-468
15
Pipe, Condenser Pressure
1990-93 NA02-61-466C
1994-97-Serviced w/Pressure Hose
16
Fan, Condenser NA01-61-710
17
Bracket, Mounting NA01-61-4H1
18
Evaporator Assy 90-93 NA75-61-520D
94-97 NA75-61-520D
19
Case, Evap Upper¶ 90-93 NA01-61-J20
94-97 NA01-61-J01A
20
Case, Evap Lower¶ NC10-61-J02
21
Core, Evaporator¶ NA75-61-520D
22
Valve, Expansion¶ 90-93 NA01-61-J14
94-97 NA75-61-J14
23
Pipe, Valve¶ NA01-61-J15
¶Included w/Evaporator Assy
24
Heater Assy 90-93 NA01-61-130A
94-97 NC10-61-130F
25
Case, Heater¶ R/L NA01-61-A01-2
26
Core, Heater¶ 90-93 NA01-61-A10
94-97 NA75-61-A10
27
Linkage, Heater Air Flow¶ NA01-61-A30A
28
Linkage, Heater Temperature¶ NA01-61-A20
¶Included w/Heater Assy
29
Blower Assy 90-93 NA01-61-140A
94-97 NC11-61-140A
30
Case, Upper¶ 90-93 NA01-61-B01
94-97 NA75-61-B01
31
Case, Lower¶ NA01-61-B02
32
Motor, Blower¶ NA01-61-B10
