MAZDA MIATA 1990-97
Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
224
madpl1_g01_
Page 224—April 22, 2004—13:33:46—Version Manufacturer

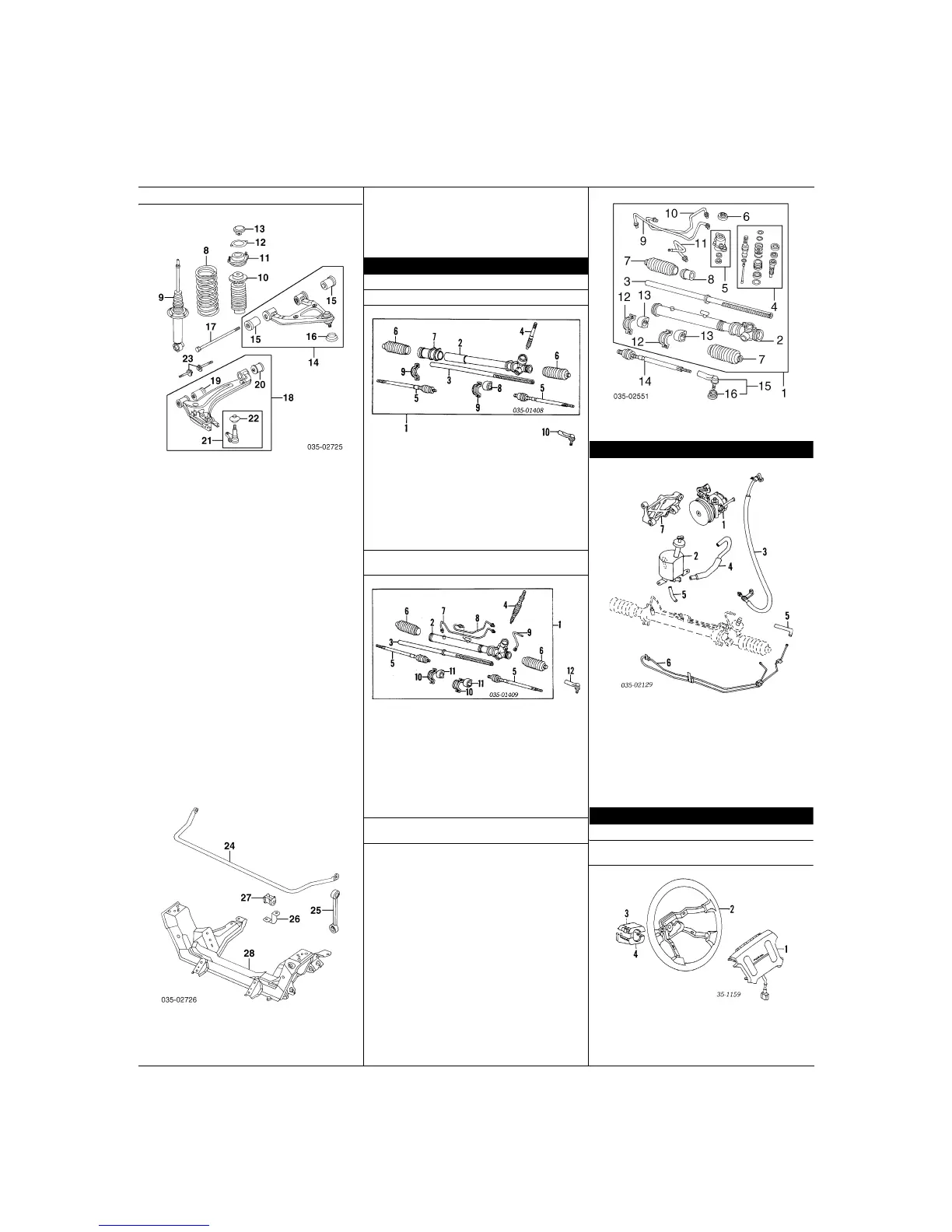

FRONT SUSPENSION Cont’d
w/o Sport Pkg
w/ABS R/L NA53-34-700B
w/o ABS R/L N018-34-700B
10
Stopper, Bumper
90-93 R/L NA01-28-111
94-97 R/L N021-34-111
11
Rubber, Mounting
R/L NA01-28-380B
12
Seat, Spring
R/L G030-28-013A
13
Cap, Strut
R/L NA01-34-019
14
Arm Assy, Upper Control
w/ABS R NA23-34-200A
L NA23-34-250A
w/o ABS R/L NA01-34-200A
15
Bushing, Upper Control Arm¶
Front/Rear (2/Side) R/L NA01-34-480A
16
Seal, Dust¶
R/L NA01-34-548
¶Included w/Upper Control Arm Assy
17
Bolt, Upper Arm
R/L NA01-34-112
18
Arm Assy, Lower Control
1990-94 R N066-34-310
L N066-34-360
1995-96
w/ABS
To 10-94 R N066-34-310
L N066-34-360
From 10-94 R N066-34-310
L N066-34-360
w/o ABS R N066-34-310
L N066-34-360
1997 R N066-34-310
L N066-34-360
Bushing, Lower Arm¶
19 Front R/L NA01-34-460A
20 Rear R/L NA01-34-490
21
Ball Joint Assy, Lower¶
R/L NA01-34-550B
22
Seal, Dust¶ (a)
R/L H266-28-448
¶Included w/Lower Control Arm Assy
(a) Included w/Lower Ball Joint Assy
23
Bolt, Adjust (2/Side)
1990-93 R/L NA80-28-66ZD
1994-96
To 11-94¶ R/L NAY9-28-6AZ
From 11-94 R/L NA75-34-4A04
1997 R/L NA80-28-66ZD
¶Add'l Parts &/or Dealer Contact Required
24
Bar, Stabilizer
1990-93 NA01-34-151A
1994 NA80-34-151
1995-97
w/Sport Pkg NA75-34-151
w/o Sport Pkg NA80-34-151
25
Link, Stab Bar
R/L NA01-34-170
26
Bracket, Stab Bar
R/L FB01-34-155
27
Bushing, Stab Bar
w/Sport Pkg R/L NA75-34-156
w/o Sport Pkg R/L NA01-34-156A
28
Crossmember, Susp
NA01-34-800E
FRONT STEERING LINKAGE/GEAR
MANUAL
1
Gear Assy
NA01-32-110
2
Housing, Gear¶
NA01-32-120
3
Rack, Gear¶
NA01-32-119
4
Pinion¶
NA01-32-122
5
Rod, Tie¶
R/L NA01-32-240
6
Boot, Outer¶
R/L NA01-32-12X
7
Mount, Rubber¶
NA01-32-123
8
Bushing, Mounting¶
NA01-32-124
9
Bracket, Mounting¶
R BC51-32-133
L NA01-32-134
¶Included w/Gear Assy
10
End, Tie Rod
R/L 8AN1-32-280
POWER
1990-95
1
Gear Assy
NA02-32-110R-00
2
Housing, Gear¶
NA02-32-120
3
Rack, Gear¶
NA02-32-119
4
Pinion¶
NA02-32-380
5
Rod, Tie¶
R/L NA02-32-240
6
Boot, Outer¶
R NA02-32-125
L NA02-32-135
7
Pipe, Upper Fluid¶
NA02-32-481
8
Pipe, Lower Fluid¶
NA02-32-482
9
Pipe, Fluid Return¶
NA02-32-452
10
Bracket, Mounting¶
R/L NA02-32-134-3
11
Bushing, Mount¶
R/L NA02-32-124-3
¶Included w/Gear Assy
12
End, Tie Rod
R/L 8AN1-32-280
POWER
1996-97
Illustration Located in Next Column
1
Gear Assy
96 NB38-32-110R-0B
97 NB38-32-110R-0B
2
Housing, Gear¶
NB38-32-120
3
Rack, Gear¶
NB38-32-119
4
Pinion¶
NB38-32-380
5
Seal, Shaft¶
NB38-32-126
6
Cover, Lever¶
NB38-32-112
7
Boot, Outer¶
R/L NB38-32-125
8
Holder, Strg Gear¶
NB38-32-154
9
Pipe, Upper Fluid¶
NB38-32-450
10
Pipe, Lower Fluid¶
NB39-32-450
11
Pipe, Fluid Return¶
96 NA02-32-452
97 NB38-32-480
12
Bracket, Mounting¶
96 R/L NA02-32-134-3
97 R NA02-32-134
L NB38-32-133
13
Bushing, Mount¶
R/L NA02-32-124-3
¶Included w/Gear Assy
14
Rod, Tie
R/L NA02-32-240
15
End Assy, Tie Rod
R/L 8AN1-32-280
16
Seal, Dust¶
R/L B455-32-279
¶Included w/Tie Rod End Assy
STEERING PUMP
1
Pump, Steering
N002-32-600R-0F
2
Reservoir, Fluid
90-96 NA02-32-690A
97 NB11-32-690
Belt, Drive
1990-93 BPE8-15-909A
1994-97
w/ A/C BPE8-15-909A
w/o A/C B61P-15-907A
3
Hose, Pressure
NA02-32-490C
4
Hose, Return
NA02-32-684B
5
Hose, Cooler Inlet/Outlet
NA02-32-682
6
Pipe, Strg Return/Cooler
NA02-32-410A
7
Bracket, Pump
NA02-32-680
STEERING WHEEL/COLUMN
WHEEL & TRIM
1990-93
1
Module, Air Bag-See Air Bag System Section
Pad, Center
B461-32-800A
2
Wheel, Steering
Urethane NA01-32-980D
Leather NA02-32-980D
3
Cover, Column Upper
NA01-60-220-00
To Next Page
