MAZDA MIATA 1990-97
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
227
madpl1_g01_
Page 227—April 22, 2004—13:33:51—Version Manufacturer
5
Clip, Hood Support
H260-56-724
6
Panel, Upper Dash
90 NA01-70-62YA
91-97 NA01-70-62YD
7
Panel, Lower Dash
NA01-54-400J
Insulator, Dash
90 NA01-68-631A
91-93 NA01-68-631C
94-97 NA01-68-631D
8
Joint, Dash Panel
R/L NA01-54-480B

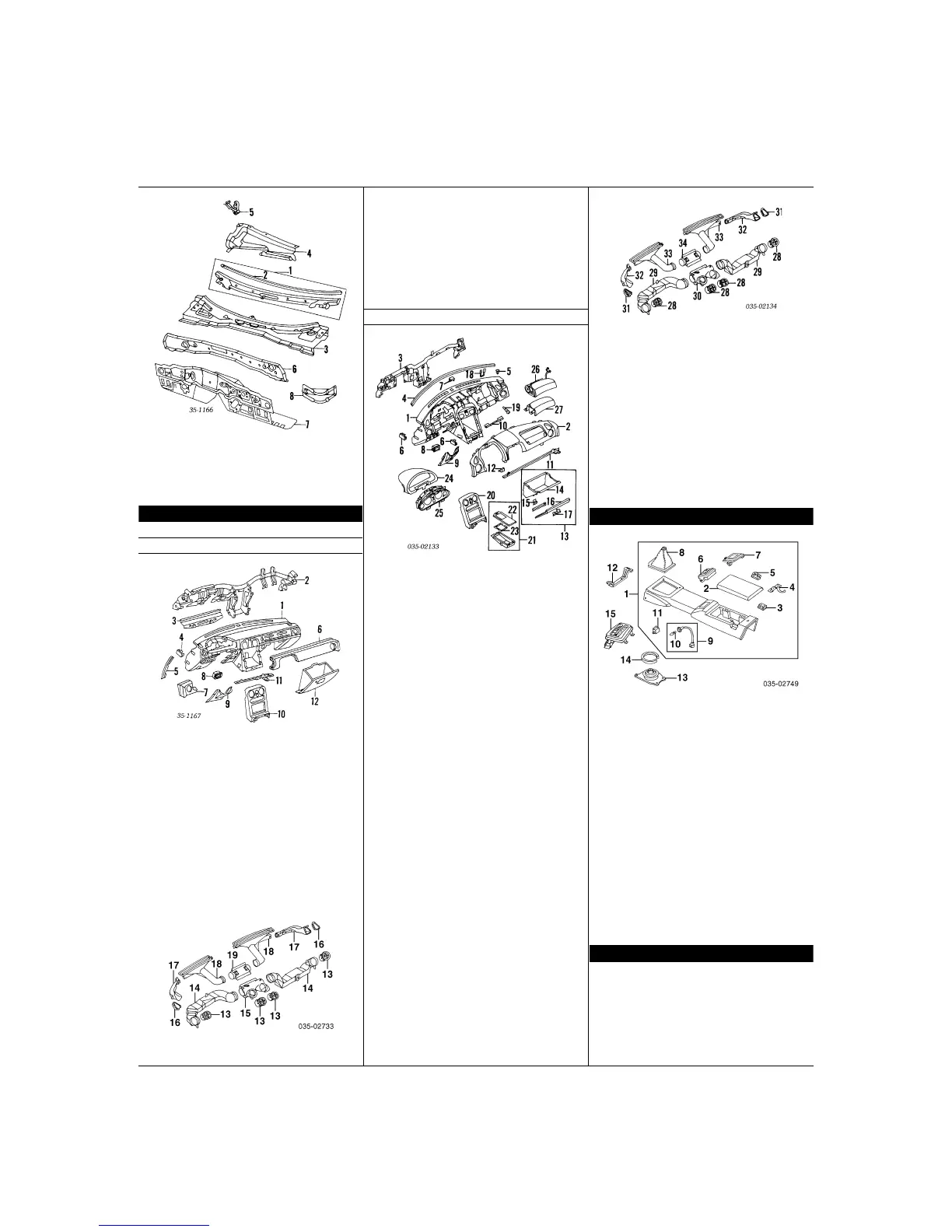

INSTRUMENT PANEL
1990-93
1
Panel, Instrument
Black/Black NA01-60-401D-00
Black/Tan NA02-60-401-88
2
Frame
NA01-60-420E
3
Bracket, Instrument Panel
NA01-60-462A
4
Cover, Hole (6)
NA01-64-912A-00
5
Cover, Side-Not Serviced
6
Pad, Safety
Black NA01-60-350-00
Tan NA01-60-350-88
7
Extension, Safety Pad
Black NA01-60-35X-00
Tan NA01-60-35X-88
8
Box, Panel
NA01-55-241A-00
9
Cover, Strg Column
Black NA01-64-270E-00
Tan NA01-64-270E-88
10
Cover, Center
NA01-55-210B-00
11
Bracket, Center
NA01-60-430C
Brkt, Safety Pad
NA01-60-435
12
Glove Box
Black NA01-64-030E-00
Tan NA01-64-030E-88
13
Nozzle, Vent (4)
N001-64-81X-00
14
Duct, Front Outer
R NA01-64-741
L NA01-64-841
15
Duct, Front Center
NA01-61-161A
16
Grille, Side Defrost
90-91 R NA01-60-161-00
L NA01-60-171-00
92-93 R N002-60-161-00
L N002-60-171-00
17
Duct, Side Defrost
R NA01-60-183
L NA01-60-193
18
Nozzle, Defrost
R NA01-60-121A
L NA01-60-141
19
Connector, Defrost
NA01-61-253
Radio¶
AM-FM 0000-81-9445-HB
AM-FM-Cassette 0000-81-5092
¶Order by Application
1994-97
1
Panel, Instrument
Black 94-96 NA75-60-401G-00
97 NA75-60-401G-00
Black/Tan NA75-60-401G-88
2
Pad, Impact
NA75-60-350B-00
3
Support, Panel
94-96 NA75-60-420B
97 NB38-60-420A
4
Strip, Panel Front
NA75-60-353
5
Clip, Trim (4)
W201-68-AA5A-00
Plug, Bolt-Hole
6 Side (6)
Black NA01-64-912A-00
Tan NA01-64-912A-88
7 Center NA01-64-905A-00
8
Cover, Panel (3)
NA01-55-241A-00
9
Panel, Under-Column
Black NA75-64-270C-00
Tan 94-96 NA75-64-270C-88
97 NA75-64-270C-88
10
Bracket, Pad
NA01-60-463
11
Reinf, Pad
94 NA01-60-430E
95-97 NA01-60-430E
12
Bracket, Reinf Inner
NA01-60-435
13
Glove Box Assy
Black 94-96 NA75-64-030D-00
97 NA75-64-030D-00
Tan 94-96 NA75-64-030F-88
97 NA75-64-030F-88
14
Box, Glove¶
NA75-64-161C-00
15
Hinge, Box¶ (2)
NA75-64-03XA
16
Lid, Box Outer¶
Black 94-96 NA75-64-041C-00
97 NA75-64-041C-00
Tan 94-96 NA75-64-041C-88
97 NA75-64-041C-88
17
Lock, Glove Box¶
Black 94-96 BC1D-64-090C-02
97 BC5E-64-090E-00
Tan 94-96 BC1D-64-090-88
97 BC5E-64-090E-67
¶Included w/Glove Box Assy
18
Striker, Glove Box
BC1D-64-101
19
Bumper, Door (2)
B092-64-046
20
Panel, Center
w/CD Player NA75-55-210A-00
w/o CD Player NB38-55-210A-00
21
Ashtray Assy
94-96 NA01-64-617-00
97 NA01-64-610B-00
22
Holder, Ashtray¶
NA01-64-623-00
23
Lid, Ashtray¶
NA01-64-617-00
¶Included w/Ashtray Assy
24
Hood, Instrument
Black Panel NA75-55-420B-00
Tan Panel NA79-55-420B-00
25
Meter, Instrument
1994-96 NA75-55-430A
1997
USA
Type A NB13-55-430B
Type B NB39-55-430
Canada N.A.
26
Module, Passenger Air Bag
-See Air Bag System Section
27
Cover
w/o Air Bag (Canada) N.A.
28
Nozzle, Vent (4)
N001-64-81X-00
29
Duct, Front Outer
R NA75-64-741
L NA75-64-841
30
Duct, Front Center
NA75-61-161A
31
Grille, Side Defrost
Black Panel R NA75-60-160A-00
L NA75-60-170A-00
Tan Panel R NA79-60-160A-00
L NA79-60-170A-00
32
Duct, Side Defrost
R NA75-60-183
L NA75-60-193
33
Nozzle, Defrost
94-96 R NA75-60-121
L NA01-60-141
97 R NA75-60-121B
L NA01-60-141
34
Connector, Defrost
NA01-61-253
Radio Unit¶
AM-FM-Cassette (a) 94-96 0000-81-191A-M5
97 0000-81-6690
AM-FM-Cassette-CD 94-96 NA54-66-9W0
97 NB41-66-9C0
¶Order by Application
(a) Add'l Parts &/or Dealer Contact Required
CENTER CONSOLE
1
Console Assy (b)
Man Trans
Man Windows N007-64-410D-00
Pwr Windows N008-64-410D-00
Auto Trans
Man Windows NA03-64-410E-00
Pwr Windows NA06-64-410F-00
(b) Order by Application
2
Lid, Console¶
NA01-64-450B-00
3
Lock, Lid¶
FB01-64-430
4
Stopper, Lid¶
NA01-64-452-00
5
Hinge, Lid¶ (2)
NA01-64-45XA-00
6
Switch, Power Window¶ (a)
NA01-66-350A-00
(a) Order by Application
7
Box, Coin¶
NA01-64-437-00
8
Boot, Shift¶
Man Trans NA01-64-331-00
9
Bulb & Socket Assy¶
Man Trans NA01-55-280
Auto Trans NA06-55-280
10
Bulb¶ (a)
0000-11-0074
(a) Included w/Bulb/Socket Assy
11
Case, Lamp¶
NA01-64-414
¶Included w/Console Assy
12
Bracket, Mounting
NA01-64-416
13
Insulator, Shift Boot
Man Trans NA01-64-481B
14
Gasket, Boot
Man Trans H001-64-493
15
Indicator, Shift
Auto Trans NA81-64-350C
ROCKER/PILLARS/FLOOR
Illustration Located in Next Column
1
Panel, Cowl Side
Inner R NA01-70-020B
L NA01-71-020B
Panel, Cowl Trim
Black 90-93 R NA01-68-370-00
To Next Page
