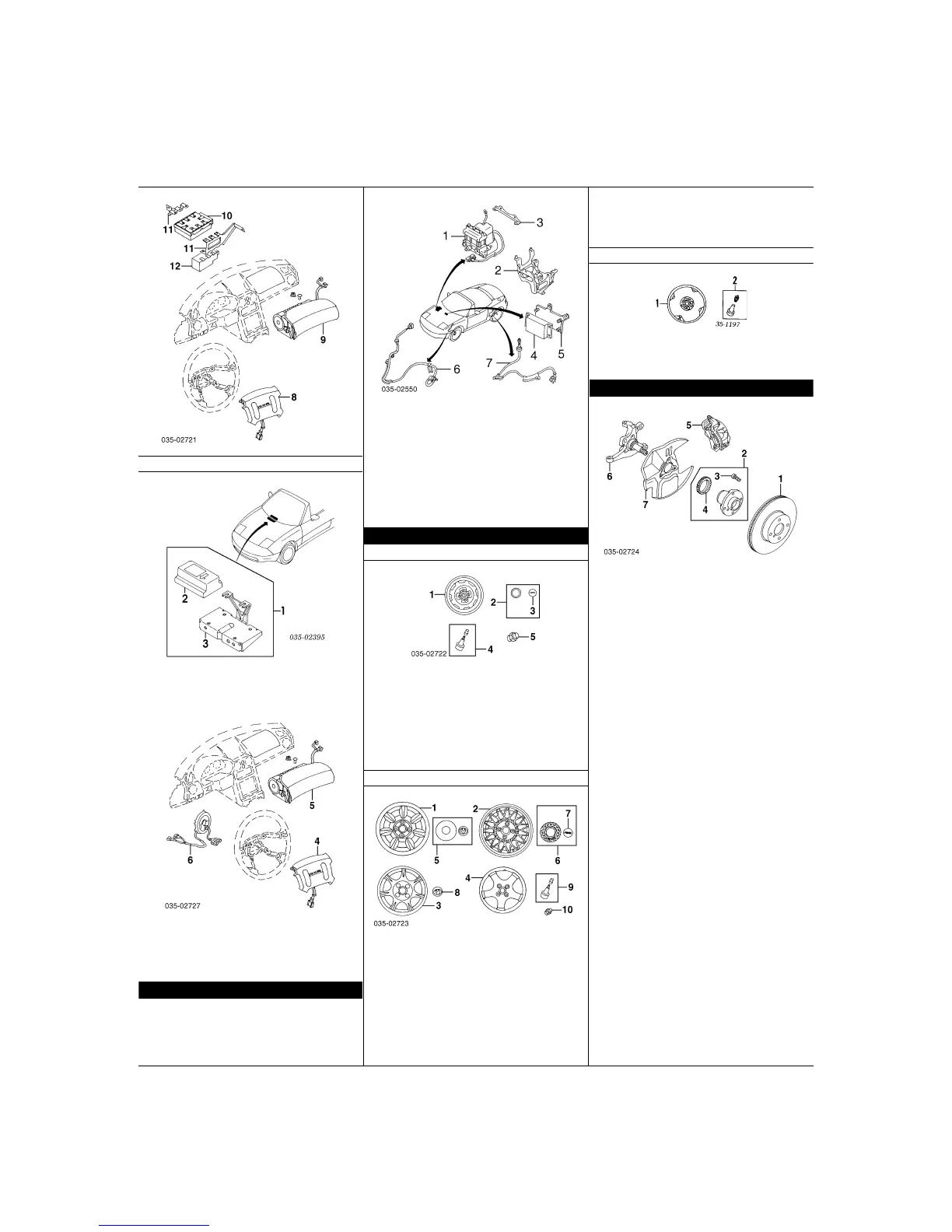

MAZDA MIATA 1990-97
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
223
madpl1_g01_
Page 223—April 22, 2004—13:33:45—Version Manufacturer
1995-97
1
Sensor Assy, Air Bag¶
N034-57-K30B
¶Add'l Parts &/or Dealer Contact Required
2
Sensor, Air Bag¶
N034-57-K30B
3
Bracket, Sensor¶
N034-57-KX0A
¶Included w/Air Bag Sensor Assy
4
Module, Driver Air Bag
NB11-57-K00-00
5
Module, Passenger Air Bag
NB29-57-K7X-00
6
Clockspring¶ (a)
1997 NB17-66-CS0A
¶1995-96-Serviced w/Combination Switch Assy-See Steering
Wheel/Column Section
(a) Included w/Combination Switch Assy
ABS/BRAKES
Illustration Located in Next Column
1
Hydraulic Unit, ABS
90-94 NA23-43-7A0C
95 NA13-43-7A0A
96-97 NA13-43-7A0B
2
Brkt, Hydraulic Unit
90-94 NA23-43-310B
95-97 NB13-43-310A
3
Bracket, Upper
95-97 NB13-43-321A
4
Control Unit, ABS¶
90-94 NA17-67-650A
95-97 N036-67-650
5
Bracket, ABS Control Unit
1990-94¶-Serviced w/ABS Control Unit
1995-97 NB13-67-B4X
¶Included w/ABS Control Unit
6
Sensor, ABS Front
R NA23-43-70XE
L NA23-43-73XE
7
Sensor, ABS Rear
R NA23-43-71YB
L NA23-43-72YB
WHEEL
STEEL WHEEL
1
Wheel
14x5-1/2JJ" 9965-B9-5540
2
Cap Assy, Center
90-93 B455-37-190
94-96 NA53-37-190
97 B455-37-191
3
Emblem¶
90-92 B001-37-192
93-96 GA7C-37-192
97 N.A.
¶Included w/Center Cap Assy
4
Stem, Valve
9963-60-4130
5
Nut, Lug
w/Chrome B002-37-160A
w/o Chrome 0603-26-161A
ALUMINUM WHEEL
Wheel
1 14x5-1/2" (7 Spoke) 90-91 8BN1-37-600
93 8BN5-37-600
2 14x6" BBS 92-93 8BN4-37-600
94 9965-09-6040
95-97 9965-C3-6050
3 14x6" 7 Spoke
Silver 94-97 9965-13-6040
Polished 94-97 9965-19-6040
4 15x6" 5 Spoke 95-97 9965-E8-6050
5
Cap, Center
14x5-1/2" (7 Spoke) 90-92 NA01-37-190A
93 NA52-37-190A
Cap, Center (BBS Wheel)
6 Cap Set M011-37-190
7 Emblem¶ M011-37-192
¶Included w/Cap Set
8
Cap, Center (Spoke Wheels)
EA02-37-192
9
Stem, Valve
9963-60-4130
10
Nut, Lug
w/Chrome B002-37-160A
w/o Chrome 0603-26-161A
SPARE WHEEL
1
Wheel
14x4T" 90-93 9965-15-4040
94-96 9965-18-4040
97 N.A.
2
Stem, Valve
9963-60-4130
FRONT SUSPENSION
1
Rotor, Brake
90-93 R/L B25Y-33-25XB
94-97 R/L N026-33-25XC
2
Hub Assy
w/ABS 90-93 R/L NA23-33-04XA
94-97 R/L NA23-33-04XA
w/o ABS R/L NA01-33-04X
3
Bolt, Hub¶ (4/Side)
R/L B455-33-062
4
Ring, ABS Sensor¶
R/L NA23-33-471B
¶Included w/Hub Assy
Sensor, ABS-See Anti-Lock Brake System Section
5
Caliper, Brake
1990-93
w/ABS R NAY0-33-98ZR
L NAY0-33-99ZR
w/o ABS R N001-33-980
L NAY0-33-99ZR
1994-96 R NAY5-33-98ZR
L NAY5-33-99ZR
1997 R NAY5-33-98ZR
L NAY5-33-99ZR
Hose, Brake
90-93 R NA01-43-810B
L NA01-43-820B
94-97 R NA75-43-810A
L NA75-43-820A
6
Knuckle Assy
w/ABS 90-94 R NA23-33-021A
L NA23-33-031A
95-97 R NA23-33-021B
L NA23-33-031B
w/o ABS 90-94 R NA01-33-021A
L NA01-33-031A
95-97 R NA01-33-021B
L NA01-33-031B
7
Shield, Splash
1990-93¶
w/ABS R NA23-33-261
L NA23-33-271
w/o ABS R NA01-33-261
L NA01-33-271
1994-97 R NA75-33-261
L NA75-33-271
¶Included w/Knuckle Assy
Illustration Located in Next Column
8
Spring, Coil
Man Trans 90-93 R/L NA01-34-011A
94-97 R/L NA03-34-011
Auto Trans 90-93 R/L NA03-34-011
94-97 R/L NA81-34-011
9
Strut
1990-93
w/ABS R/L NA23-34-700B
w/o ABS R/L NA01-34-700
1994
w/ABS R/L NA53-34-700B
w/o ABS R/L N018-34-700B
1995-97
w/Sport Pkg R/L N023-34-700D
To Next Page
