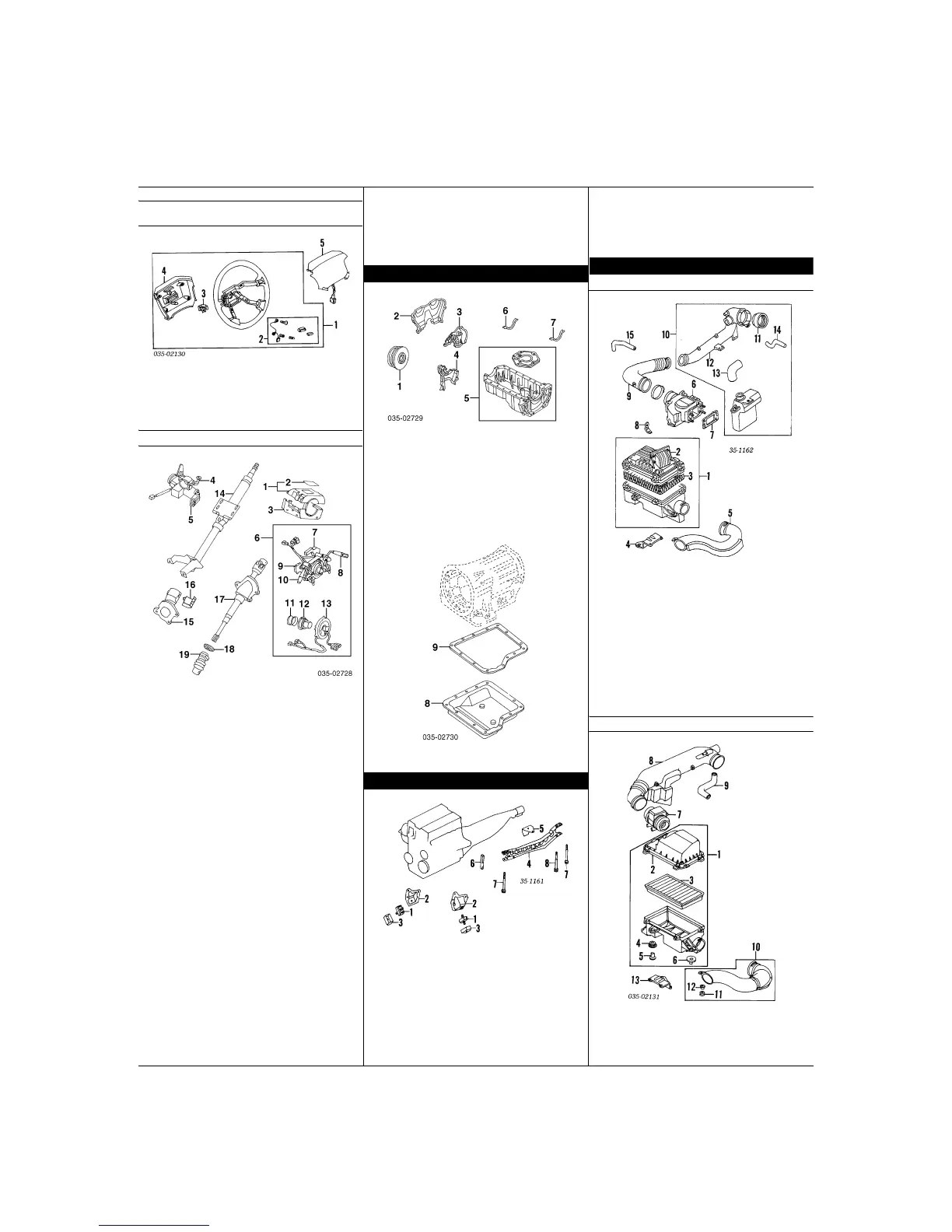

Mazda 1990 MIATA - Wheel & Trim; Wheel Assy, Steering; Parts Kit, Wheel; Column

MAZDA MIATA 1990-97
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
225
madpl1_g01_
Page 225—April 22, 2004—13:33:48—Version Manufacturer
4 Cover, Column Lower NA01-60-230A-00
WHEEL & TRIM
1994-97
1 Wheel Assy, Steering
Urethane Wrap Wheel NA01-32-980D
Leather Wrapped Wheel NA02-32-980D
2
Parts Kit, Wheel¶ NA01-32-750
3
Bracket, Coupler¶ NA01-32-019
4
Cover, Wheel Front¶ NA01-32-049
¶Included w/Steering Wheel Assy
5
Module, Air Bag-See Air Bag System Section
COLUMN
1 Cover Assy, Column Upper NA01-60-220-00
2
Cap, Upper Cover¶ NA01-60-223-00
¶Included w/Column Upper Cover Assy
3
Cover, Column Lower NA01-60-230A-00
4
Lock Assy, Ignition
Man Trans 90-94 NA01-76-290F
95 NA75-76-290C
96-97 NA75-76-290C
Auto Trans 90-94 N022-76-290C
95 NA81-76-290C
96-97 NA81-76-290C
5
Switch, Ignition¶ D001-66-151A
¶Included w/Ignition Lock Assy
6
Switch Assy, Combination
1990-96
w/Air Bag
w/Cruise Control NB18-66-120A
w/o Cruise Control NB17-66-120A
w/o Air Bag
Base Model NA08-66-120C
1997
w/Cruise Control NB18-66-120A
w/o Cruise Control NB17-66-120A
7
Switch, Wiper¶ 97 NA02-66-135
8
Lever, Wiper¶
w/Cruise Control 97 NA02-66-128
w/o Cruise Control 97 NA01-66-128
9
Switch, Dimmer¶ 97 NA02-66-136
10
Switch, Headlamp¶ 97 NA02-66-122
11
Spring, Cancel Cam¶ 97 H384-66-121
12
Cam, Cancel¶ 97 NA02-66-126
13
Clockspring¶-See Air Bag System Section
¶Included w/Combination Switch Assy
14
Shaft
1990-93
w/Air Bag NA01-32-100B
w/o Air Bag NA07-32-100B
1994-96 NA75-32-100A
1997 NA75-32-100A
15
Cover, Joint 90-93 NA01-32-AZ1B
94-97 NA75-32-AZ1
16
Cover, Joint Lower
1990-96
USA-Serviced w/Joint Cover
Canada N.A.
1997 NA01-32-AZ1B
17
Shaft, Intermediate
1990-93
Man Strg NA01-32-090B
Pwr Strg NA02-32-090B
1994-97
Man Strg NA01-32-090D
Pwr Strg NA02-32-090D
18
Grommet NA01-32-217
19
Joint, Steering 90-93 NA01-32-850
94-96 NA01-32-850B
97 NA01-32-850B
ENGINE/TRANS
1 Pulley, Crankshaft
1990-93
To Eng 209446 B6S7-11-401A
From Eng 209446 B6S8-11-401
1994-97 BPD3-11-401A
2
Cover, Upr Front Timing B61P-10-510
3
Cover, Upr Ctr Timing B660-10-521B
4
Cover, Lwr Ctr Timing B660-10-501E
5
Pan, Eng Oil 90-93 B6Y0-10-400D
94-97 BPY0-10-400D
6
Seal, Front Eng Pan B6F4-10-427
7
Seal, Rear Eng Pan B6F4-10-428
Sealant, Eng Oil Pan 8527-77-739
8
Pan, Trans Oil BV02-19-836
9
Gasket, Trans Oil Pan BT28-19-835
ENGINE MOUNTS
1 Mount, Engine R/L NA01-39-040A
2
Bracket, Mount 90-93 R NA01-39-020
L NA01-39-030
94-97 R NA75-39-021
L NA75-39-030
3
Casing, Stopper 90-96 R/L NA01-39-041B
97 R/L NA01-39-041B
4
Support, Trans
1990-93
Man Trans NC10-39-710B
Auto Trans NC13-39-710A
1994-97
To 10-94
Man Trans NC10-39-710B
Auto Trans NA81-39-710A
From 10-94
Man Trans NC10-39-710B
Auto Trans NC13-39-710A
5
Bracket, Support
Man Trans NA01-39-730A
6
Spacer, Bolt NA01-39-723
7
Bolt, Outer Support (3) NA01-39-721A
8
Bolt, Inner Support (1) NA01-39-722
AIR CLEANER
1990-93
1 Cleaner Assy, Air B61P-13-320A
2
Cover, Air Cleaner¶ B61P-13-Z01
3
Element, Cleaner¶ B6S7-13-Z40-9U
¶Included w/Air Cleaner Assy
4
Brkt, Air Cleaner Mtg B61P-20-211
5
Duct, Air B61P-13-200C
6
Meter, Air Flow B6S7-13-210R-0A
7
Gasket, Meter B6S7-13-211A
8
Brkt, Mtg Air Flow Meter B61P-13-311B
9
Hose, Air Flow Meter B61P-13-221B
10
Resonator Assy
Man Trans B61P-13-330E
Auto Trans B64J-13-330
11
Joint, Rubber¶ B61P-13-245
12
Pipe, Air Intake-Serviced w/Resonator Assy
13 Hose, Resonator¶ B61P-13-206A
14
Hose, Air Intake Pipe¶ B61R-13-765
¶Included w/Resonator Assy
15
Hose, Ventilation B61P-13-742C
1994-97
1 Cleaner Assy, Air BPE8-13-320
2
Cover, Air Cleaner¶ BPE8-13-Z01
3
Element, Cleaner¶ B6S7-13-Z40-9U
4
Bushing, Mounting¶ (3) FE51-13-363
5
Spacer, Mounting¶ (3) FE51-13-329
6
Mount, Rubber¶ B61P-13-Z66
