Meters and Gauges
Type A
Type B
Type C
Steering Switch
(Digital Speed Meter Type)
(Analog Speed Meter Type (With Tachometer))
(Analog Speed Meter Type (Without Tachometer))
Some models.

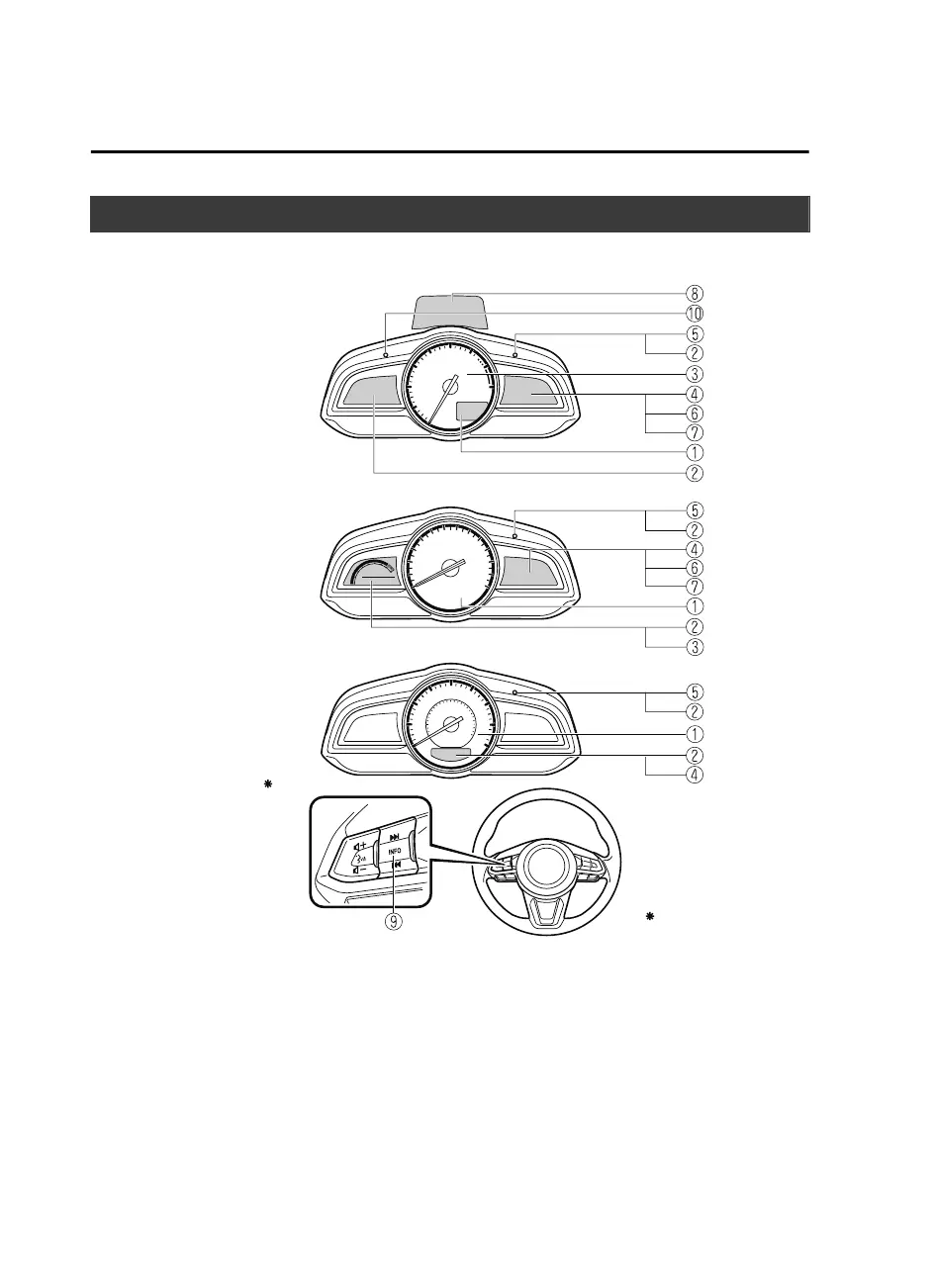

Instrument Cluster
① Speedometer..........................................................................................................page 4-13
② Odometer, Trip Meter and Trip Meter Selector.................................................... page 4-13
③ Tachometer............................................................................................................page 4-15
④ Fuel Gauge............................................................................................................ page 4-15
⑤ Dashboard Illumination.........................................................................................page 4-16
⑥ Outside Temperature Display................................................................................page 4-17
⑦ Cruise Control Set Vehicle Speed Display............................................................page 4-17
⑧ Active Driving Display......................................................................................... page 4-20
