Mazda 3 2018 - Fuse Panel Description; Fuse Block (Engine Compartment)

▼
Fuse Panel Description

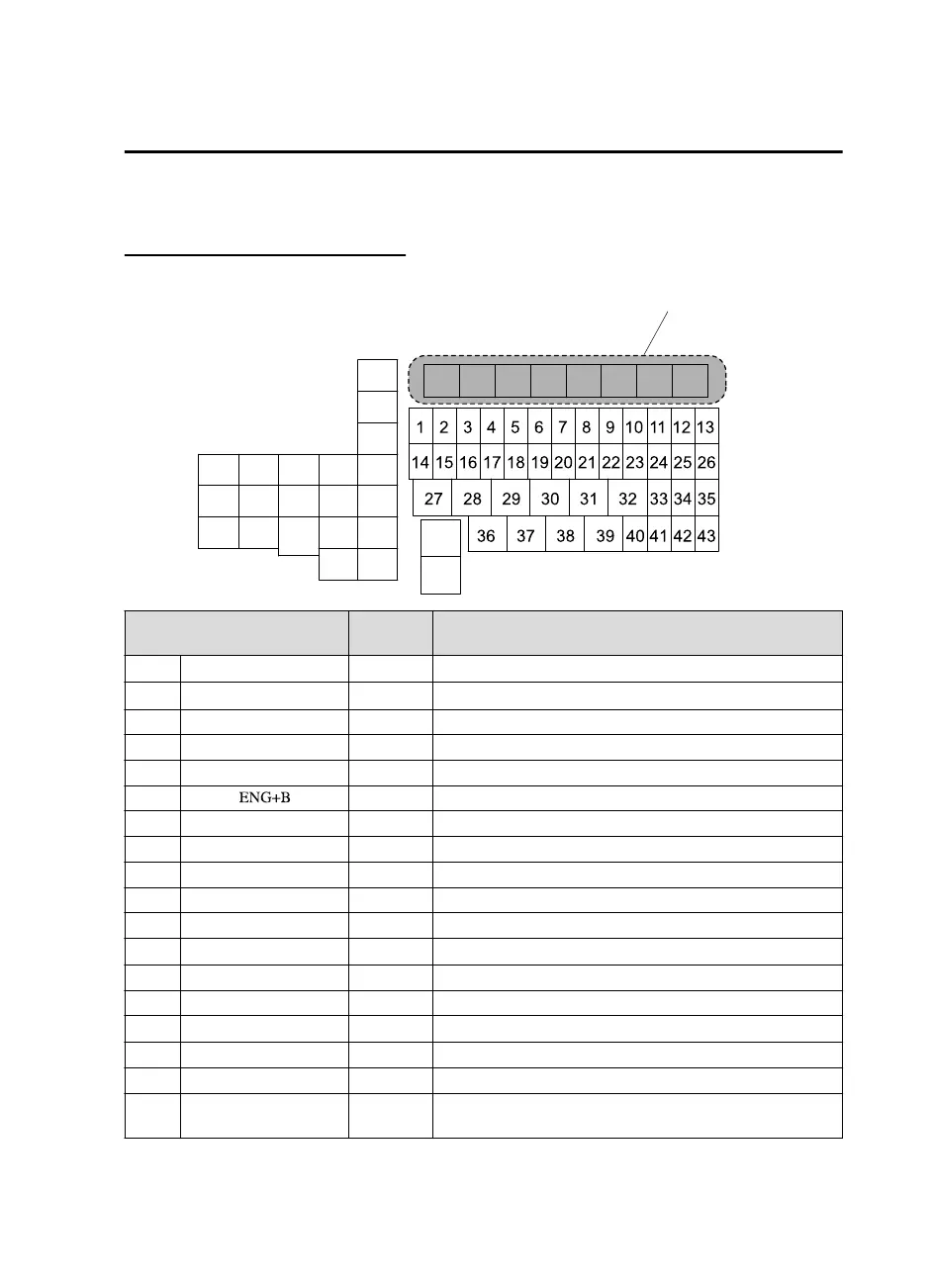

Fuse block (Engine compartment)
Multiplex slow blow fuse
DESCRIPTION
FUSE
RATING
PROTECTED COMPONENT
1FOG 15 A
Fog lights
*
2H/L HI 20 A
Headlight high beam
*2
3 H/CLEAN 20 A ―
4 STOP 10 A Brake lights
5 ROOM 15 A Overhead light
6
7.5 A Engine control system
7FUEL WARM 15 A ―
8 HAZARD 25 A Hazard warning flashers, Turn signal lights
9 ABS/DSCS 30 A ABS, Dynamic stability control system
10 METER2 7.5 A ―
11 AUDIO2 7.5 A Audio system
12 BOSE 25 A
Bose
®
Sound System-equipped model
*
13 AUDIO1 15 A Audio system
14 FUEL PUMP 15 A Fuel system
15 HID R DRL 15 A
Headlight (RH)
*1
, Daytime running lights
*
16 AT PUMP 15 A ―
17 HORN 15 A Horn
18 TAIL 15 A
Taillights, License plate lights, Parking lights, Front side-mark-
er lights
Maintenance and Care
Owner Maintenance
*Some models.
6-59
