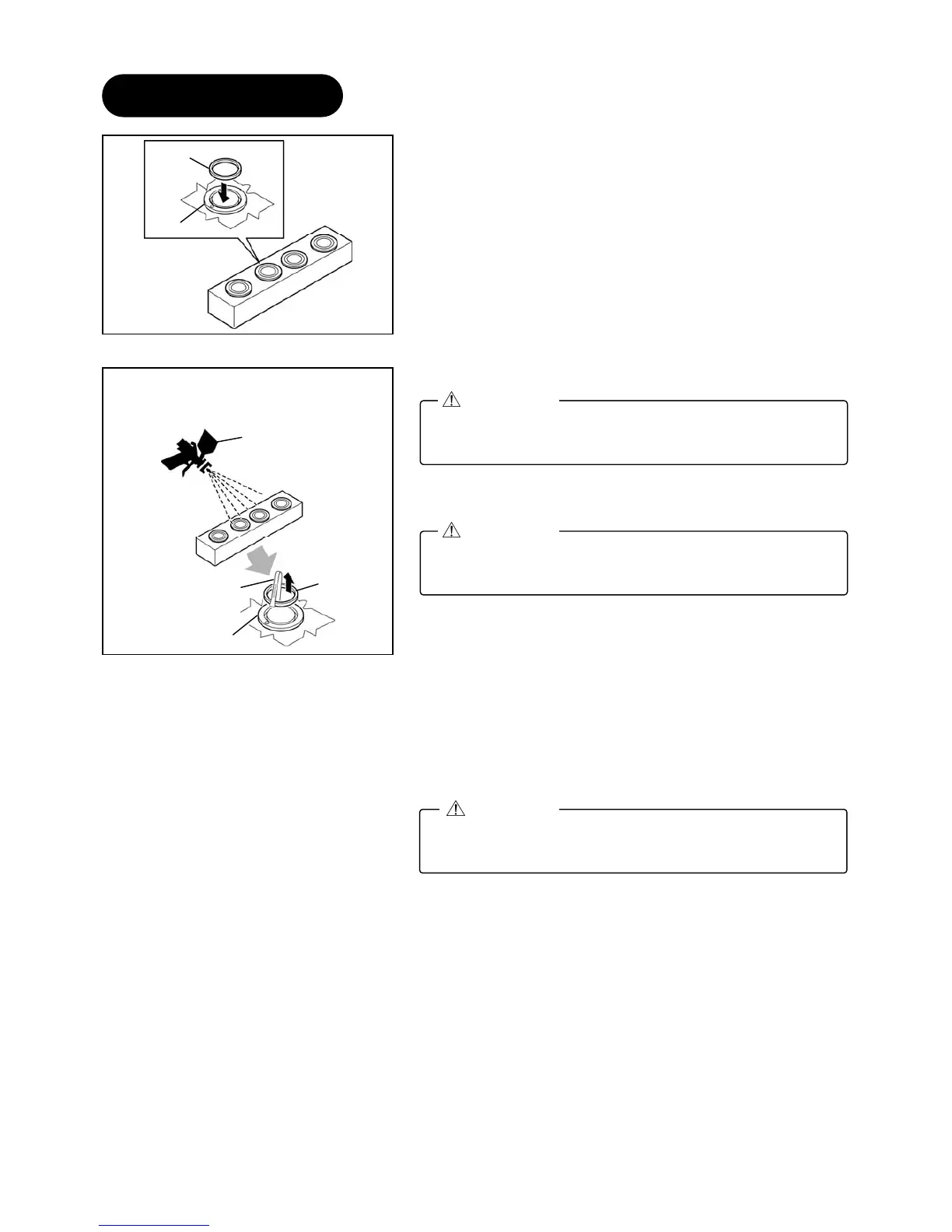

1. Install the ring to the sensor.
2. Masking required (use ring to mask sensor channel)
2.
Coat the sensor surface with the body color paint.
3. Use two-component urethane paint. (Main component: acrylic
polyol, curing agent: isocyanate)
• Maximum paint thickness: primer 30 um, paint 95 um
4. When painting, use a spray gun to apply the paint evenly.
• Paint infiltration into connector must be avoided; pin contact
must be guaranteed after painting.
• Maximum paint curing: 90 C for 1 hour.
5. After baking, do not touch the painted product until it has cooled
down completely.
• Hot storage temperature: 85 C.
6. When the painting is dried, remove the ring using tweezers.
4. PAINT SENSOR
Ring
Sensor
• Be careful not to peel off the paint when removing the ring.
• Do not reuse the removed ring.
CAUTION
Ring
Sensor
Tweezers
Spray gun
SURFACE TREATMENTT
a : Paint same as body color
b : Masking required
• Paint characteristics vary according to paint type. Check
manufacturer specifications before painting.
CAUTION
• Do not use lacquer paints because their weatherproofing
and adhesion characteristics are poor.
CAUTION
