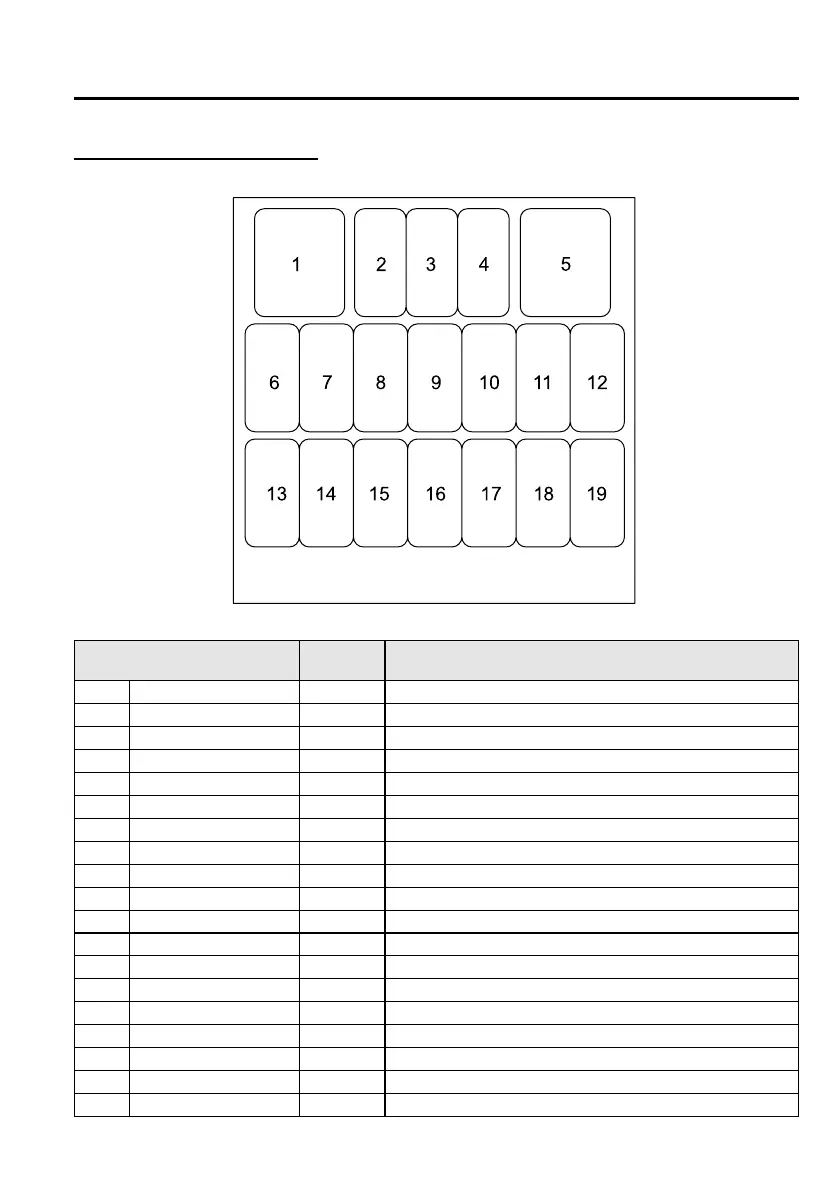

Fuse block (Passenger's side)
DESCRIPTION
FUSE
RATING
PROTECTED COMPONENT
1 P/W 30 A Power window
2 PSD.RH 20 A Power slide door (RH)
í
3 STARTER 10 A Starter
4 ENG3/S.R 20 A Sunroof
í
, Engine control system
í
5 PSD.LH 20 A Power slide door (LH)
í
6 P.OUTLET 15 A Accessory sockets (Rear)
7 SHIFT/L 5 A Shift-lock system
í
8 CIGAR 15 A Accessory sockets (Front)
9 MIRROR 7.5 A Power control mirror, Audio
10 A/C 10 A Heater
11 F.WIP 25 A Windscreen wipers and washer
12 R.WIP 15 A Rear window wiper
13 ENG/IG 5 A Engine control system
í
14 METER 10 A Instrument cluster
15 SAS 10 A Air bag
16 S.WARM 15 A ―
17 ABS/ACC 5 A Audio system
í
18 EHPAS 5 A Power assist steering
19 ENG2 15 A Engine control system
