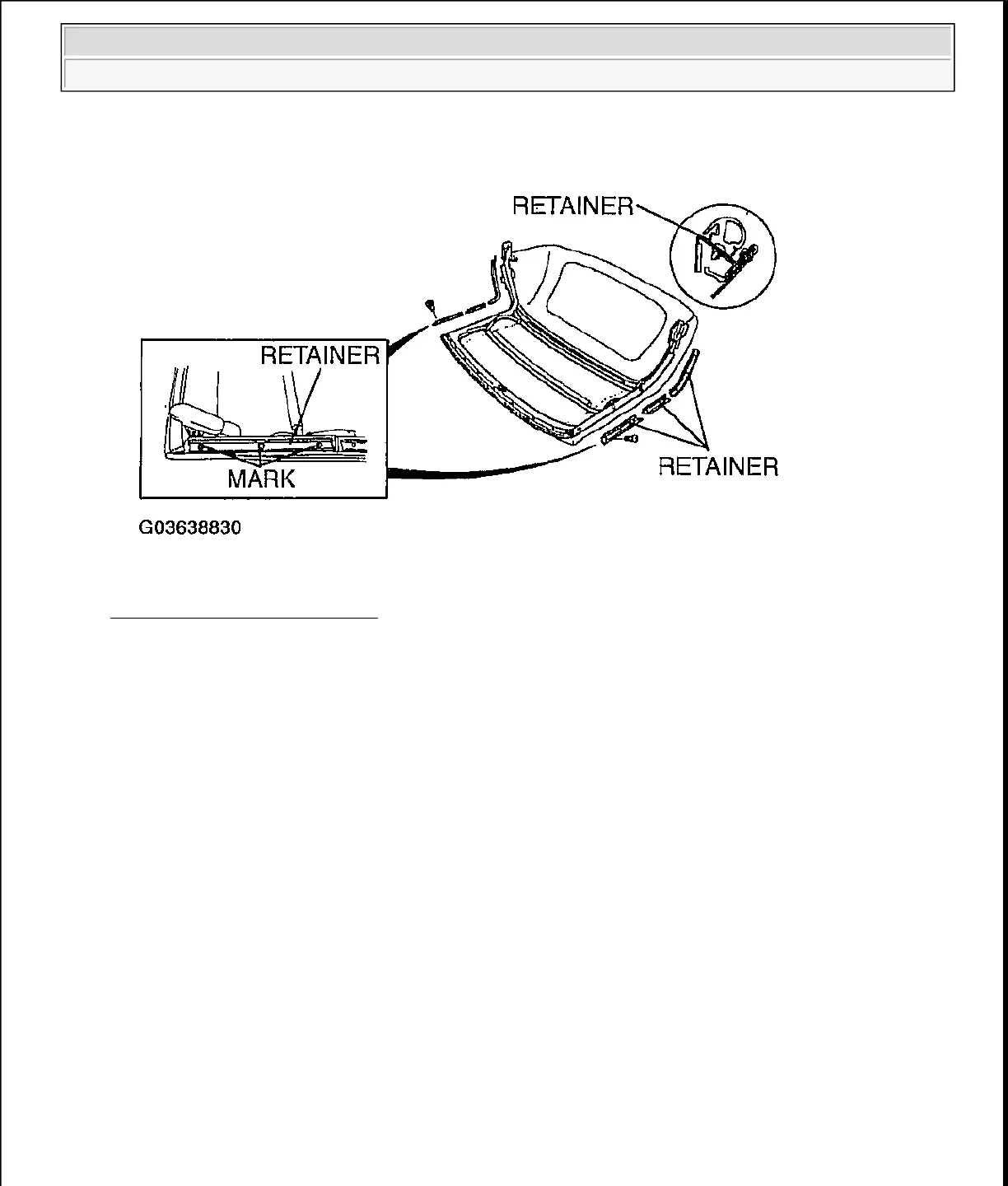

Fig. 27: Disassembling Retainer
Courtesy of MAZDA MOTORS CORP.
END PLATE DISASSEMBLY NOTE
1. Remove the rivets from the link using a drill.
Drill size
4.0 mm diameter {0.16 in diameter}
2. Remove the screws and remove the end plates from the link.
