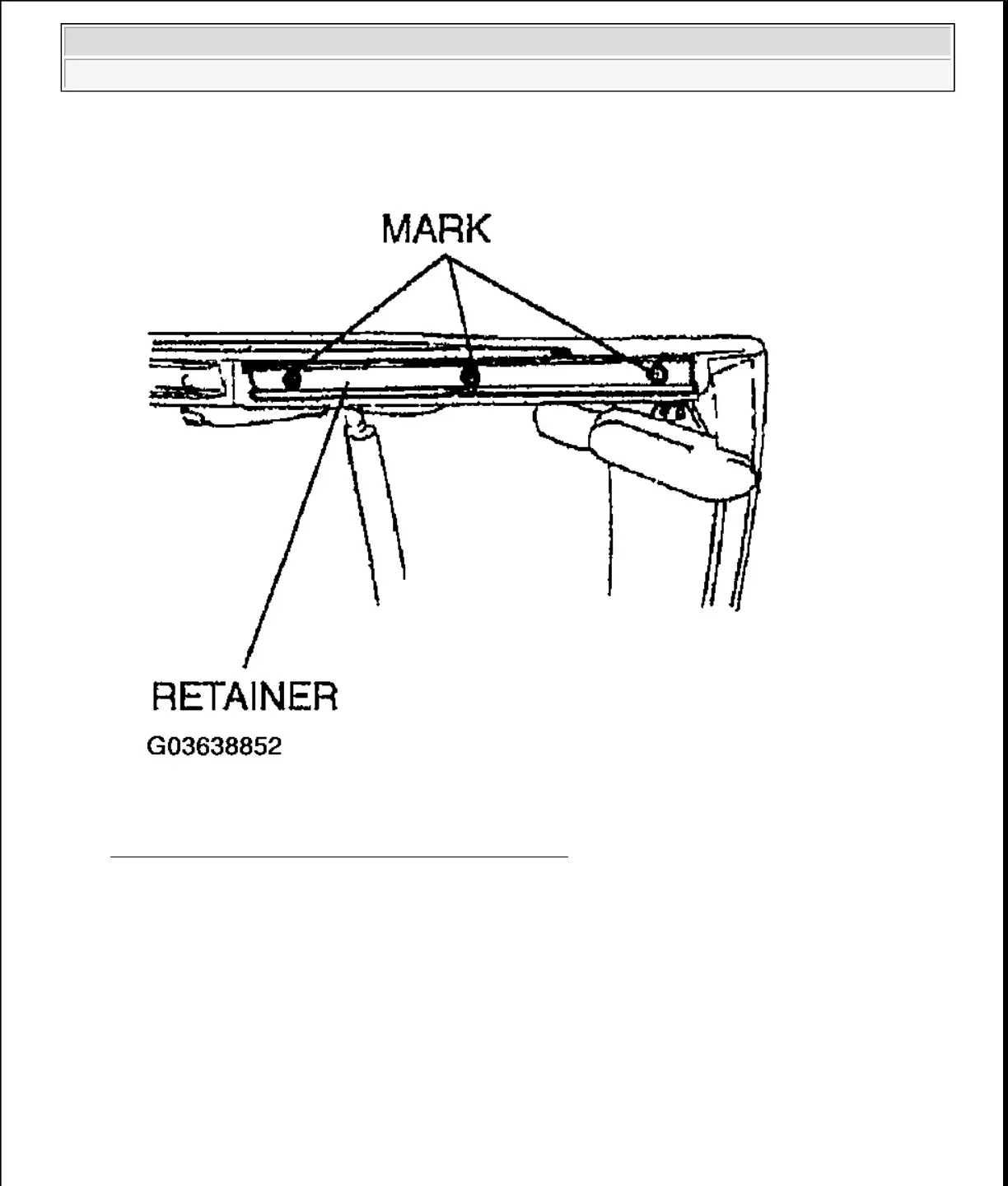

Fig. 49: Marking Around Retainer Installation Screws
Courtesy of MAZDA MOTORS CORP.
TOP FABRIC REMOVAL NOTE
1. Remove the rivets from the link with a drill.
Drill size
4.0 mm diameter{0.16 in diameter}
2. Peel the top fabric end.
3. Remove the rivets from the link using a drill.
Drill size
