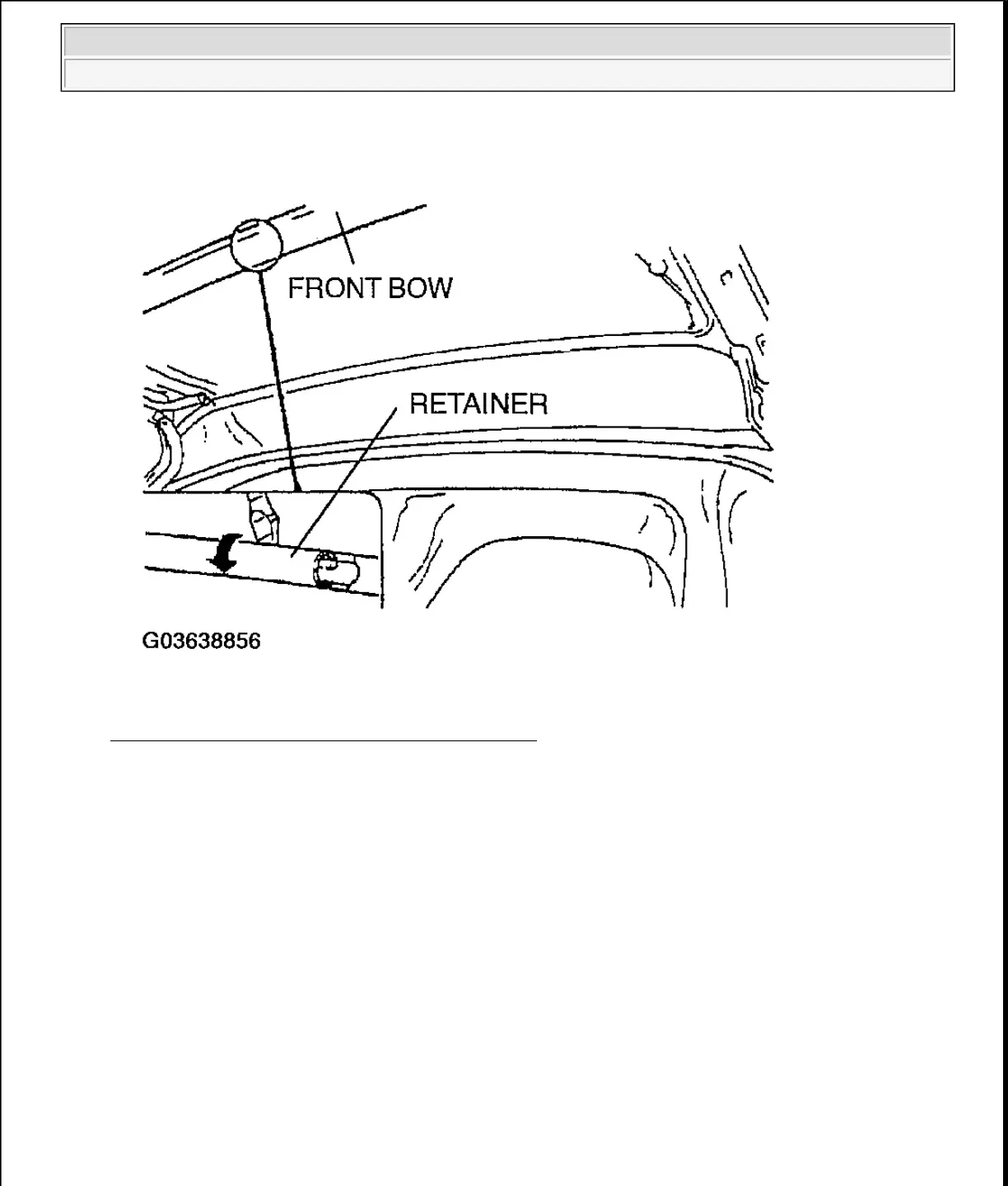

Fig. 53: Removing Top Fabric From Bow Retainer
Courtesy of MAZDA MOTORS CORP.
RAIN RAIL REMOVAL NOTE
1. Remove the rivets from the top fabric using a drill.
Drill size
4.0 mm diameter {0.16 in diameter}
