Fi
g
. 54: Removin
g
Rivets From Top Fabric Usin
g
Drill
Courtesy of MAZDA MOTORS CORP.
RAIN RAIL INSTALLATION NOTE
If the rivets will not be used
1. Degrease the rain rail using white gasoline.
2. Install the insulation tape to the rivet installation holes of the rain rail.
Insulation tape
Width:20 mm {0.79 in}
Height:15 mm {0.59 in}
Thickness:3 mm {0.12 in}

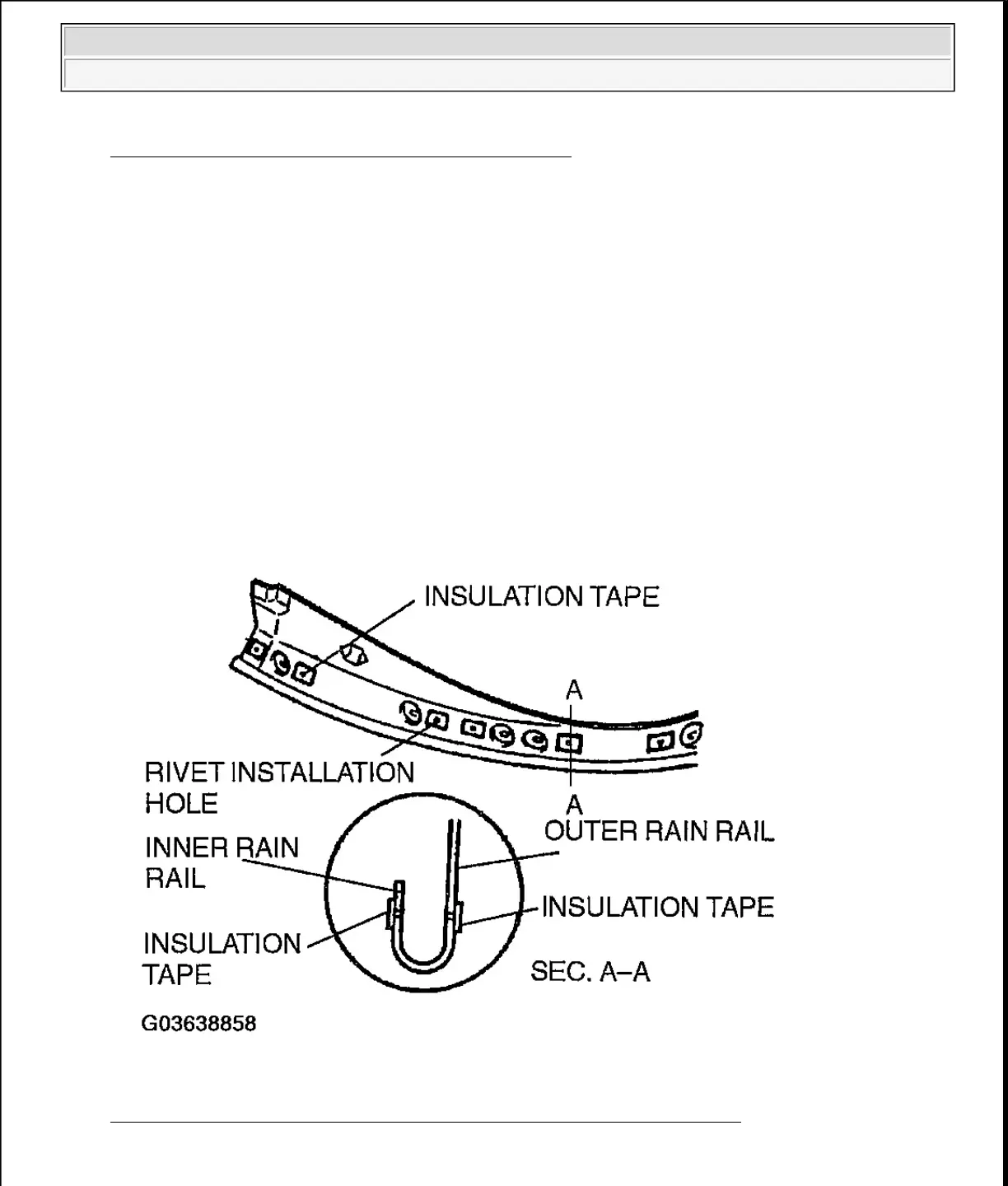

Fig. 55: Installing Insulation Tape To Rivet Installation Holes Of Rain Rail
Courtesy of MAZDA MOTORS CORP.
If the rivets will be used
