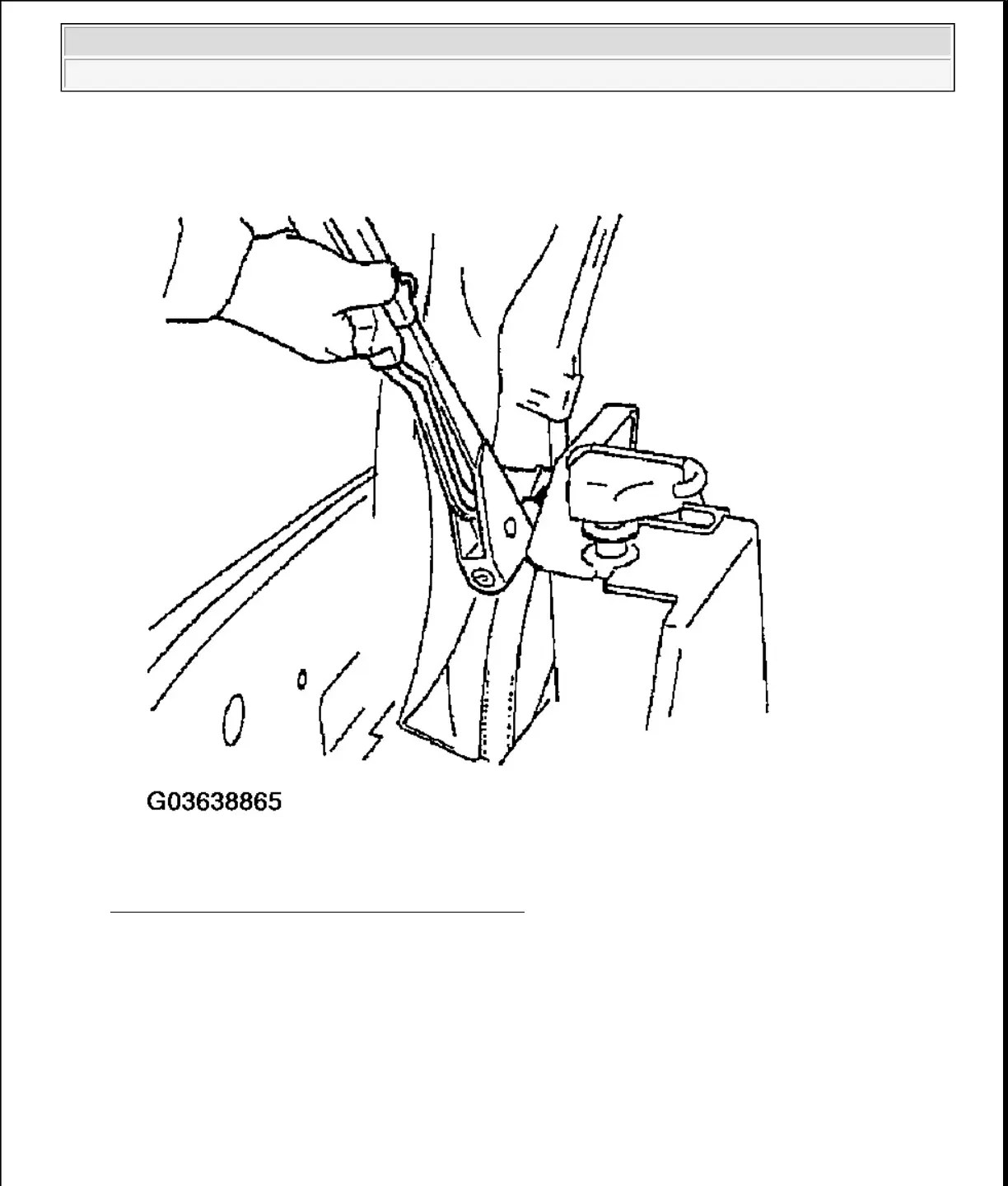

Fig. 62: Riveting Top Fabric Lower Side To Link
Courtesy of MAZDA MOTORS CORP.
TOP FABRIC REPAIR
HOLES
1. Place the repair sheet (NC10 R1 211) over the damaged section. Cut both the top fabric and the repair
sheet using a razor and a straightedge.
2. Cut another piece of repair sheet lar
g
er than the first for use as a back repair sheet.
