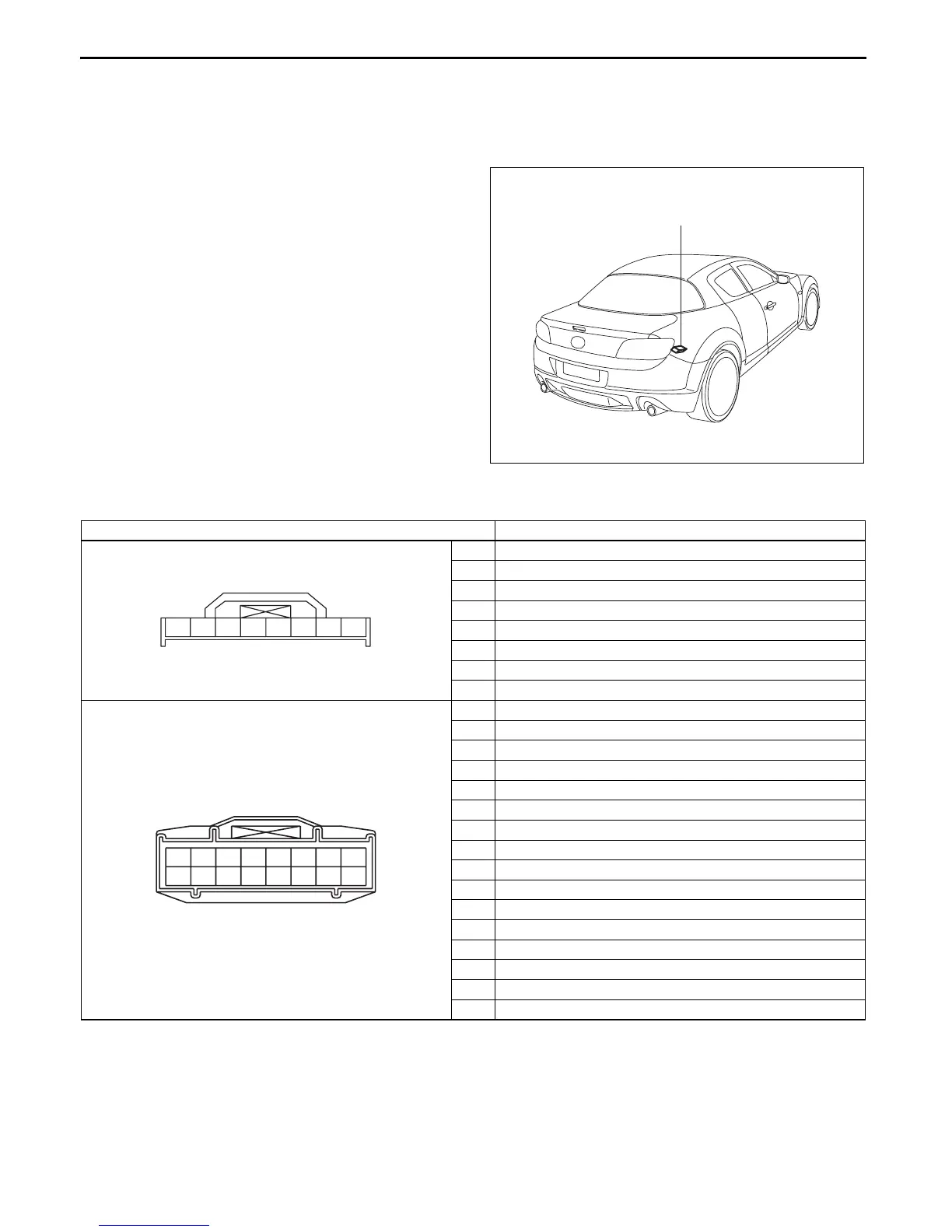

SIRIUS SATELLITE RADIO UNIT CONSTRUCTION
id092000829900
Structural view
x The SIRIUS satellite radio unit are located inside the trunk side trim (RH).
x Radio waves received from the SIRIUS satellite radio antenna are converted to audio signals and sent to the
audio unit/car-navigation unit.
Terminal Layout and Signal
End Of Sie
NG: ANTENNA
SIRIUS SATELLITE RADIO UNIT
ar8uun00000300
Terminal Signal
1A —
1B —
1C —
1D AUDIO LH (+)
1E Signal ground
1F AUDIO RH (+)
1G AUX DET
1H Power ground
2A Power ground
2B —
2C Output signal RH (+)
2D —
2E Output signal LH (+)
2F —
2G Signal ground
2H —
2I —
2J —
2K CAN (–)
2L CAN (+)
2M —
2N —
2O ACC
2P B+
1A1B1C1D1E1F1G1H
2A2C2E2G2K2M2O
2B2D2F2J2L2P
2H
2I
2N
