ENTERTAINMENT
09-20–32

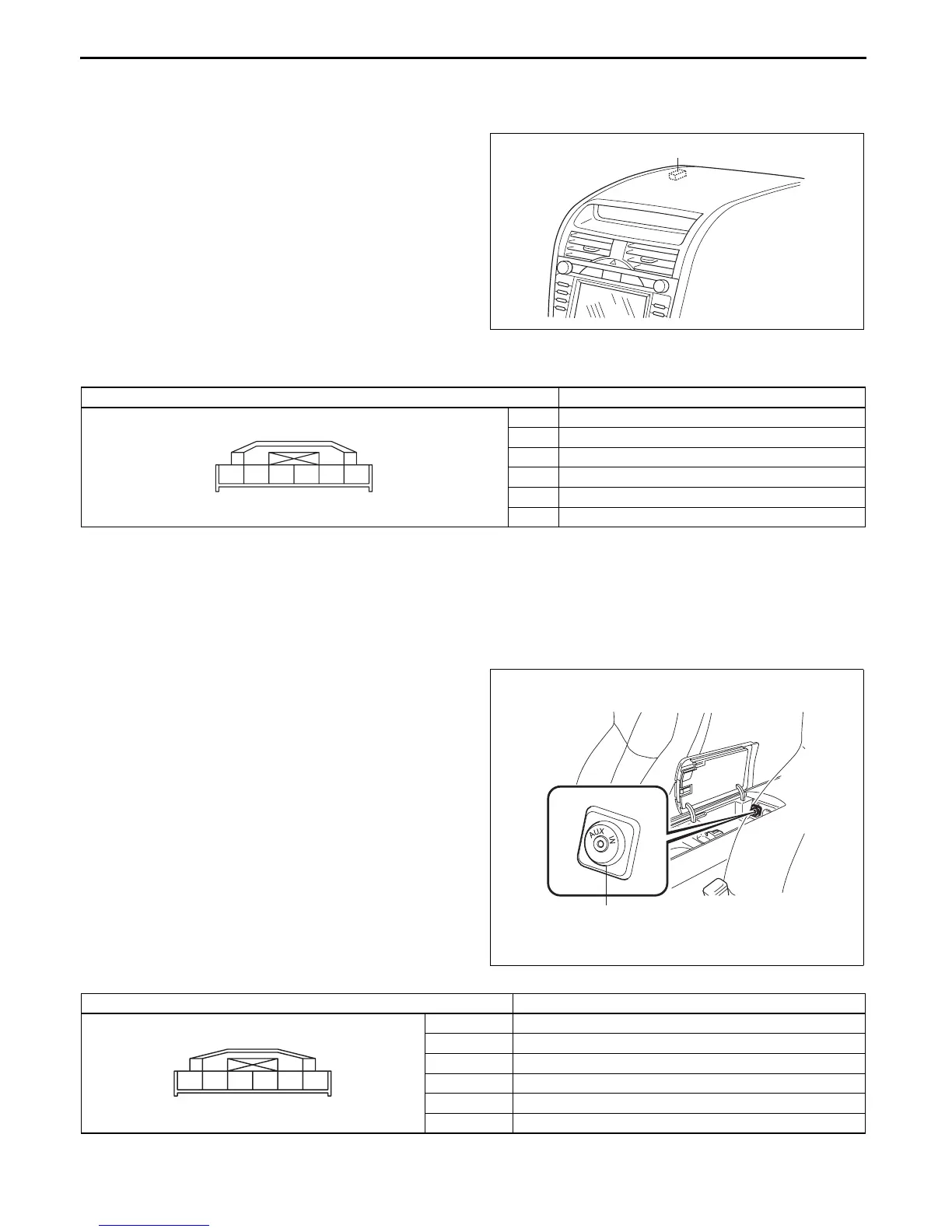

MICROPHONE CONSTRUCTION/OPERATION
id092000100700
x Located in the speaker grill.
x Recognize the voice entry.
Terminal Layout and Signals
End Of Sie
NG: AUDIO UNIT
AUXILIARY JACK FUNCTION
id092000107400
x Connects commercially-available portable audio, and outputs the sound from the speaker via the audio unit
(with audio system) or car-navigation unit (with car-navigation system).
End Of Sie
AUXILIARY JACK CONSTRUCTION/OPERATION
id092000110000
x Auxiliary jack is installed to the rear console.
x An auxiliary jack is equipped on the upper part of
the external input unit.
End Of Sie
NG: HF/TEL SYSTEM
MICROPHONE
ar8uun00000012
Terminal Signals
AMic (+)
BMic (-)
C Mic power
D Ground
E Mic sense
F–
A
B
C
D
E
F
AUXILIARY JACK
ar8uun00000016
Terminal Signal name
A-
B-
C External sound input (LH)
D Audio ground
E External sound input (RH)
F AUX DET
**
C
D
EF
