INTAKE-AIR SYSTEM [13B-MSP]
01-13–4
2009 Mazda RX-8 Service Highlights (3452–1U–08C)
Revised 11/2008 (Ref. No. R321/08)

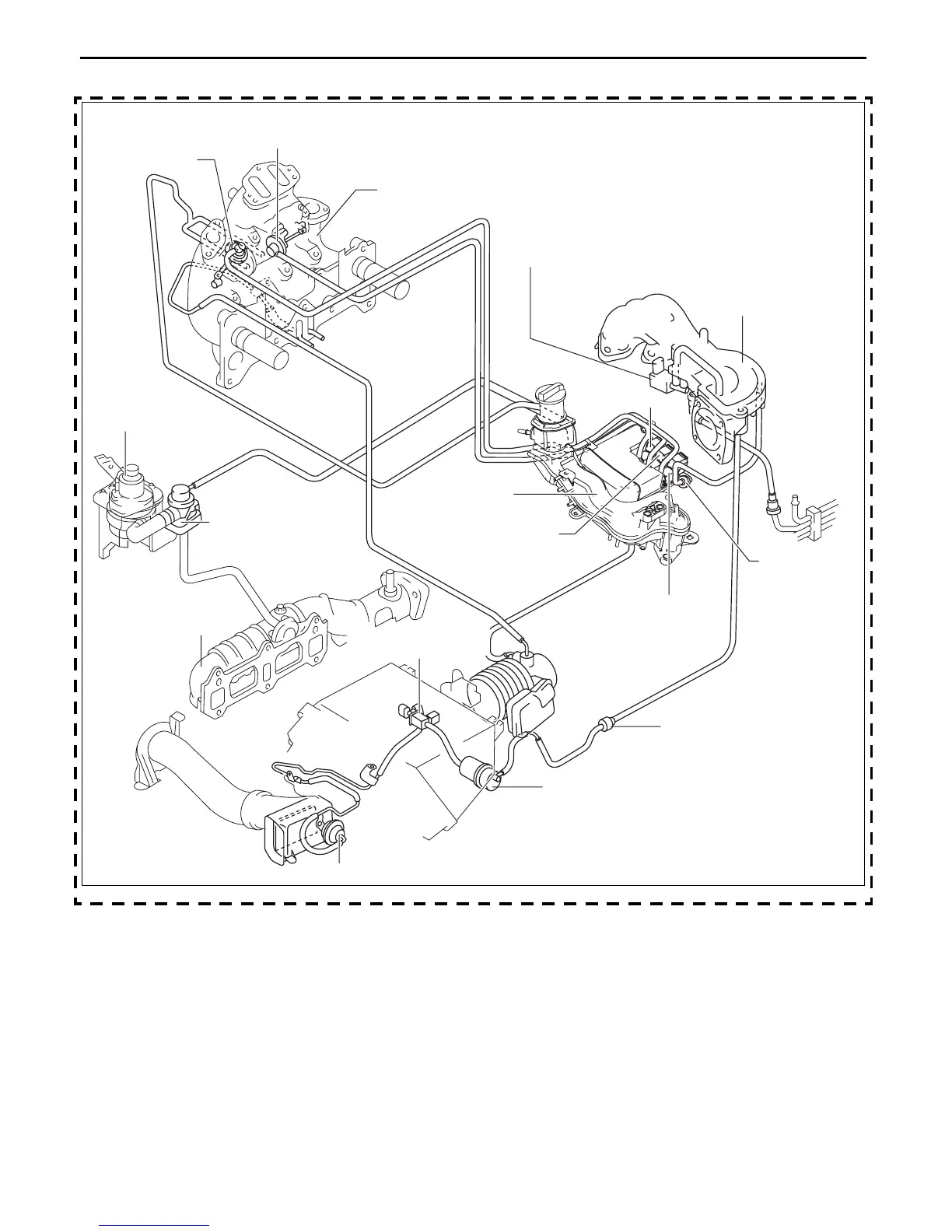

INTAKE-AIR SYSTEM VACUUM HOSE ROUTING DIAGRAM [13B-MSP]
id0113z3100400
End Of Sie
SOKYU_NG: FRESH-AIR DUCT
→
AIR SOLENOID
VALVE
INTAKE MANIFOLD
VDI ACTUATOR
SSV ACTUATOR
AIR PUMP
AIR CONTROL VALVE
EXHAUST MANIFOLD
VFAD ACTUATOR (WITH VFAD)
VACUUM CHAMBER
VFAD SOLENOID VALVE
(WITH VFAD)
ONE-WAY CHECK VALVE
SSV SOLENOID
VALVE
VDI SOLENOID VALVE
ONE-WAY
CHECK VALVE
PURGE SOLENOID
VALVE
EXTENSION MANIFOLD
(UPPER)
VACUUM
CHAMBER
ar8uuw00001427
