unique high end audio
mbl 6010 D
9

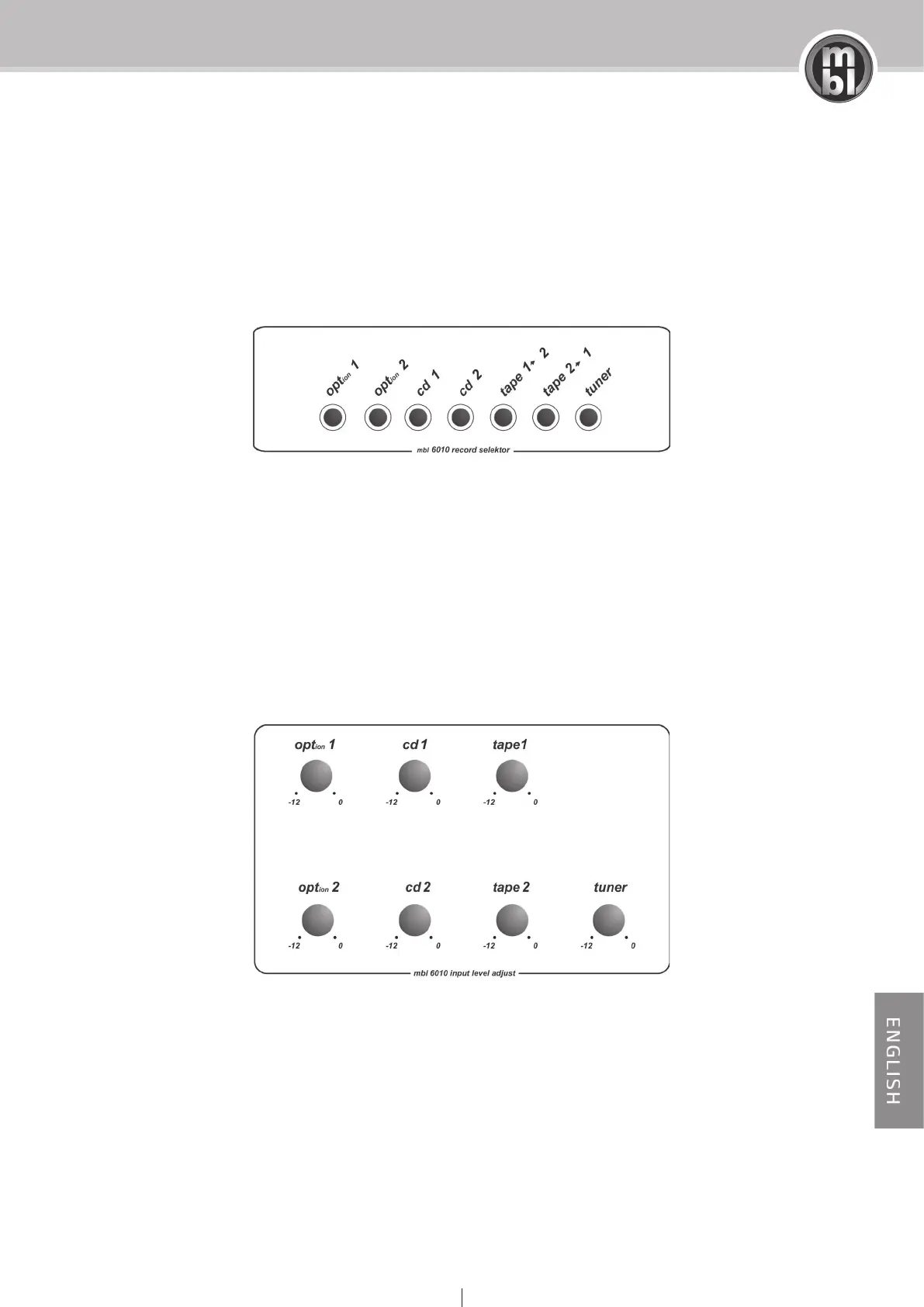

3.2 Input Section
The input section is composed of level encoders and record buttons.
Record selector
With the record select buttons the signal source for a connected tape machine can be controlled. The recording
procedure can be performed independently of playback; for example, the tuner can be routed to the output using
the input control while a tape recording is being performed from CD. The recording quality can be checked im-
mediately during the recording process; for this purpose, set the Input control to Tape 1 or Tape 2. (Tape 1 refers
to the machine connected to the TAPE 1 connector and Tape 2 to the device connected to the TAPE 2 connector).
Input level unit
The precision potentiometers are associated with the respective inputs and provide input-signal attenuation by up
to 12 dB in order to prevent volume peaks when changing between sources.
