mbl 6010 D
7
2. Connecting Other Components
2.1 Outputs
The mbl 6010 D is designed for connecting one or more power amplifiers. It provides the following analog outputs
for power amplifier connection:

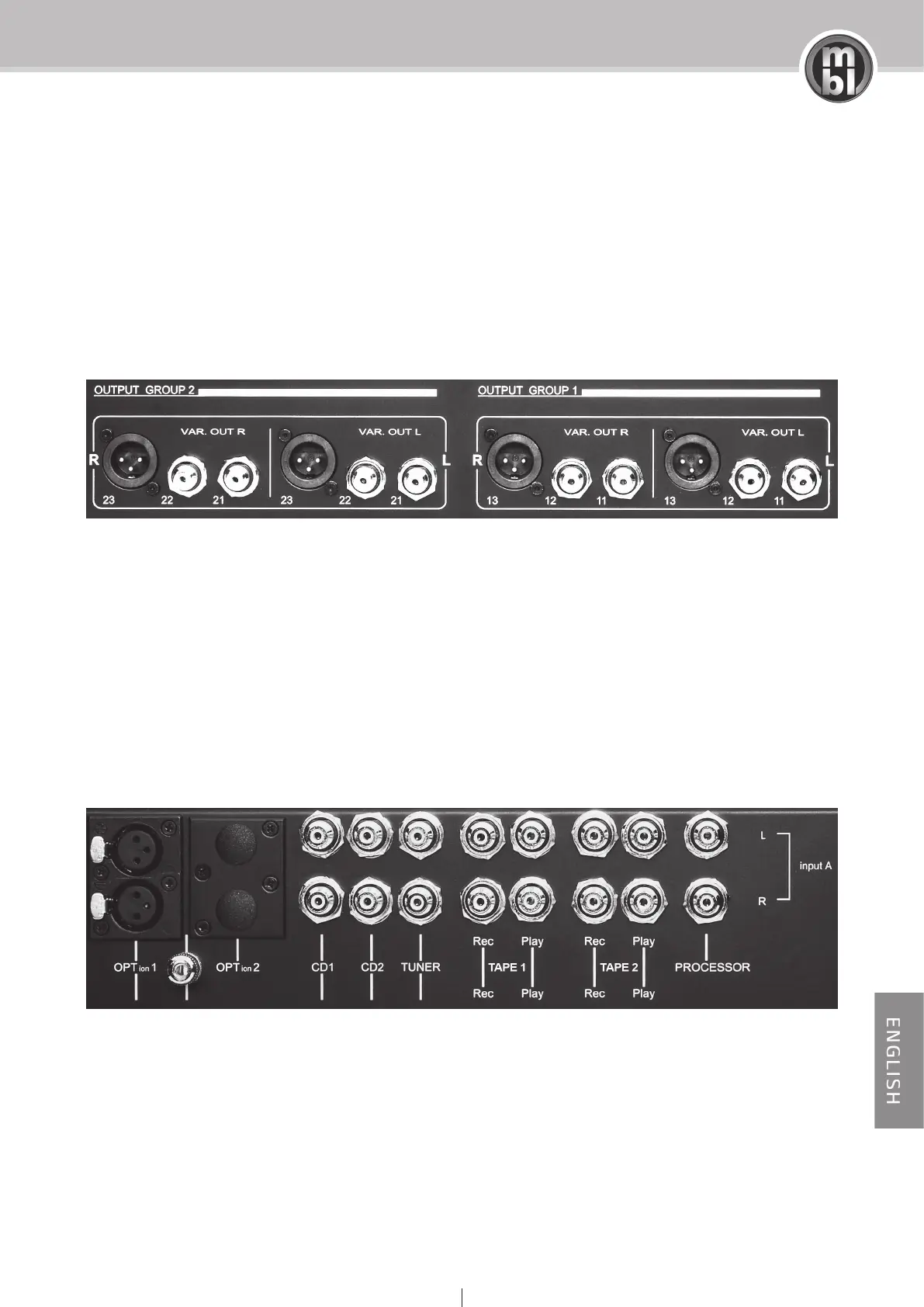

OUTPUT GROUP 2 OUTPUT GROUP 1
2 x RCA outputs (21 and 22) per channel 2 x RCA outputs (11 and 12) per channel
1 x balanced XLR output (23) per channel 1 x balanced XLR output (13) per channel
2.2 Inputs
Up to 7 source devices can be connected to your mbl 6010 D. For this purpose, it provides the following analog
inputs:
OPTION 1 | OPTION 2 CD 1 | CD 2 | TUNER TAPE 1 TAPE 2 PROCESSOR
The inputs OPT 1 and OPT 2 are optional inputs reserved for additional modules such as Phono MC or balanced
input. OPT 1 is already equipped with a balanced input.
