MBM 307A - Setting Designated Position; Setting Paper Ejection Roller (307 A); Cross Folding

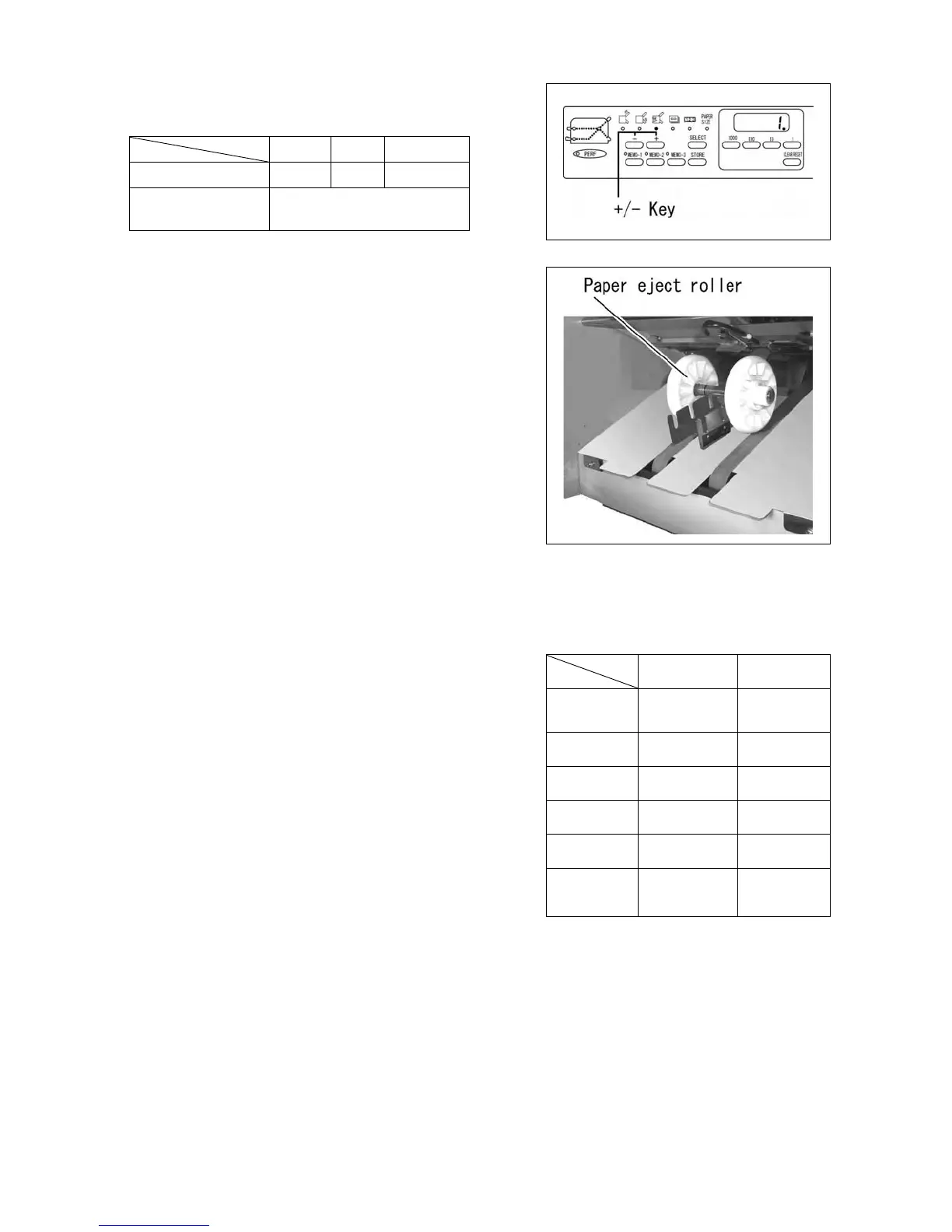

Set the designated position using the ＋/－ key.
Indication
1 2 3
Standard-size paper C1 C2 C3
Non-standard-size
paper
Setting the designated position
Setting the paper ejection roller for( 307A)
The exit roller should be moved to the proper position
according to the paper size. Refer to the “Roller Position
Indication” label. If ejection is not performed properly, try a
different position.
Fold-Stopper Position Chart
Note:
Calculate the position of table 1 and 2 stoppers in relation to
the measurement value L on page 12.
Example:
In the case of performing the zigzag fold using sheets of paper
300mm in length:
Table 1 = 300 × (2 / 3) = 200mm
Table 2 = 300 × (1 / 3) = 100mm
Table 1 Table 2
SINGLE
Original
position
1/2
GATE 1/4 1/2
LETTER 1/3 1/3
ZIGZAG 2/3 1/3
DOUBLE 1/2 1/4
PARALLEL
FOLD-OUT
3/4 1/4
