MBM 307A - Adjustment; Skew Adjustment; Fine Adjustment

(8) Adjustment

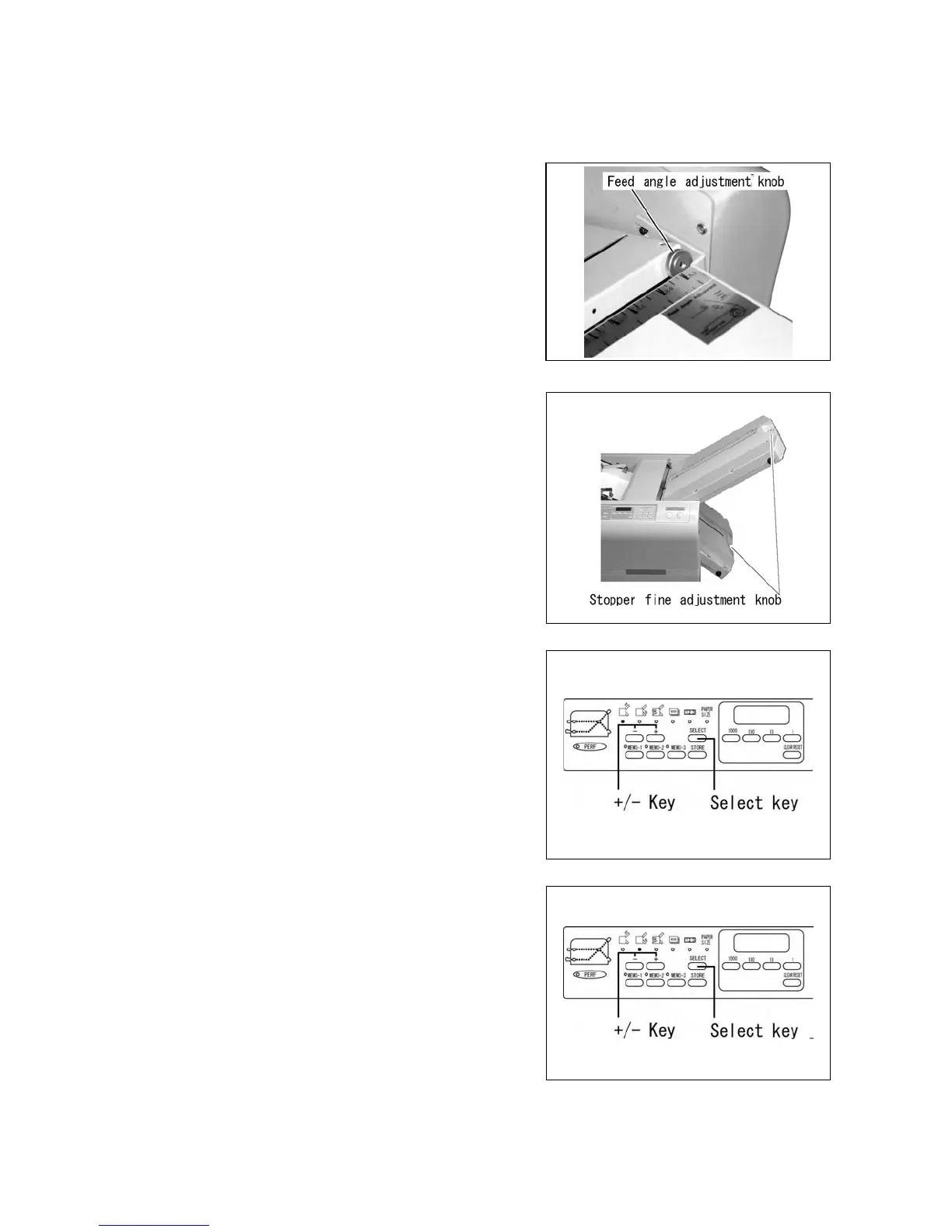

(A) Skew Adjustment
If the folding position is slanted it can be adjusted using the
skew adjustment knob.
(B) Fine Adjustment
Move the stopper using the stopper fine adjustment knob.
Caution: If the fine adjustment knob is moved, when the
TEST key is pressed, the machine will continue to fold, when
the START / STOP key is pressed, the machine will start to
fold after the stopper is returned to the previous position
Note:
To make large stopper adjustments, use the ＋/－ key.
Adjusting Table 1
Press the Select key and select the Table 1 Stopper Move
Mode.
Press the ＋/－ key and move the stopper to the desired
position.
Adjusting table 2
Press the Select key and select the Table 2 Stopper Move
Mode.
Press the ＋/－ key and move the stopper to the desired
position.
15
http://www.monomachines.com/
http://www.monomachines.com/
adjustment; knob
Stopper fine adjustment knoB
S
O d'~rl' - =~
._ .. ~ eooooo
, ,
•••• ~. _ + SlLfCT
c:::Jc:::J
~ 0-.,0 .. ,0 llal[
C)C)C)C)
+/- Key
Select key
+/- Key
Select key _
