30107-10 Rev. 2.5 | 24NOV2020

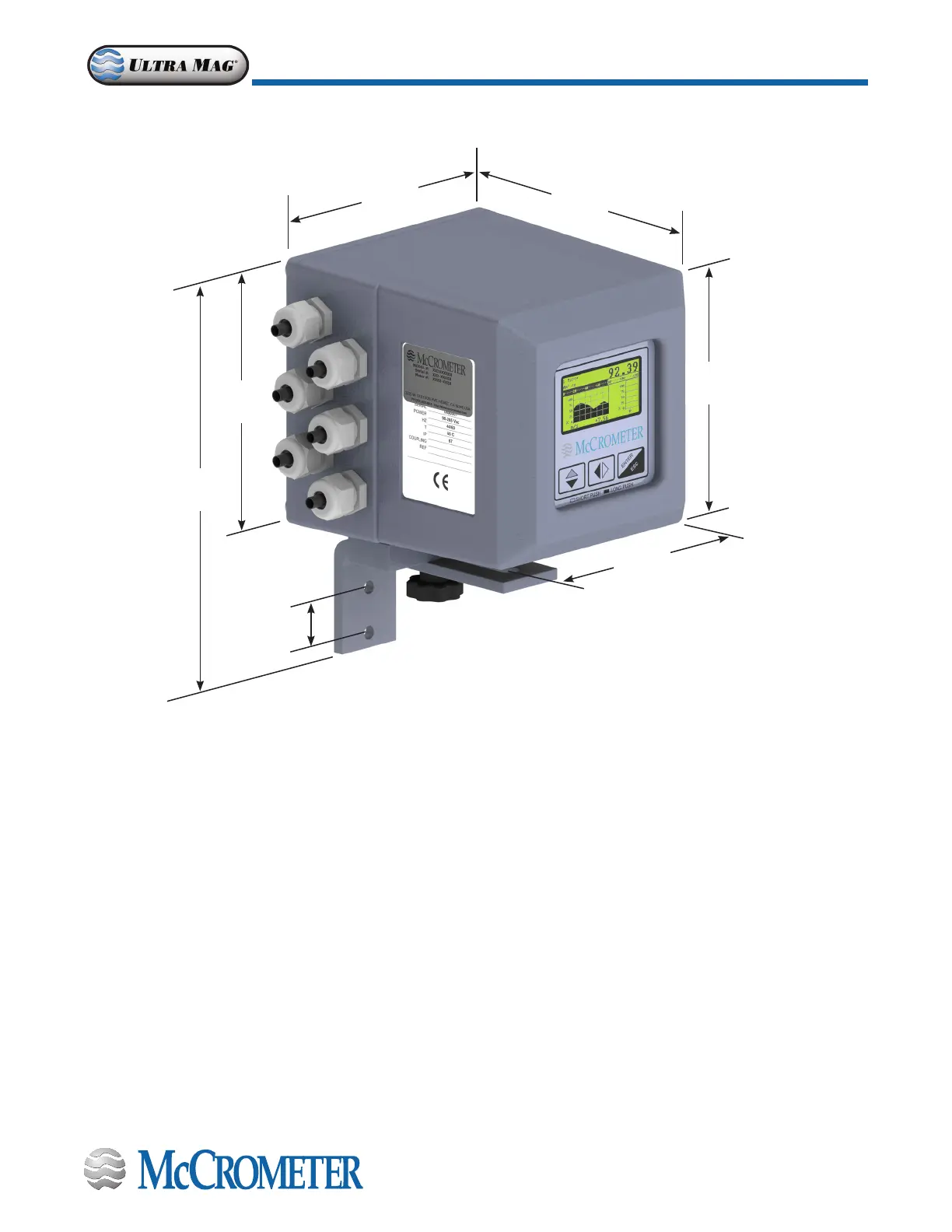

Figure 1. Electronic Converter Dimensions
1.0 M-SERIES CONVERTER OVERVIEW
Read this entire manual prior to installation and/or changing any settings. Retain this manual in your records, DO
NOT DISCARD.
The M-Series signal converter is the reporting, input and output control device for the sensor. The converter
allows the measurements, functional programming, control of the sensor and data recording to be communicated
through the display and inputs & outputs. The M-Series microprocessor-based signal converter has a twelve-point
curve- tting algorithm to improve accuracy, dual 4-20mA analog outputs, an RS485 communication port, an
8-line graphical backlit LCD display with 3-key touch programming, and a rugged enclosure that meets IP67. In
addition to a menu-driven self-diagnostic test mode, the converter continually monitors the microprocessor's
functionality. The converter will output rate of ow and total volume. The converter also comes standard with
password protection and many more features.
M-SERIES CONVERTER OVERVIEW
Copyright © 2018 McCrometer, Inc. All printed material should not be changed or altered without permission of
McCrometer. Any published technical data and instructions are subject to change without notice. Contact your McCrometer
representative for current technical data and instructions.
www.mccrometer.com
3255 WEST STETSON AVENUE • HEMET, CALIFORNIA 92545 USA Printed In the U.S.A.
TEL: 951-652-6811 • 800-220-2279 • FAX: 951-652-3078 Lit. # 30120-47, Rev. 2.5 / 5-31-18
