30107-10 Rev. 2.5 | 24NOV2020
Page 6

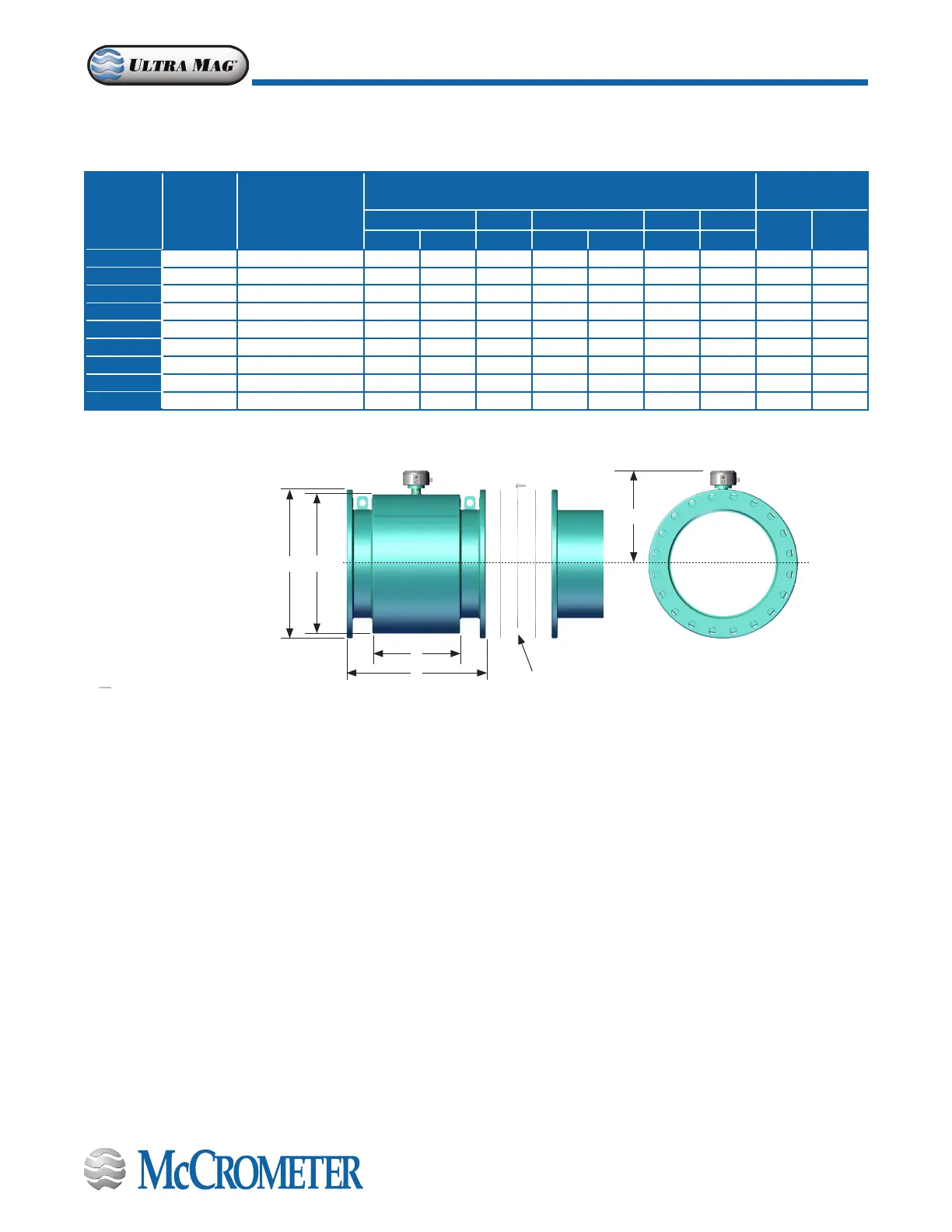

Ultra Mag Flow Meter Dimensions
Speci cation Sheet
Ultra Mag Flow Meter with ProComm Converter
30107-09 Rev. 5.1 | 11MAY2020
Page 8
14+" Models Body Style
D
C
B
A
**Grounding Rings are 0.125" thick.
E
Pipe Size
(Nominal)
Meter
Pipe ID
Flow Ranges GPM
Standard
.2 to 32 FPS
Min - Max
DIMENSIONS
(Lay Lengths)
Est. Shipping
Weight (lbs.)**
A* B C D E
UM06 UM08 UM06 UM08 UM06 UM08
14" 13.440 90 - 16,070 21.70 22.75 12.00 21.00 23.00 20.30 15.46 321 476
16" 15.440 118 - 20,900 23.60 25.25 14.20 23.50 25.50 21.10 16.21 390 645
18" 17.440 150 - 26,480 23.60 25.25 14.20 25.00 28.00 21.10 17.21 446 750
20" 19.440 185 - 32,720 25.60 28.25 16.20 27.50 30.50 24.80 18.26 588 874
24" 23.440 270 - 47,180 30.70 35.75 21.70 32.00 36.00 29.60 20.11 769 1,568
30" 29.190 420 - 73,620 35.80 41.75 26.50 38.75 43.00 35.90 23.26 1,261 2,317
36" 35.190 610 - 105,930 46.10 46.10 28.20 46.00 50.00 42.70 26.66 1,696 2,915
42" 41.190 830 - 144,370 48.05 *** 32.10 52.75 *** 48.35 29.99 *** ***
48" 47.190 1,080 - 188,430 50.00 *** 36.00 59.50 *** 54.00 33.31 *** ***
* Laying lengths for meters with ANSI Class 150 Flanges are equal to UM08 laying lengths
** For remote mount meters, add 4 lbs for ProComm converter.
*** Consult factory
DIMENSIONS AND WEIGHTS (CONT.)
Pipe Size
(Nominal)
Meter
Pipe ID
Flow Ranges GPM
Standard
.2 to 32 FPS
Min - Max
DIMENSIONS
(Lay Lengths)
Est.Shipping
Weight (lbs.)**
A* B C
UM06 UM08 UM06 UM08 UM06 UM08
4" 3.720 8 - 1,140 13.40 13.40 9.00 10.00 8.06 78 108
6" 5.692 19 - 2,660 14.60 14.60 11.00 12.50 9.06 82 138
8" 7.692 33 - 4,870 16.10 17.25 13.50 15.00 10.06 115 195
10" 9.682 52 - 7,670 18.50 18.50 16.00 17.50 10.46 144 247
12" 11.682 74 - 11,180 19.70 19.70 19.00 20.50 12.31 193 342
* Laying lengths for meters with ANSI Class 150 Flanges are equal to UM08 laying lengths
** For remote mount meters, add 4 lbs for ProComm converter.
C
B
A
Grounding Rings are 0.125" thick.
4" to 12" Models Body Style
