4 - FUEL AND LUBRICATION
4-1. FUEL
Use regular g
rade unleaded gasoline mixed with Genuine
Factory Parts 40:1 custom 2-cycle engine oil for best
results. Use mixing ratios in Section 4-3.
Never use straight gasoline in your unit.This will cause
permanent engine damage and void the manufactur-
er’s warranty for that product. Never use a fuel mixture that
has been stored for over 90 days.
If 2-cycle lubricant other than Genuine Factory Parts
Custom Lubricant is to be used, it must be a premium
grade oil for 2-cycle air cooled engines mixed at a 40:1
ratio. Do not use any 2-cycle oil product with a recommend-
ed mixing ratio of 100:1. If insufficient lubrication is the
cause of engine damage, it voids the manufacturer’s
engine warranty for that occurrence.
4-2. MIXING FUEL
Mix fuel with Genuine Factory Parts brand 2 cycle oil in an
approved container. Use mixing table for correct ratio of fuel
to oil. Shake container to ensure thorough mix.
Lack of lubrication voids engine warranty.
4-3.FUEL AND LUBRICATION SYMBOLS

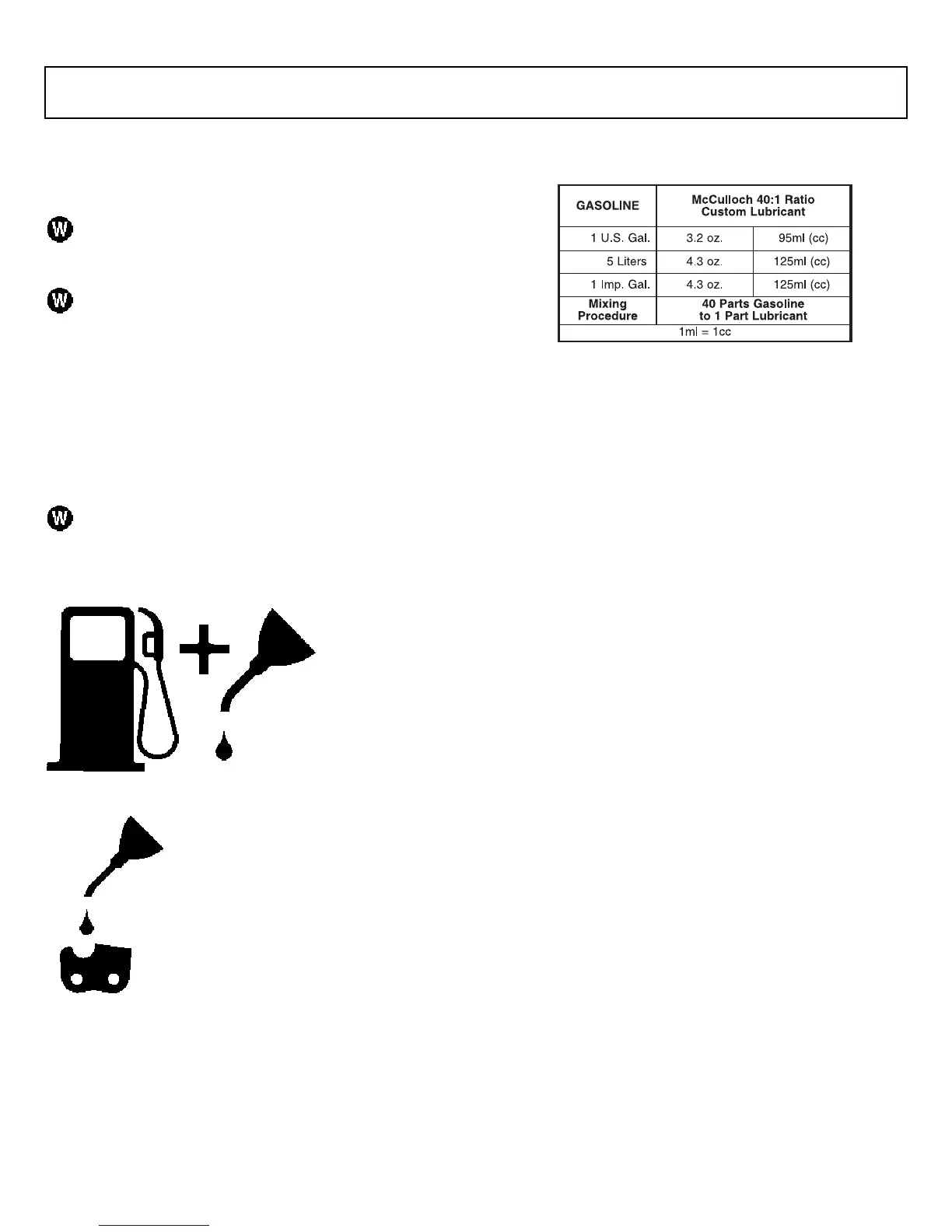

FUEL MIXING TABLE
4-4.RECOMMENDED FUELS
Some conventional gasolines are being blended with oxy-
genates such as alcohol or an ether compound to meet
clean air standards. Your McCulloch engine is designed to
operate on any gasoline intended for automotive use
including oxygenated gasolines.
4-5.CHAIN AND BAR LUBRICATION
Always refill the chain oil tank each time the fuel tank is
refilled. We recommend using Genuine Factory Parts
Chain, Bar and Sprocket Oil, which contains additives to
reduce friction and wear and to assist in the prevention of
pitch formation on the bar and chain.
Gasoline and Oil
Mix 40:1
Oil Only
5 - OPERATING INSTRUCTIONS
5-1. ENGINE PRE-START CHECKS
WARNING
Never start or operate the saw unless the bar and chain are
properly installed.
1. Fill the fuel tank (A) with correct fuel mixture (Figure
5-1A).
2. Fill the oil tank (B) with correct chain and bar oil
(Figure 5-1A).
3. Be certain the CHAIN BRAKE
®
is disengaged (C)
before starting unit (Figure 5-1A).
NOTE: See page 9 Fig. 3-5A & 3-5B.
5-2. TO START ENGINE
1. Press red STOP switch to the “I” ON position (Fig. 5-
2A).
2. Pull out the choke (A) to the point where it latches in
place. (Fig. 5-2B)
3. Push the primer bulb (B) 10 times. (Fig. 5-2C)
4. Latch throttle advance: depress latch and hold (C)
squeeze throttle trigger (D) release trigger and then
the latch. (Fig. 5-2D)
5. Place the saw on a firm and level surface. Hold the
sa
w securely with y
our f
oot as illustr
ated. Pull sharply
on the starter 4 times. Watch the chain in case it runs.
(Fig. 5-2E)
NOTE: If the engine sounds as if it wants to start before the
4th pull, end the tugging of the starter and proceed as
described in the next step.
6. Push in the choke (E) as far it will go. (Fig. 5-2F)
7.
Hold the sa
w securely and tug shar
ply on the star
ter
4 times. The engine should start.
8.
Let the engine r
un f
or 10 seconds to w
arm up. Press
the tr
igger (F) and put it into idle
.
(Fig.
5-2G)
9. If the engine does not start up, repeat the above
steps
.
IMPORTANT IDLING INFORMATION
In some cases due to operating conditions (altitude, tem-
perature etc.) your chain saw may need a slight adjustment
to the idle speed.
After w
ar
m up - See the User's Manual section 5-2, step 7
- If unit does not Idle after restar
ting 2 times
, f
ollo
w these
steps to adjust idle.
1. Idle adjustment access (G). (Figure 5-2H)
2. Using a Phillips or slotted screwdriver - turn screw 1/4
to 1/2 turn clockwise (to the right). Unit should then
idle properly. (Figure 5-2H)
NOTE: If chain turns while idling - turn screw back to the
left until chain stops and unit continues to idle.
