No. Parts No. Description No. Parts No. Description No. Parts No. Description
1 9295-310501 SPARK PLUG 9014-334505 CARBURETOR GASKET 9068-330303 HANDLE
2 9SGEB-05-10 SCREW 9SKKB-05-19 SCREW 9070-330301 PLUG
3 9211-334502 PLATE (SPARK SIDE) 9211-334503 PLATE 9072-330402 CENTERPLECE
4 9012-330301 GROMMET 9012-334501 GROMMET 9125-330301 PARTS BAG
5 9SRCB-05-22 SCREW 9072-334501 INSULATOR 9105-330301 PLUG
6 9SXMBJ05-50 SCREW 9014-334506 INSULATOR GASKET 9228-A10505 HOUSING ASS'Y
7 9228-334503 MUFFLE ASS'Y 9157-332101 SEAL 9228-330319 STRINGHEAD ASS'Y
8 9014-GP0102 MUFFLE GASKET 9228-334501 CRANKCASE ASS'Y 9110-330301B GEAR HOUSING ASS'Y
9 9211-334501 MUFFLE PLATE 9151-334502F CRANKCASE (STARTER SIDE) 9125-332601 ACCESSORIES
10 9017-334501 COVER (FLYWHEEL SIDE) 9PA-03-08S PIN 9131-330304 COLLAR
11 9SGEB-04-10 SCREW 9151-334501F CRANKCASE (FLYWHEEL SIDE) 9124-330309 SPLINE SLEEVE
12 9017-334502 GASKET 9SGEB-05-20 SCREW 9111-330301 NUT
13 9014-334507 GASKET 9DB-620101 BEARING 9SGKBY10/24-0.625 SCREW
14 9292-334501F CYLINDER 9014-334502 GASKET 9228-330324 GRASS SHIELD ASS'Y
15 9014-334501 GASKET 9157-334501 SEAL 9017-330315 GRASS SHIELD
16 9189-334501 PISTON RING 9CB-32 C RING 9SKKBY10/24-0.5 SCREW
17 9131-334501 CIRCLLP 9169-334501 FLYWHEEL 9250-330301 KIT, KNIFE
18 9115-334501 PISTON PIN 9228-334506 FUEL TANK ASS'Y 6NGB-10/24 NUT
19 9290-334501 PISTON 9SKKBY05-18 SCREW 9228-334510 HANDLE ASS'Y
20 9067-334501 AXLS COVER 9NHC-08 NUT 6SDABB04-12 SCREW
21 9NR-KV9129.8 NEEDLE BEARING 9WFB-06-15 WASHER 9068-332103 HOUSING, HANDLE
22 6221-830301 KEY 9176-GP0101 CLUTCH (WITH SPRING) 9010-332103 WIRE ASS'Y, SWITCH
23 9228-334502 CRANK/ROD ASS'Y 9WWB-08 WAVE PLATE 9010-334501 THROTTLE CABLE
24 9288-334501-CH IGNITION COIL 9214-GP0101 SCREW 9059-332101 HOSE
25 9SGEB-05-20 SCREW 9228-334508
TRANSMISSION SUPPORT ASS'Y
9028-332101 TRIGGER
26 9010-332102 COIL WIRE 9NDB-05 NUT 9024-332102 SPRING
27 9SGKB-05-12.5 SCREW 9SDABM05-25 SCREW 9176-332101 LIBERATE SHAFT
28 9228-334504 STARTER HOUSING ASS'Y 9SKKB-05-16 SCREW 9024-332103 SPRING
29 9228-MD0107 PAWLS ASS'Y 6SDAB-05-08 SCREW 9176-332102 LIBERATE CHUNK
30 9228-334512 FILTER COVER ASS'Y 9WFB-5.64-12 WASHER 6SLABB3.5-10 SCREW
30-1 9134-334501 KNOB 9228-330354 BAG BEHIND 9022-330502 SWITCH
30-2 9017-334505 FILTER COVER 6NGB-05 NUT 9068-332104 HOUSING, HANDLE
31 9183-334501 FILTER 9027-332101 REDUTION 9149-330301-CH HARNESS
32 9SGEB-05-52 SCREW 9228-330355 HANDLE ASS'Y 9076-GP0101 SEAL
33 9228-334507 FILTER ASS'Y 9014-330402 CLAMP
34 9287-334501 CARBURETOR 9068-330312 J HANDLE
35
36
37
38
39
40
41
42
42-1
42-2
42-3
42-4
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
64-1
64-2
64-3
64-4
64-5
64-6
65
66
67
68
69
69-1
69-2
69-3
70
71
71-1
71-2
71-3
71-4
72
72-1
72-2
72-3
72-4
72-5
72-6
72-7
72-8
72-9
72-10
72-11
72-12
72-13
73
74

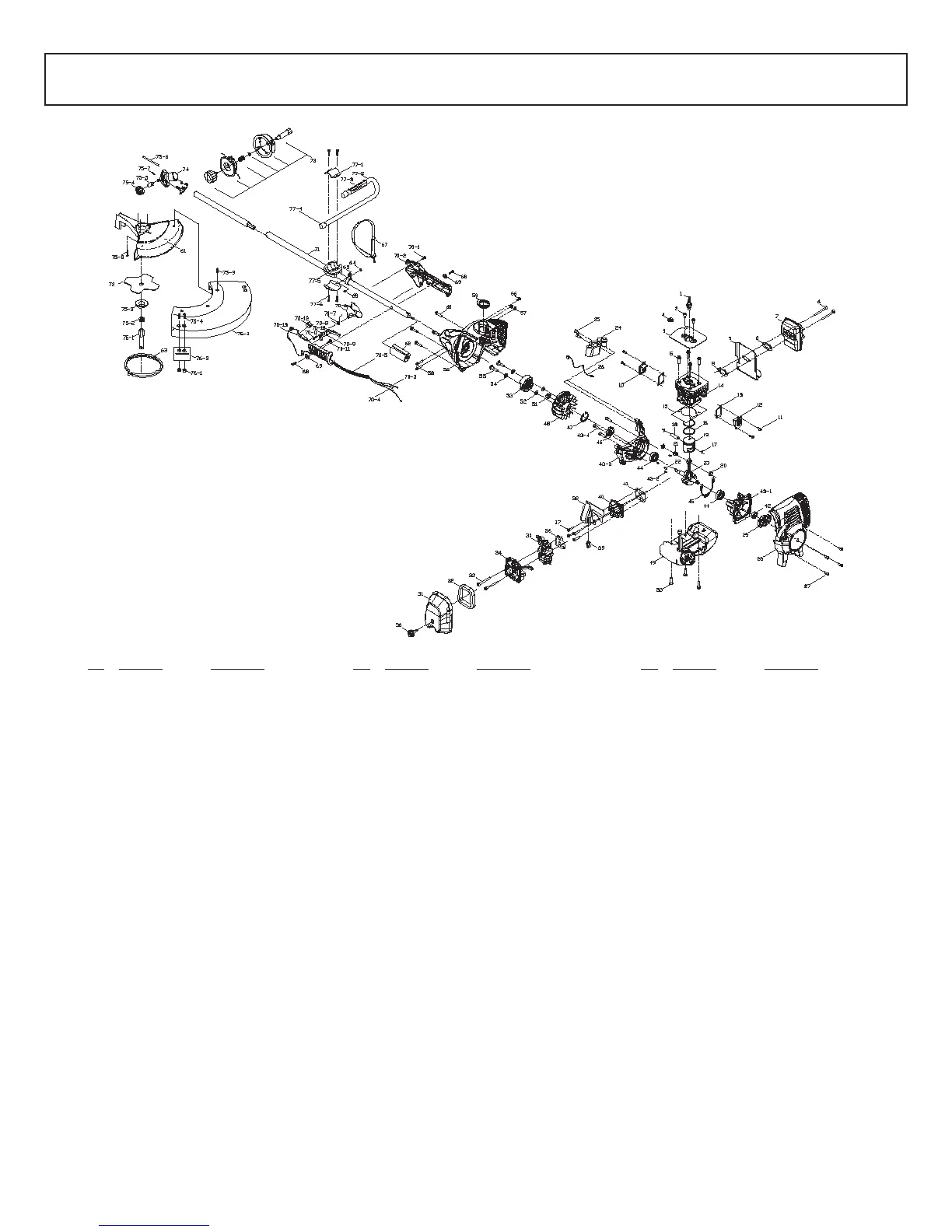

No. Parts No. Description No. Parts No. Description No. Parts No. Description
1 9295-310501 SPARK PLUG 39 9012-334501 GROMMET 70-3 9010-332103 WIRE ASS'Y, SWITCH
2 9SGEB-05-10 SCREW 40 9072-334501 INSULATOR 70-4 9010-334501 THROTTLE CABLE
3 9211-334502 PLATE (SPARK SIDE) 41 9014-334506 INSULATOR GASKET 70-5 9059-332101 HOSE
4 9012-330301 GROMMET 42 9157-332101 SEAL 70-6 9028-332101 TRIGGER
5 9SRCB-05-22 SCREW 43 9228-334501 CRANKCASE ASS'Y 70-7 9024-332102 SPRING
6 9SXMBJ05-50 SCREW 43-1 9151-334502F CRANKCASE (STARTER SIDE) 70-8 9176-332101 LIBERATE SHAFT
7 9228-334503 MUFFLE ASS'Y 43-2 9PA-03-08 PIN 70-9 9024-332103 SPRING
8 9014-GP0102 MUFFLE GASKET 43-3 9151-334501F CRANKCASE (FLYWHEEL SIDE) 70-10 9176-332102 LIBERATE CHUNK
9 9211-334501 MUFFLE PLATE 43-4 9SGEB-05-20 SCREW 70-11 6SLABB3.5-10 SCREW
10 9017-334501 COVER (FLYWHEEL SIDE) 44 9DB-620101 BEARING 70-12 9022-330502 SWITCH
11 9SGEB-04-10 SCREW 45 9014-334502 GASKET 70-13 9068-332104 HOUSING, HANDLE
12 9017-334502 GASKET 46 9157-334501 SEAL 71 9228-332617 HOUSING ASS'Y
13 9014-334507 GASKET 47 9CB-32 C RING 72 9250-330601 BLADE, BRUSH 4-TOOTH
14 9292-334501F CYLINDER 48 9169-334501 FLYWHEEL 73 9228-330319 SRTINGHEAD ASS'Y
15 9014-334501 GASKET 49 9228-334506 FUEL TANK ASS'Y 74 9110-330301 GEAR HOUSING ASS'Y
16 9189-334501 PISTON RING 50 9SKKBY05-18 SCREW 75 9125-332603 ACCESSORIES
17 9131-334501 CIRCLLP 51 9NHC-08 NUT 75-1 9042-330301 SLEEVE
18 9115-334501 PISTON PIN 52 9WFB-06-15 WASHER 75-2 9NAZ-10 NUT
19 9290-334501 PISTON 53 9176-GP0101 CLUTCH (WITH SPRING) 75-3 9111-330601 FLANGE, SPINDLE
20 9067-334501 AXLS COVER 54 9WWB-08 WAVE PLATE 75-4 9131-330304 COLLAR
21 9NR-KV9129.8 NEEDLE BEARING 55 9214-GP0101 SCREW 75-5 9124-330309 SPLINE SLEEVE
22 6221-830301 KEY 56 9228-334508 TRANSMISSION SUPPORT ASS'Y 75-6 9111-330301 STICK
23 9228-334502 CRANK/ROD ASS'Y 57 9NDB-05 NUT 75-7 9PB-1.4-20 PIN
24 9288-334501-CH IGNITION COIL 58 9SDABM05-25 SCREW 75-8 9SKKBY10/24-0.5 SCREW
25 9SRCB-05-20 SCREW 59 9012-334502 GROMMET 75-9 9SKKB-06-15 SCREW
26 9010-332102 COIL WIRE 60 9SKKB-05-16 SCREW 76 9228-330614 COVER ASS'Y
27 9SGKB-05-12.5 SCREW 61 9017-330301 SHIELD, BLADE 76-1 6NGB-10/24 NUT
28 9228-334504 STARTER HOUSING ASS'Y 62 9027-332101 EDUTION 76-2 9017-330310 COVER
29 9228-MD0107 PAWLS ASS'Y 63 9015-330601 GUARD, CUTTING BLADE 76-3 9250-330301 KIT, KNIFE
30 9134-334501 KNOB 64 6NGB-05 NUT 76-4 9SKKBY10/24-0.62 SCREW
31 9017-334505 FILTER COVER 65 9131-330305 HARNESS RING 77 9228-330345 HANDLE ASS'Y
32 9183-334501 FILTER 66 9SGKBY10/24-0.625 SCREW 77-1 9014-330401 CLAMP
33 9SGEB-05-52 SCREW 67 9149-330301-CH HARNESS 77-2 9068-330309 J HANDLE
34 9228-334507 FILTER ASS'Y 68 6SDAB-05-08 SCREW 77-3 9068-330303 HANDLE
35 9287-334501 CARBURETOR 69 9WFB-5.64-12 WASHER 77-4 9070-330301 PLUG
36 9014-334505 CARBURETOR GASKET 70 9228-334510 HANDLE ASS'Y 77-5 9072-330401 CENTERPLECE
37 9SKKB-05-19 SCREW 70-1 6SDABB04-12 SCREW 77-6 9125-330301 PARTS BAG
38 9211-334503 PLATE 70-2 9068-332103 HOUSING, HANDLE
